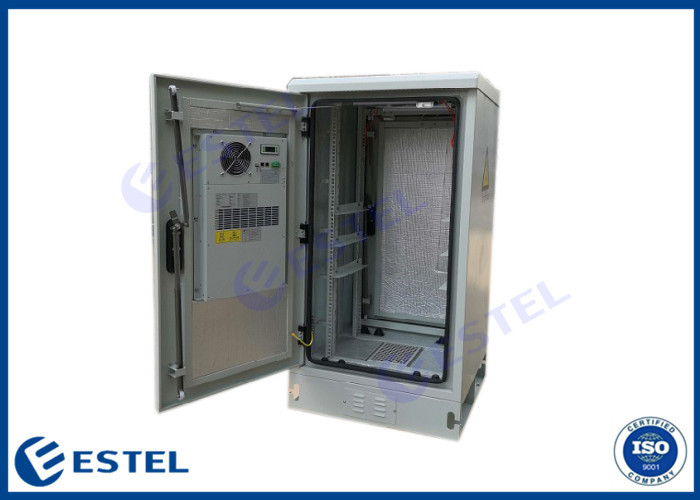

ESTEL 19Inch Rack 750mm depth Outdoor Telecom Cabinet

ESTEL 19Inch Rack 750mm depth Outdoor Telecom Cabinet

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 121757517050001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Get Best Price Contact Now

Detail Information

Dimension: H×W×D 750×750×1750mm Compartments: 1 Compartment
Door: One Front Door Protection Level: IP55
Cooling System: Air Conditioner Package: Wooden Case
High Light:

750mm depth Outdoor Telecom Cabinet

,

19Inch Rack Outdoor Telecom Cabinet

,

750mm depth weatherproof data cabinet

Product Description



Air Conditioner Cooling Outdoor Telecom Cabinet Galvanized Steel Includes 19 Inch Rack



1. Cabinet Summary



The outdoor telecom cabinet refers to a cabinet made of galvanized steel, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.



2.Cabinet Advantage



2.1 Short construction period, less land occupation, broader application and lower construction cost

2.2 High integration, compact structure, easy installation and migration on later stage

2.3 High-performance cooling solution,include air conditioner and fan.

2.4 Anti-theft three-point outdoor cabinet lock

2.5 Professional outdoor anti-corrosion powder coating, strong weather resistance, waterproof & dustproof.



3. Cabinet Parameters



Configuration Item Technical Parameter
Cabinet Body Size

External Size

W×D×H: 750×750mm×1750mm

Component The whole cabinet includes three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
Material Galvanized steel, double wall with heat insulation.
Structure
  • One front door , hidden zinc alloy hinge.
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock(support padlock).
  • Door stopper is installed on the inside of the cabinet door.
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof.
  • Include 19“ rack
  • Cable inlets at the bottom of cabinet.
  • Grounding protection: copper bar.
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Anti-corrosion outdoor powder coating RAL7035
Ingress Protection IP55
Working Temperature -40°C~+85°C
Cooling Method



Air Conditioner



Cooling capacity: 1000W; Power Supply: DC48V; Installed on front door



4.Cabinet Cooling System



The cabinet has one 1000W cooling capacity installed on the fornt door



ESTEL 19Inch Rack 750mm depth Outdoor Telecom Cabinet 0



5.Cabinet Detailes



5.1 Cabinet Material

The cabinet is made of galvanized steel, single plate, thickness of plate is 1.2mm, with 20mm PEF heat insulation. The cabinet is assembled type.

5.2 Cabinet Door


The cabinet door uses embedded structure.



The door opening angle is larger than 110°and the door limit device can limit the opening angle.



The cabinet door lock is theftproof three point lock, supporting padlock.



ESTEL 19Inch Rack 750mm depth Outdoor Telecom Cabinet 1



6.Cabinet Package



Wooden case package.



ESTEL 19Inch Rack 750mm depth Outdoor Telecom Cabinet 2
