ESTEL ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | E142011000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 2,000 sets per month |
|
Detail Information |
|||
| Power Supply: | 220VAC,50Hz | Cooling Capacity(L35/L35): | 1000W |
|---|---|---|---|
| Weight: | 24kg ,without Pacakge | Protection Level: | IP55 |
| Refrigerant: | R134a | Package: | Wooden Case |
| High Light: | ISO9001 Cooling Capacity Outdoor Cabinet Air Conditioner,ESTEL Outdoor Cabinet Air Conditioner,ESTEL electrical cabinet air conditioning units |
||
Product Description

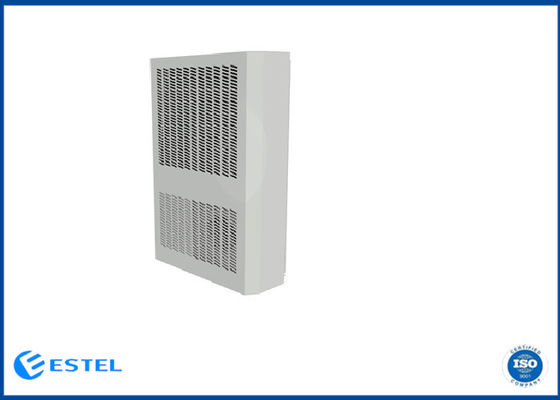

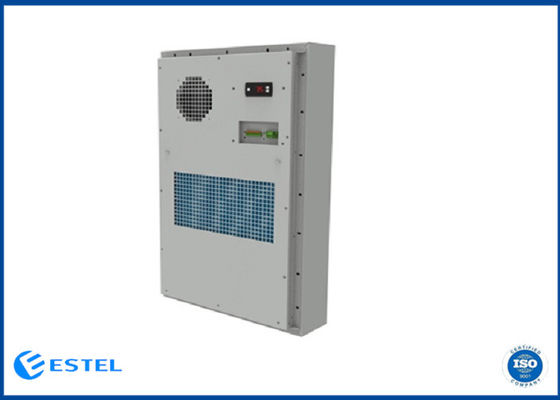

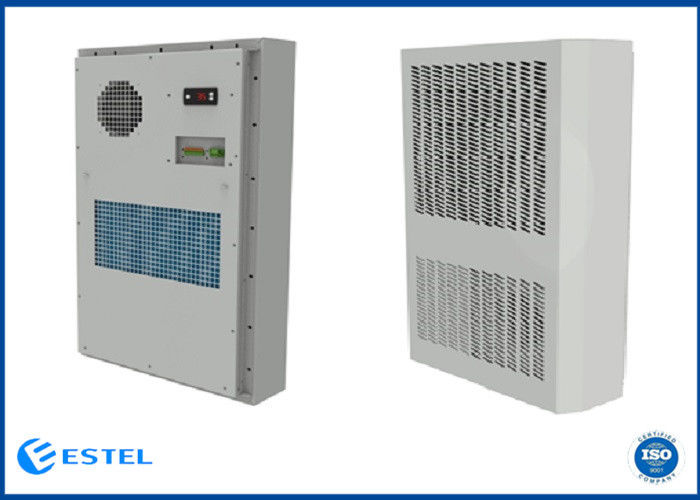

IP55 1000W Cooling Capacity Air Conditioner For Indoor Or Outdoor Cabinet
1. Product Instruction
- This kiosk air conditioner is a kind of refrigeration product self-developed for cabinet.
- This kiosk air conditioner is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely.
- This kiosk air conditioner has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.
2.Technical Parameters
| Type | Parameters |
|
Body outline dimension (width*height*depth ) |
750*450*200mm |
|
Outline dimension including flange(width*height*depth ) |
784*484*200mm |
| Weight | 24 kg |
| Mounting method | Door mounted |
| Working temperature | -40℃ to 55 ℃ |
| Input voltage | 220 VAC±15% ～/50Hz |
| Cooling capacity L35/L35 | 1000 W |
|
Rated power consumption (L35/L35) |
400W |
| Rated Refrigerating current (L35/L35) | 1.8A |
| Heating capacity | / |
| Airflow | 320 m3/h |
| IP grade | IP55 |
| Refrigerant | R134a |
| Noise | 65 dB(A) |
3. Dimensions
Outline dimension including flange(width*height*depth ): 784*484*200mm
Body outline dimension (width*height*depth ):750*450*200mm
4. Installation Pictures
5. Product Package
Using wooden case for packing the kiosk air conditioner.
