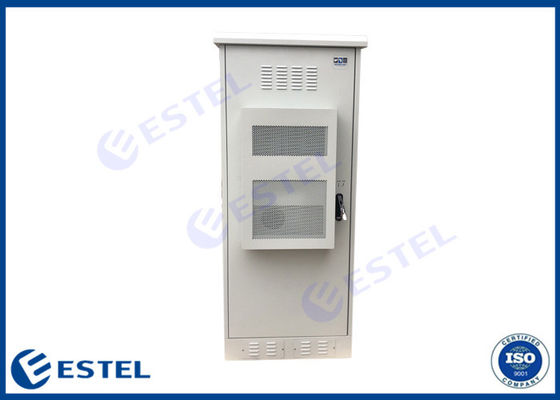

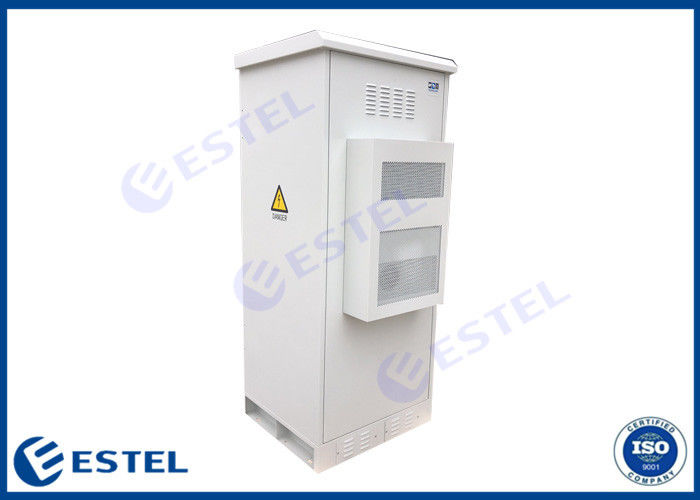

Stainless Steel ESTEL 750mm Height External Telecoms Cabinet
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | 161757020050001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 750×700×2000mm | Compartments: | 1 Compartment |
|---|---|---|---|
| Door: | One Front Door | Protection Level: | IP55 |
| Cooling System: | Air Conditioner And Fans | Package: | Wooden Case |
| High Light: | 750mm height External Telecoms Cabinet,ESTEL External Telecoms Cabinet,ESTEL telecom street cabinets |
||
Product Description
IP55 Stainless Steel Air Conditioner Cooling Outdoor Telecom Enclosure With Heat Insulation
1.Enclosure Description
This series outdoor enclosure is made of stainless steel .it includes 19 inch rack for mounting the equipments,such as power distribution unit , monitor, DDF and other electrical devices.The cooling system adopts one air conditioner and two fans.The outdoor enclosure is adapt to various outdoor insite to meet the requirement of communication system,power system and etc.
2.Enclosure Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 2000×750×700mm |
| Layout | 1 compartment | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | 304 Stainless Steel, single wall with insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3.Enclosure Dimension
4. Cable Inlet
The cable entry points are situated behind the cabinet, 6 top and 4 bottom and easy upgradeable.
5. Enclosure Cooling
There is one 2000W air conditioner installed on the front door.
There are 2 fans installed on the front door.
6. Door Lock
The door uses 3 point anti-theft cabinet lock to keep the cabinet high level security.
7.Delivery Time
Generally it will take about 20 days to produce the cabinet.
