TLC 600mm Width Weatherproof Electrical Enclosures
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | 132060921050008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 600×900×2100mm | Compartments: | 1 Compartment |
|---|---|---|---|
| Door: | One Front Door And One Back Door | Protection Level: | IP55 |
| Cooling System: | Air Conditioner And Fans | Package: | Wooden Case |
| High Light: | 600mm width Weatherproof Electrical Enclosures,TLC Weatherproof Electrical Enclosures,600mm width weatherproof enclosure box |
||
Product Description

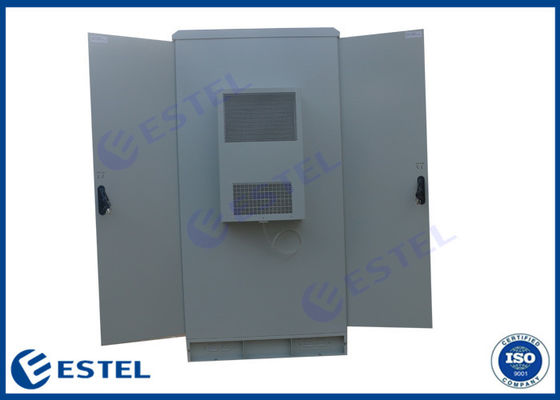

IP55 Double Wall Galvanized Steel Outdoor Telecom Cabinet With Air Cooler And Four Cooling Fans
1. Cabinet Application
This series outdoor telecom cabinet is made of galvaznied steel, double wall with heat insulation.The cooling of the system are one air conditioner and 4 fans. It is mainly used in wireless communication base station, such as 4G system, communication integrated service, access/transmission switching station, emergency communication/transmission, etc.It has front door and back door for easily access.
2. Cabinet Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Size |
External Size W×D×H: 600mm×900mm×2100mm |
| Component | The whole cabinet includes three parts: the top cover, the cabinet body and the base. The installation method is floor mount. | |
| Material | Galvanized steel,double wall with heat insulation. | |
| Structure |
|
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Anti-corrosion outdoor powder coating RAL7035 | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+85°C | |
| Cooling System | Fan | DC48V,installed on the front door |
| Package | Package | Wooden case with pallets |
3. Cabinet Key Features
(1) Galvanized Steel, double wall with insulation.
(2) Cabinet cooling system: air conditioner 4 fans.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5)Protection grade :IP55.
(6)Security design: Embedded doors, embedded hinges, 3-point security locks.
4. Cabinet Internal Pictures
5. Cabinet Instruction
There is one door sensor installed inside of the cabinet
There is one led installed on the top of the cabinet
There are cable inlets at the bottom of the cabinet
6.Cabinet Production
