Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET60100205-EQ-3D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with pallet
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel Color: RAL7035 GREY
Surface Finish: Outdoor Powder Polyester Coating Protection Level: IP55
External Size: W600*D1000*H2050mm Application: Telecommunication
Structure: Single Wall
High Light:

RAL7035 Telecommunication Enclosure

,

42U Telecommunication Enclosure

,

42U outdoor electronics enclosure

Product Description

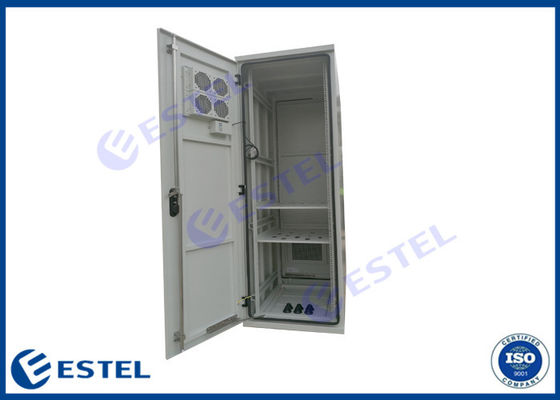

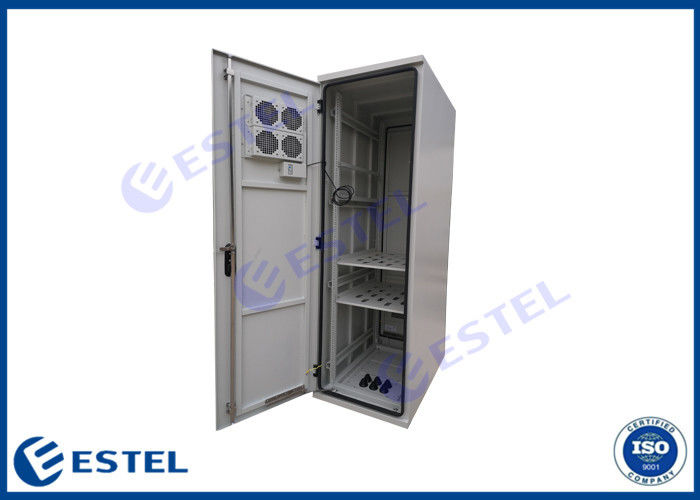

Front Back Door Fan Cooling 42U 19 Inch Outdoor Telecom Enclosure Single Wall Galvanized Steel Powder Coating



Summary



This outdoor communication cabinet is made of metal material, and does not allow unauthorized operators to access. Communication equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.



The cabinet is mainly used in IDC data room, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.





Features



● Simple structure, convenient operation and installation, exquisite workmanship, precise size, economical and practical.

● High integration, compact structure, easy installation and migration on later stage.

● High-performance cooling solution.

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device, each lock has unique key.

● Outdoor anti-corrosion polyester powder coating

● Including castor wheel and adjustable feet.





Technics



The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.





Specification



Configuration Item Technical Parameter
Cabinet Body Model ET60100205-EQ-3D
External Size W×D×H: 600mm×1000mm×2055mm
Component The whole cabinet is composed of three parts: the top cover, the cabinet body and the castor. The installation method is floor mount
Material Galvanized steel, single wall
Structure

(1) One front door and one rear door, hidden zinc alloy hinge

(2) Special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device, IP65 protection grade, each lock has unique key

(3) Door stopper / wind lock is installed on the inside of the cabinet door

(4) Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof

(5) Include standard 19“ rack inside the cabinet, high universality

(6) Including 2 equipment trays

(7) Equipped with cable manager

(8) Cable inlets at the bottom of cabinet

(9) Including castor wheel and adjustable feet.

Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Polyester anti-corrosion powder coating light grey RAL 7035
Ingress Protection IP55
Working Temperature -40°C~+75°C
Cooling Method Air conditioner Optional
Heat exchanger Optional
Fan

(1) Including metal IP55 AC220V fan and metal filter, 4 pieces of fan, and 1 temperature controller. And including 2 extended outer cover for ventilation part.

(2) Including terminal block, DIN rail and junction box for wiring







2D Drawing



                                                                                                  Single Wall 42U RAL7035 Telecommunication Enclosure 0



Single Wall 42U RAL7035 Telecommunication Enclosure 1

                                                                                                      Single Wall 42U RAL7035 Telecommunication Enclosure 2

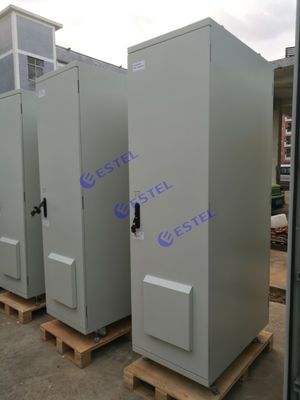

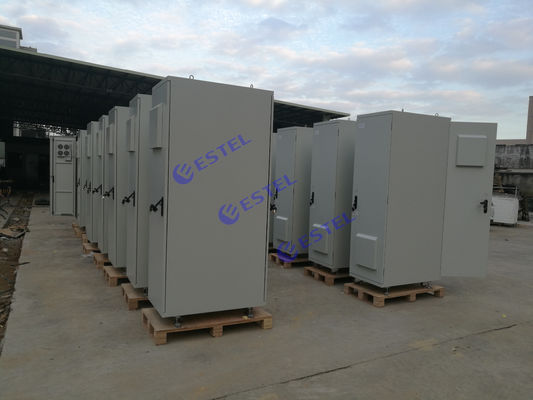

Cabinet Pictures

Single Wall 42U RAL7035 Telecommunication Enclosure 3

Single Wall 42U RAL7035 Telecommunication Enclosure 4









Details Pictures



Single Wall 42U RAL7035 Telecommunication Enclosure 5

Single Wall 42U RAL7035 Telecommunication Enclosure 6
