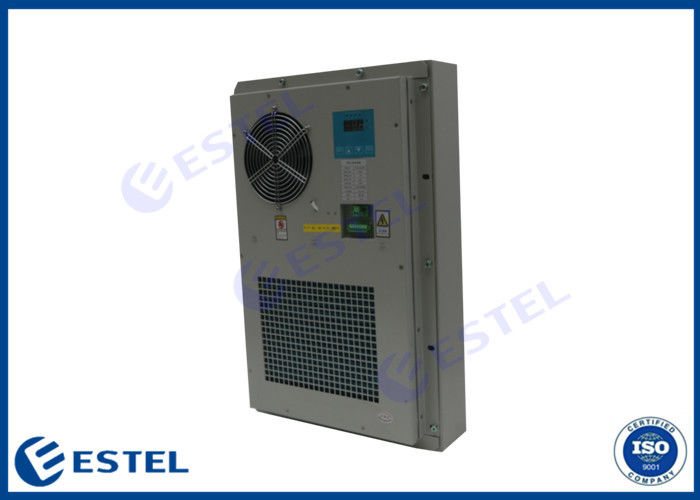

Portable 50W/K 500W Enclosure Heat Exchanger
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC |
| Model Number: | HE06-50SEH/01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton + foam + wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, etc |
| Supply Ability: | 12,000 sets per month |
|
Detail Information |
|||
| Rated Heating Capacity: | 300/500W (optional) | Rated Input Voltage: | DC48V |
|---|---|---|---|
| Rated Input Current: | 1.8A | Rated Input Power: | 86W |
| Heat Exchange Capacity: | 50W/K | Noise: | ≤62dB |
| High Light: | 500W Enclosure Heat Exchanger,50W/K Enclosure Heat Exchanger,50W/K small air to air heat exchanger |
||
Product Description
Small Portable Industrial Air To Air Enclosure Heat Exchanger 50W/K For Outdoor Cabinets
1. Specifications
(1) Technical Parameters
| Model No. | HE06-50SEH/01 (CW012) | |
| Environmental Performance | working environmental temperature | -20°C ~ 55°C |
| storage working temperature | -40°C ~ 70°C | |
| working humidity | ≤95% | |
| Thermal Performance | rated heat exchange capacity | 50W/K |
| rated heating capacity | 300/500W (optional) | |
| Electrical Performance | rated input current | 1.8A |
| rated input power | 86W | |
| rated input voltage |  DC48V |
|
| Safety | MTBF 70000h | |
| Noise | ≤62dB | |
Dimension Diagram: 400×152×602 mm (W×D×H)
2. Description
The HE06-50SEH/01 Mixed Working Fluid Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.
3. Application
The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.
4. Features
- Strong adaptability
- High intelligence
- High precision
- High reliability
- The heat exchange capacity can be set according to need
- Low noise
- Low energy consumption
- With 4 way switching value detection
- With 1 way room air conditioner control
- Wide input voltage range: DC36 - 65V
- With dry contact alarm output
- Dust proof and water proof
5. Electrical Wiring Diagram
Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)
6. System Principle Diagram
Cabinet heat exchanger is a device that utilizes the natural cool resources to exchange heat between hot inside and cool outside of cabinet with limited power consumption.

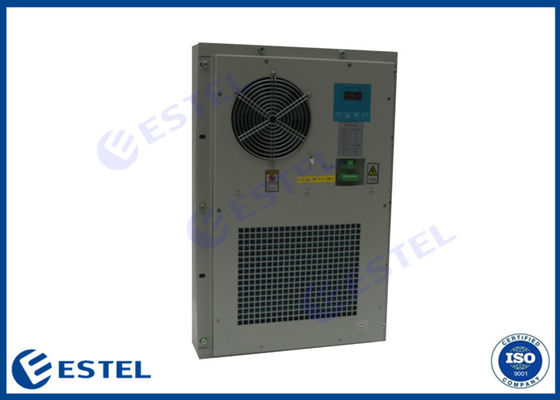

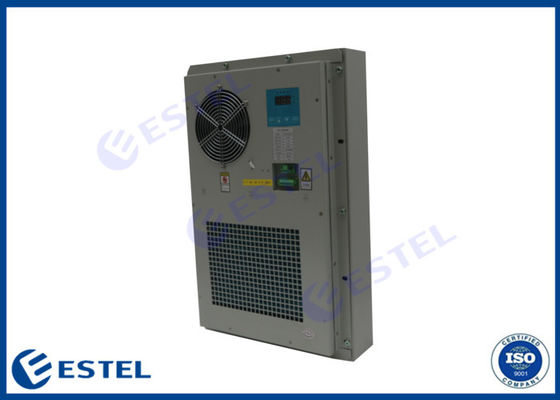

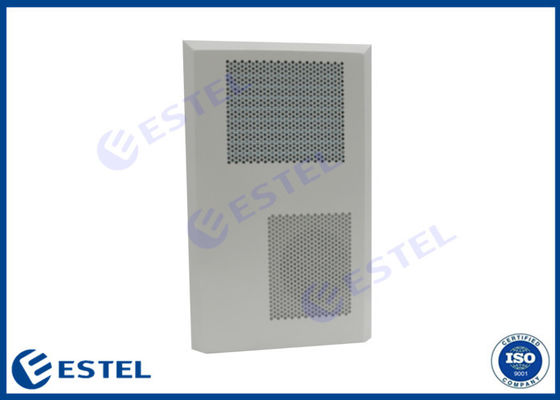

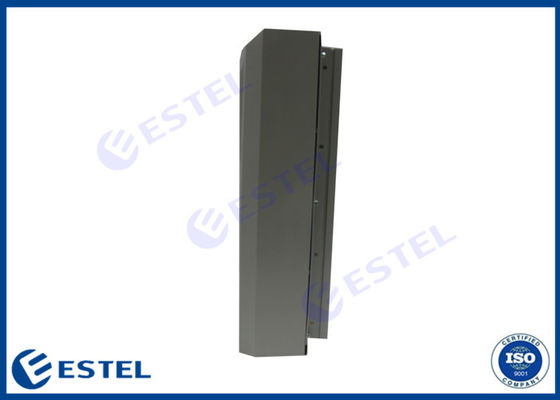

7. Product Picture
8. Product Process
