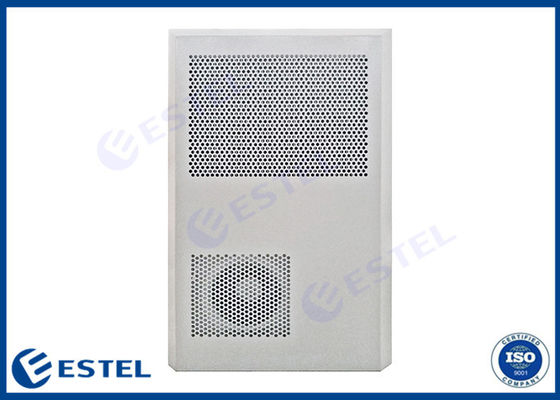

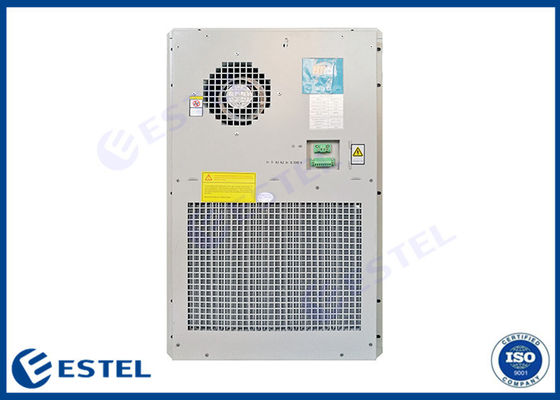

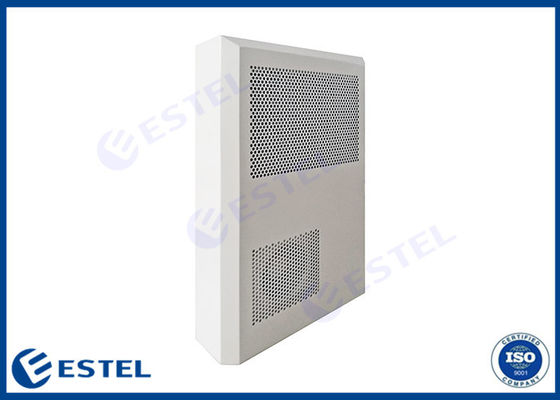

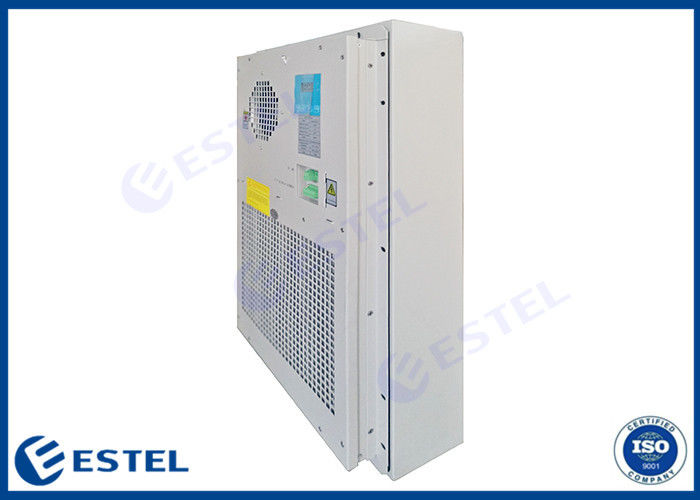

IP55 100W/K Air Cooled Heat Exchanger For Telecom Cabinet

IP55 100W/K Air Cooled Heat Exchanger For Telecom Cabinet

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE,
Model Number: HE06-100SEH/01(AC220V Type)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton, wooden case
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, Paypal
Get Best Price Contact Now

Detail Information

Heat Exchange Capacity: 100W/K Rated Input Power: 160W
Rated Input Voltage: AC220V/50Hz Rated Input Current: 0.8A
Protection Grade: IP55 Noise: ≤65dB
MTBF: 70000 Hours Weight: 18kg
High Light:

100W/K Air Cooled Heat Exchanger

,

IP55 Air Cooled Heat Exchanger

,

100W/K small air to air heat exchanger

Product Description





AC Serials IP55 Enclosure Heat Exchanger 100W/K Air To Air Heat Pipe HEX For Outdoor Telecom Cabinet









1. Technical Data



Model No.

HE06-100SEH/01(AC220V Type)

Noise

≤65dB

IP Grade

IP55

Weight

18kg

Environmental Performance

working environmental temperature

-20°C ~ 55°C

storage working temperature

-40°C ~ 70°C

working humidity

≤95%

Thermal Performance

rated heat exchange capacity

100W/K

rated heating capacity

300/500W (optional)

Electrical Performance

rated input current

0.8A

rated input power

160W

rated input voltage

AC220V/50Hz

Reliability

MTBF

70000 hours





2. Application Range



This heat exchanger is designed to install on the communication or network cabinets.

Use on the inside and outside the thermal cycling system form the effective separation of heat exchange system, realize to accumulation quantity of heat inside the cabinet.



The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.





3. Size Drawing: 430×176×700 mm (W×D×H)



IP55 100W/K Air Cooled Heat Exchanger For Telecom Cabinet 0






4. Advantage



(1) Enclosed air circuit cooling system design, which make the inside air and outside air isolated and effectively avoid contamination from outside.

(2) Avoid dew formation from too cold.

(3) Compact structure and convenient installation & maintenance.

(4) It can be remote monitored.

(5) The main components are international brand which greatly improves the reliability of the system.

(6) Strong adaptability
(7) High intelligence
(8) High precision
(9) High reliability
(10) The heat exchange capacity can be set according to need
(11) Low noise
(12) Low energy consumption
(13) With 4 way switching value detection
(14) With 1 way room air conditioner control
(15) Wide input voltage range: AC220V±20%
(16) With dry contact alarm output
(17) Dust proof and water proof



5. System Principle Diagram



IP55 100W/K Air Cooled Heat Exchanger For Telecom Cabinet 1





6. Product Process



IP55 100W/K Air Cooled Heat Exchanger For Telecom Cabinet 2









7. Product Picture





IP55 100W/K Air Cooled Heat Exchanger For Telecom Cabinet 3
