40U IP65 Outdoor Telecom Enclosure With Frequency Conversion Air Conditioner Cooling
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET100100200-UP-2D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Material: | Stainless Steel, Single Wall With Heat Insulation | External Size: | W×D×H 1000×1000×2000mm |
|---|---|---|---|
| Type: | Outdoor Cabinet | Protection Level: | IP65 |
| 19 Inch Space: | 40U | Coating: | Outdoor Powder Coating |
| Maintenance Mode: | Front Door And Back Door Access | Cooling: | DC48V Air Conditioner |
| High Light: | IP65 Outdoor Telecom Enclosure,40U Outdoor Telecom Enclosure,40U telecommunication enclosure |
||
Product Description
40U IP65 Outdoor Telecom Enclosure With Frequency Conversion Air Conditioner Cooling
IP65 Stainless Steel Outdoor Telecom Enclosure With Frequency Conversion Air Conditioner Cooling
1. Applications
Our outdoor telecom enclosure is used in many areas, such as below:
Telecommunication
Power
lndustry
Radio and television
Bank
Education
Security monitoring
Automatic system
Research institute
2. Outdoor telecom enclosure brief
Outdoor telecom enclosure ET100100200-UP-2D includes 19 inch rack and slideable battery tray, user can install their 19” equipment and power system and battery.This cabinet use high anti-rust stainless steel material. This cabinet has one front door and one rear door, it is very convenient to install and maintain. DC48V frequency conversion air conditioner is more power saving.
3. Technical parameter of outdoor enclosure
| Model | ET100100200-UP-2D |
| External Size | W×D×H 1000×1000×2000mm |
| Equipment Install Method | 40U 19” rack |
| Door | Totally 2 doors: 1 front door and 1 rear door |
| Lock | Anti-theft three point lock, specially for outdoor cabinet(support padlock) |
| Material |
Stainless steel, single wall with heat insulation Air conditioner's outer cover and all screws&nut are stainless steel |
| Cabinet Installation method | Inluding base, floor mount |
| Cooling | DC48V 1500W |
| Cable Inlet | On the bottom |
| Lifting Ear | 4 ears on the cabinet base |
| Color | Grey, RAL7035 |
| Surface Treatment | Anti-corrosion outdoor powder coating |
| Earthing | Grounding copper bar |
| Sensors | 1 temperature sensor and 1 door sensor |
| Power Distribution Unit |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*5; DC Output: 63A/1P*5; Height: 4U |
| Lighting | DC48V LED lamp with lamp switch |
| Working Temperature | -40°C～+75°C |
| Ingress Protection | IP65 |
| Relative Humidity | 5% ~ 100% |
| Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Feature
- IP grade: IP65, dustproof, water proof
- Standard 19 inch rack.
- Doors secured with steel dead locking system lock (support PADLOCK)
- It is installed cement base
- Cable entry on the bottom with high sealing
- High reliability, maintenance free, fast assembly, suitable for harsh outdoor environment
- High integration, less land occupation, short construction period, effectively reduce the construction cost
- Perfect thermal design, efficient energy saving and emission reduction, effectively reduce operating costs
- It supports rapid assembly and assembly, and is suitable for multi scene installation on the top of mountain and building
5. Advantage
- The cabinet structure have earthquake resistance function
- Outdoor cabinet is compact and durable, space layout is reasonable, greatly reducing the construction cost
- Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
- Frequency conversion air conditioning, more energy saving
- Intelligent temperature control
- High and low temperature protection
- Slideable tray, convenient for battery maintenance
- Stainless steel has better corrosion resistanc

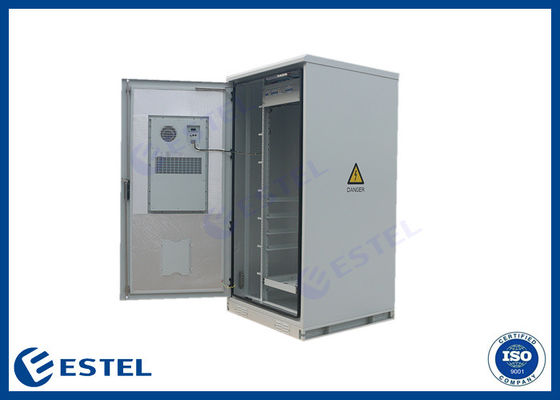

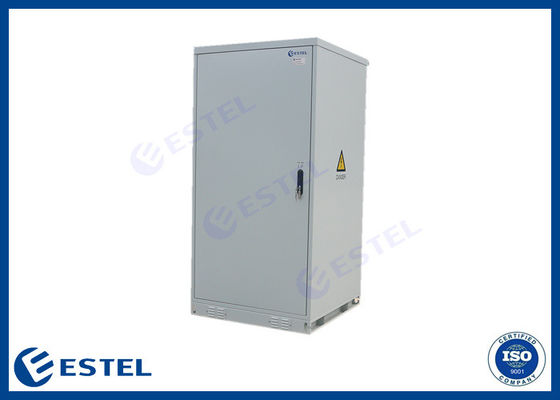

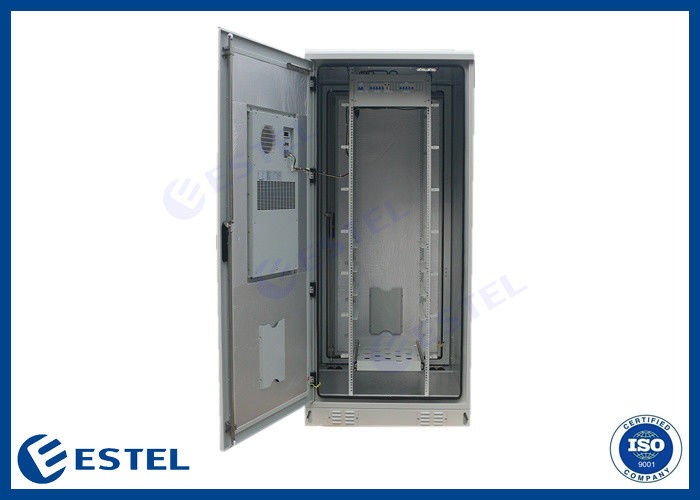

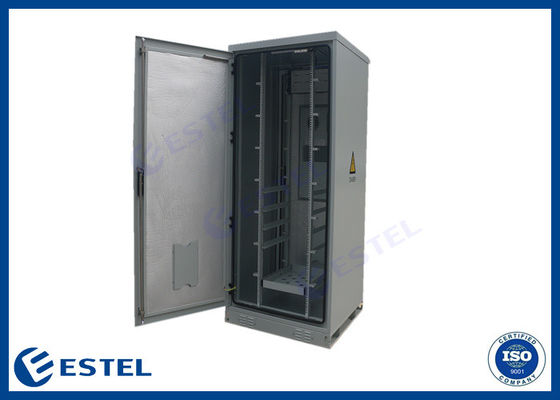

6. Cabinet details display
7. Package and Loading container
Cabinet package use free fumigation plywood which suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
