Two Walls IP55 Outdoor Electronics Cabinet Electrical Enclosures Anti Theft
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | EA7575175-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 5,000 sets per month |
|
Detail Information |
|||
| LOCK: | Anti-theft Three Point Lock | Dustproof: | Yes |
|---|---|---|---|
| Sunproof: | Yes | Rainproof: | Yes |
| Outdoor Environment: | Suitable | Layout: | One Compartment |
| High Light: | IP55 Outdoor Electronics Cabinet,IP55 Electrical Enclosures,Anti Theft Outdoor Electronics Cabinet |
||
Product Description
Galvanized Steel Two Walls IP 55 Electrical Enclosures Anti-Theft Three Point Lock
1. Description Of IP 55 Electrical Enclosures
This is an ingress protection rating which is used in determining the degree of efficiency the enclosure to seal water and dust. IP 55 to be specific, offers protection for the enclosed electrical components from dust and other wide-ranging non-corrosive materials. It also describes protection from a voltage as well as moving parts in case a user comes into contact with the enclosure. Moreover, this IP rating describes protection from water which also includes water sprayed from a nozzle onto the cabinet. IP 55 are suitable standards that the enclosure has to meet because they determine the efficiency and safety.
2. Selling points and Feature Of IP 55 Electrical Enclosures
● Anti-theft three point lock
●The cabinet with IP55 protection level is dustproof, sunproof, and rainproof, especially suitable for the outdoor environment.
● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor. Environmental monitoring system provides alarm.
● -48VDC LED light is switched on during the door being opened
● Custom made power distribution unit
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension W×D×H 750×750×1750mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 1500W Air Conditioner and 2 fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension W×D×H 750×750×1750mm (2) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (3) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm |
| 2 | Air Conditioner | 1 | Set | 1500W Air Conditioner, AC220V power supply |
| 3 | 110V To 220V Transformer | 1 | Set | Used for air conditioner input |
| 4 | Fans | 2 | PC | DC48V |
| 5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof 2 x 63A/1P 2x32A/1P 2x16A/1P 2x10A/1P 2x5A/1P Height: 3U |
| 6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 90A, 4800W; Model: GPE4890J |
| 7 | Package | 1 | Set | Wooden Case |
| 8 | Sensor | Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.) |
5. Enclosure Cooling
1 Set 1500W Air Conditioner, AC220V power supply
2 DC48V fans.
6. Cabinet Structure
(1) External Dimension W×D×H 750×750×1750mm
(2) One compartment;
(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm

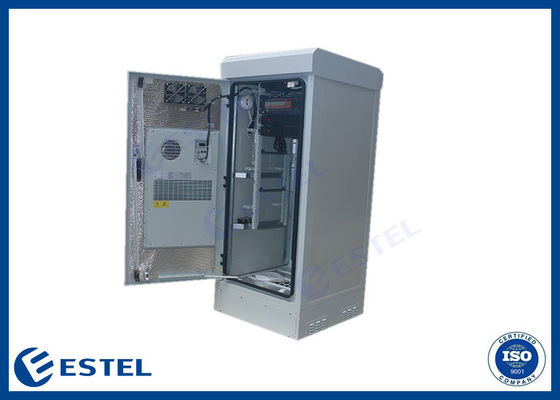

7. Cabinet Picture:
8. Rectifier System
Electric Connection Instruction
Chassis connects with external electric through system interface board. As shown in figure below:
Wiring terminal Connection Instruction:
SPD: lightning arrester; L: live line; N: neutral line; transfer switch: lithium battery and lead acid battery
transfer switch,switch to I - lithium battery; O - lead acid battery;
Signal input output terminal definition as the right:
FU1: battery fuse; LOADF: load fuse; 12V-12V power supply; SPD: lightning arrester signal;1-4:
dry contact output.
Output terminal definition as the right:
BAT-: battery cathode; LOAD2-: LVBD cathode; LOAD1-: LVLD cathode; +: Load and battery cathode
