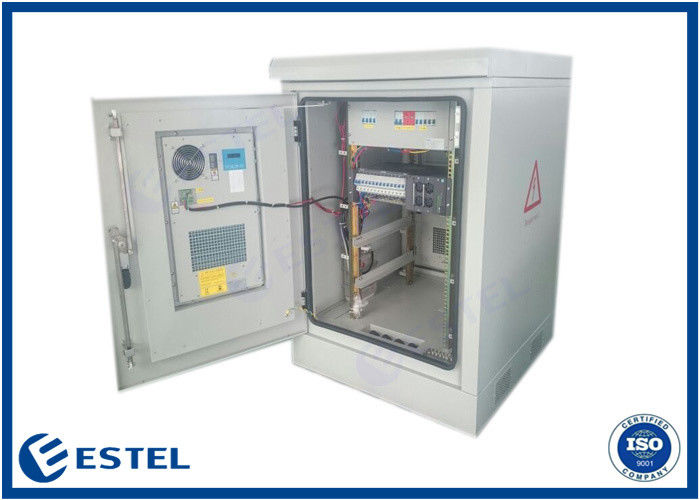

IP55 Waterproof Outdoor Network Cabinet 1200*900*900mm One Compartment

IP55 Waterproof Outdoor Network Cabinet 1200*900*900mm One Compartment

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET9090120-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

Protection Level: IP55 Cooling System: Air Conditioner(Fans,or Heat Exchange)
Equipment Installation Method: 19” Standard Rack Temperature Control: 500W Air Conditioner And Fans
Lighting: 48V LED Lamp Working Temperature: -40°C ~ +55°C
High Light:

Waterproof Outdoor Network Cabinet

,

IP55 Outdoor Network Cabinet

,

IP55 waterproof network cabinet

Product Description

IP55 Waterproof Outdoor Network Cabinet 1200*900*900mm One Compartment



1. Description Of Outdoor Network Cabinet
This Outdoor Network Enclosure is IP55 protected. It secures protection of electrical components from corrosive materials and dust. Our Network Cabinet guarantees high efficiency safety and reliability. Our Network Cabinet comes with different sizes and styles. We also do modification and customization according to your requirements.



2. Selling points and Feature Of Outdoor Network Enclosure

- Material: galvanized steel or as customer's requirements
- Cooling System: Air conditioner(Fans,or Heat exchange)
- Protection Level: IP55 ,Waterproof,dust proof.
- Sealed by import seal belt, waterproof design realize the efficient protection
- Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.



3. Technical Parameters

Item Type Technical Parameter
Structure Dimension

External Dimension H*W*D 1200*900*900mm

Internal Dimension H*W*D 900*800*800mm

Layout One compartment
Equipment Installation Method 19” standard rack
Door With one front door and one back door, totally two doors
Material Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling 500W Air Conditioner and fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%



4. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension H*W*D 1200*900*900mm ;

Internal Dimension H*W*D 900*800*800mm

(2) One compartment;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

2 Air Conditioner 1 Set 600W Air Conditioner, AC220V power supply
3 110V To 220V Transformer 1 Set Used for air conditioner input
4 Fans 2 PC DC48V
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

Height: 4U

6 Embedded Telecom Power System (UPS) 1 Set

DC48V, 60A, 3210W; Model:

1U-4860, Height: 1U.

7 Package 1 Set Wooden Case



5. Enclosure Cooling

One set Air conditioner and fans.



6. Cabinet Structure

(1) External Dimension H*W*D 1200*900*900mm ;

Internal Dimension H*W*D 900*800*800mm

(2) One compartment;

(3) With one front door and one back door, totally two doors

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.



7. Cabinet Layout Diagram:

IP55 Waterproof Outdoor Network Cabinet 1200*900*900mm One Compartment 0



8. Air conditioner

IP55 Waterproof Outdoor Network Cabinet 1200*900*900mm One Compartment 1



Installation and Electrical Wiring Instruction

8.1 Preparation Before Installation

(1) Prepare the tools in the following table “Installation And Maintenance Tools”.

(2) Check the air vents to ensure there’s no unnecessary items on the vents.

8.2 Installation And Maintenance Tools

Tools Name Function
Cross Screwdriver Fix air conditioner.
Small Slotted Screwdriver Wire power supply port on the panel
Wire Stripper Wire stripping
Wire Crimper Crimp power supply for equipment
Multimeter Check the wiring to ensure it’s correctly connected and without short circuit.
Clamp Meter Test operating current of the air conditioner

8.3 Installation Steps

Make sure the air conditioner is not connected with power.

Fix the air conditioner according to the Dimension Diagram.

Strip the insulation of the power supply wire, and crimp the terminal.

Connect the wires according to the Electrical Wring Diagram.

After finishing the wiring, use the multimeter to check if the electric circuit is normal. Then connect the air conditioner with power supply, and use clamp meter to test the operating current.

Note: Make sure to disconnect all the power supply to the air conditioner before installation. Choose proper wire diameter and test operating current according to the technical parameters of the air conditioner.
