Small Wall Mounted Outdoor Telecom Cabinet 450mm Width 750mm Hight

Small Wall Mounted Outdoor Telecom Cabinet 450mm Width 750mm Hight

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET454575-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

Dimension Outer: 450mm×450mm×750mm (W×D×H) Dimension Inner: 6U× 400×19” (W×D×H)
Heat Insulation: 20mm Air Pressure: 70kPa ~ 106kPa
Cabinet Load Bearing: ≥600kg Humidity: ≤95% (at + 40°C)
High Light:

Wall Mounted Outdoor Telecom Cabinet

,

450mm Width Outdoor Telecom Cabinet

,

450mm Width Outdoor Equipment Cabinet

Product Description



Small Wall Mounted Outdoor Telecom Cabinet 450mm Width 750mm Hight



1. Description Of Outdoor Telecom Cabinet
We design and manufacture telecom cabinets that meet the standards for safety, performance and quality. Depending on your location, we also ensure our products meet all your local regulations.Our outdoor telecom cabinets are suitable for installation in the toughest climates. All models provide secure spaces you can use to protect your electrical equipment from a range of potential hazards. Welcome to use our out door telecom cabinet.



2. Selling points and Feature Of Outdoor Equipment Cabinet

- Dust and debris: Our products keep dust and foreign objects from interfering with your critical electrical systems, helping you avoid damage and interruptions.

- Moisture and corrosion: All of our telecom cabinets stop the rain, sleet, snow and ice from getting in, eliminating issues and losses caused by corrosion.

- Unauthorized access: These cabinets are durable and lockable for reliable protection against equipment theft, vandalism and access by unauthorized personnel.



3. Technical Parameters

Item Type Technical Parameter
Structure Dimension

Cabinet External Size : 450mm×450mm×750mm (W×D×H),

Cabinet Internal Size : 6U× 400×19” (W×D×H)

Layout One compartment
Equipment Installation Method 19″ Data Rack Rails
Door The cabinet door uses embedded structure. The door includes a 3 point locking system with key-lock swing handle.The cabinet door uses embedded structure
Material The cabinet is made of hot dip galvanized steel,cabinet, with 20mm heat insulation between the two walls
Structure double walls structure
Ingress Protection IP55
Temperature Control Cooling 2 fans
Temperature Temperature Working Temperature: -40°C ~ + 60°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity ≤95% (at + 40°C)
Pressure Air Pressure 70kPa ~ 106kPa
Cabinet load bearing   ≥600kg





4. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

Cabinet External Size : 450mm×450mm×750mm (W×D×H),

Cabinet Internal Size : 6U× 400×19” (W×D×H)

2 Fan 4 Set 2 set Fans

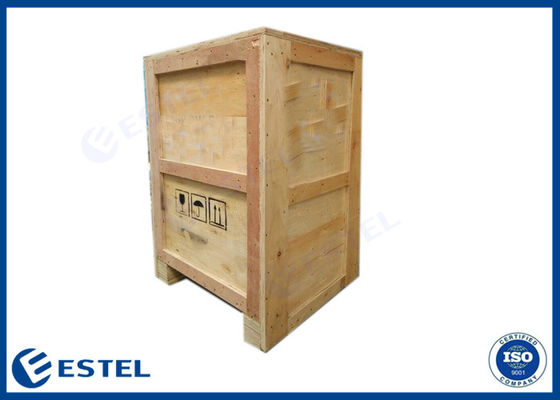

3 Package 1 Set Wooden Case
4 TEC 1 Set 100W
5 Door detector 1 Set





6 LED LAMP 1 Set DC48V LED LAMP



5. Enclosure Cooling

2 Pcs DC48V Fans and 1 set TEC



6. Cabinet Structure

(1) Cabinet External Size : 450mm×450mm×750mm (W×D×H),

Cabinet Internal Size : 6U× 400×19” (W×D×H)

(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

(3) The cabinet is a double-wall cabinet, with 20mm heat insulation between the two walls



7. Picture

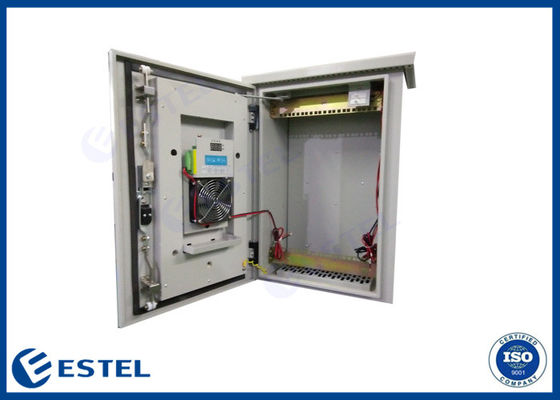

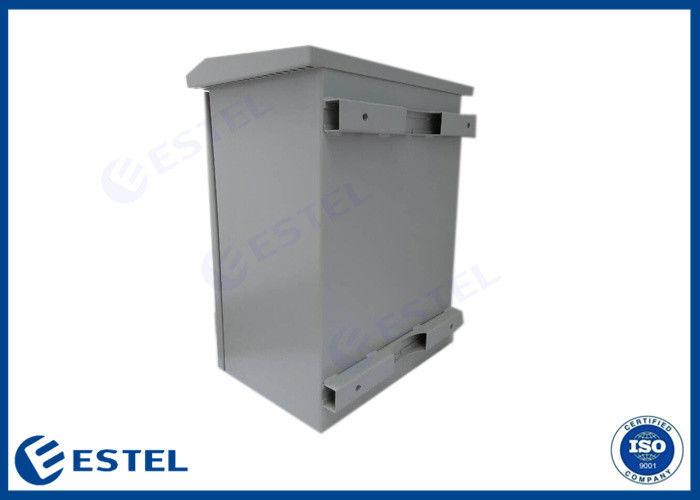

Small Wall Mounted Outdoor Telecom Cabinet 450mm Width 750mm Hight 0



8. Our Market

Our products and solutions have been deployed all over China. Our main

domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
