RAL7035 Grey 16U Outdoor Telecom Enclosure With One Temperature Controller

RAL7035 Grey 16U Outdoor Telecom Enclosure With One Temperature Controller

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: 945 ET6565100-EQ-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: L/C, Western Union, T/T
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel Color: RAL7035 Grey
Dimension: W×D×H 650×650×1000mm 19” Space: 16U
Installation Method: Floor Mount Air Conditioner: Power Supply: AC220V 50Hz
High Light:

16U Outdoor Telecom Enclosure

,

RAL7035 Outdoor Telecom Enclosure

,

16u rack cabinet

Product Description

RAL7035 Grey 16U Outdoor Telecom Enclosure With One Temperature Controller



1. Description



This outdoor telecom cabinet is made of galvanized steel, only one front door access. Typical equipment being housed includes Computer, DVR, CCTV, Communications, Surveillance, Switches, Routers etc. and in many cases includes power rectification and battery back-up.



2. Features



· Air conditioner and Fan for cooling

· Anti-corrosion

· All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.

· Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55

· Hidden hinge, inside screws, enhance the theft-proof

· Support custom mad

·

3. Application Area



· Internet service providers

· Environmental monitoring

· CCTV and security systems

· Passive and active optical networks

· Mobile & Radio, 3G 4G 5G, Tetra, Microwave

· Urban and rural fibre deployment

· New build home developments

· Trackside and roadside





4. Technical Data Sheet





Model ET6565100-EQ
Dimension W×D×H 650×650×1000mm
19” space 16U
Door One front door
Lock Anti-theft three point lock for outdoor cabinet(support padlock)
Material Galvanized steel; single wall with thermal insulation
Color RAL7035 grey
Installation method Floor mount



Cooling

Air conditioner

Power supply: AC220V 50Hz;

Cooling Capacity: 500W

Ventilation system Two AC220V fans with one temperature controller
Illumination AC220V LED lamp
LED Lamp Switch Used for controlling led lamp on/ off
Working temperature -40°C~+75°C
Ingress Protection IP55

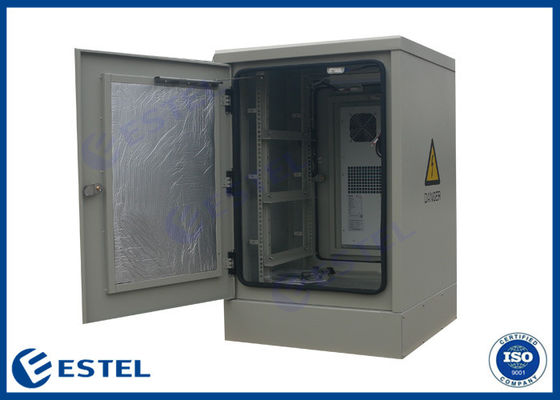

5. Cabinet Picture





RAL7035 Grey 16U Outdoor Telecom Enclosure With One Temperature Controller 0





6. Equipemtn Installation Rack



RAL7035 Grey 16U Outdoor Telecom Enclosure With One Temperature Controller 1



7.Packing

The cabinet packing is wooden case, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.



8. Storage

In the warehouse, the acid gas, Alkaline gas or other harmful gas should comply with the environment protection requirement. Storage temperature: -5°C~45°C, relative humidity≤75%.



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
