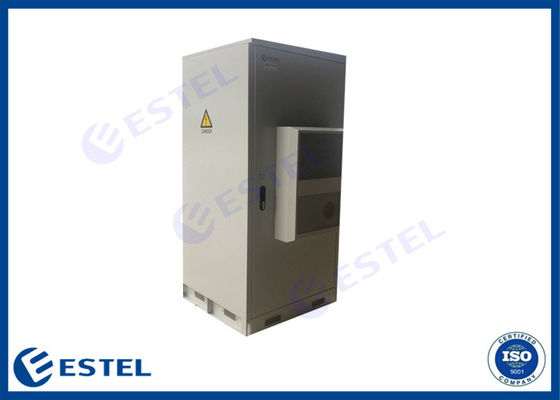

IP55 One Bay Weatherproof Telecom Enclosure Single Wall With Heat Insulation
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET9090210-254-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Material: | Galvanized Steel | Air Conditioner: | AC220V |
|---|---|---|---|
| Fans: | AC220V | Ground Bar: | At The Bottom Of The Cabinet |
| Power Distribution Unit: | Grade B Lightning Proof | LED Lamp: | AC220V |
| High Light: | IP55 Weatherproof Telecom Enclosure,One Bay Weatherproof Telecom Enclosure,AC220V weatherproof electronics box |
||
Product Description
IP55 One Bay Weatherproof Telecom Enclosure Single Wall With Heat Insulation
1. Outdoor Weatherproof Telecom Enclosure Features
Galvanized Steel, single wall with insulation
Temperature Control: AC220V air conditioner or AC220V 50Hz fans.
Protection level:IP55.
There is one ground bar at the bottom of the cabinet
Dustproof, Sunproof and Rainproof.
2. Outdoor Weatherproof Telecom Enclosure Application
· Internet service providers
· Environmental monitoring
· CCTV and security systems
· Passive and active optical networks
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 800*800*1800mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 40U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with insulation | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×2100mm Internal Dimension:40U (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V 50Hz installed on the front door. |
| 3 | Air conditioner | 1 | PC | 1500W, AC220V 50Hz |
| 4 | LED Lamp | 1 | PC | AC220V 50Hz |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 60Hz UK type socket |
| 7 | Package | 1 | PC | Wooden Case |
5. Cabinet structure
(1) External Dimension: W×D×H 900×900×2100mm
Internal Dimension:40U
(2) One compartment: 19” installation
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
6. Cooling System Pictures
The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continuous operation.It supports RS485 communication and can be connected with customers' system.
· Cooling Capacity:1500W
· Power Supply: 220VAC,60Hz
7. Cabinet Door
The cabinet includes one front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
8.Cabinet picture
9. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
