High Integrated 19” Weatherproof Telecom Enclosure 900×900×2300mm
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET9090230-EQ-2-313-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Dimension: | W×D×H 900×900×2300mm | Ingress Protection: | IP55 |
|---|---|---|---|
| Structure: | High Integrated | Layout: | 1 Compartment |
| Door: | With One Front Door And One Back Door | Relative Humidity: | 5% ~ 100% |
| High Light: | 19” Weatherproof Telecom Enclosure,High Integrated Weatherproof Telecom Enclosure,19” weatherproof network enclosure |
||
Product Description
High Integrated 19” Weatherproof Telecom Enclosure 900×900×2300mm
1. Weatherproof Telecom Enclosure Advantage
(1) High integrated
High compatibility, high integration
Supporting multiple equipment, good appearance
(2) Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
One compartments/Two compartments / multiple compartments
2. Weatherproof Telecom Enclosure Features
· Strong rack inside to be equipped with telecom equipment, power source, temperature control device and other accessories.
· Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
· Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 900×900×2300mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). | |
| Material | Galvanized steel, double wall with insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4.Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×2300mm (2) One compartment (3) With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
|
| 2 | Air Conditioner | 2 | PC |
Cooling capacity: 2000W. Power Supply: AC220V, 50Hz. One installed on front door, the other on back door. |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
| 4 | LED Lamp | 2 | PC | DC48V |
| 5 | LED Lamp Switch | 2 | PC | One for controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
| 7 | Package | 1 | PC | Wooden Case |
5.Cabinet Structure
(1) External Dimension W×D×H 900×900×2300mm
(2) One compartment;
(3) totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

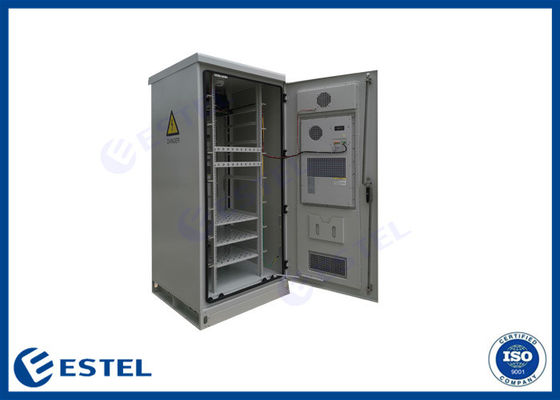

6.Cabinet Pictures
7.LED Lamp And Door Sensor
LED lamp and door sensor are installed at the top of the cabinet.
8.Other Outdoor Cabinet Pictures:
9. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
