16U 19 Inch Weatherproof Rack Enclosure Anti Theft Three Point Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET7080135-EQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| External Size: | 700mm×800mm×1350mm(W×D×H) | Internal Space: | 19” 16U |
|---|---|---|---|
| Base Height: | 500mm | Material: | Galvanized Steel |
| Surface Treatment: | Powder Coating,Anti-corrosion | Color: | Grey RAL7035 |
| High Light: | 19 Inch Weatherproof Rack Enclosure,16U Weatherproof Rack Enclosure,16U weatherproof network enclosure |
||
Product Description
16U 19 Inch Weatherproof Rack Enclosure Anti Theft Three Point Lock
Description of IP55 Waterproof Outdoor Telecom Cabinet
The outdoor telecom cabinet ET7080135-EQ has been designed to house sensitive electronic equipment for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, power, networking etc.
ET7080135-EQ's upper part includes 19″ installation rail with 16U space, lower part includes 500mm high base for cable management. The base height can be customerized.
Selling Points and Feature Of IP55 Waterproof Outdoor Telecom Cabinet
● The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment
● 16 rack units (RU), standard 19” rail
● IP grade: IP55
● Cabinet cooling: 500W air conditioner and fans
● Heavy duty outdoor construction
● Front access (rear access optional)
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft three-point locking system, support padlock
Technical Parameters of IP55 Waterproof Outdoor Telecom Cabinet
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET7080135-EQ |
| Size |
External Size: 700mm×800mm×1350mm(W×D×H) Internal Space: 19” 16U. Base height: 500mm |
|
| Component | The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted. | |
| Material | Galvanized steel, single wall with thermal insulation | |
| Structure |
(1) One front door (2) Anti-theft three point lock, support padlock (3) Door stopper is installed for keep door at an angle when door is open (4) Door with good sealing, waterproof and dust-proof (5) Include standard 16U 19“ rack inside the cabinet, high compatibility. (6) Equipped with cable manager (7) Cable inlets at the bottom of cabinet (8) 4 lifting ears on the cabinet top |
|
| Surface Treatment | Powder coating,Anti-corrosion | |
| Color | Grey RAL7035 | |
| Ingress Protection | IP55 | |
| Working Temperature | -40°C～+55°C | |
| Cooling Method | Air Conditioner |
Cooling Capacity: 500W Power Supply: 220VAC, 50Hz On front door |
| Fan | Two AC220V fans with thermostat |
Cabinet Structure of IP55 Waterproof Outdoor Telecom Cabinet
(1) External Dimension 700mm×800mm×1350mm(W×D×H)
(2) One compartment,19″ installation rail with 16U space
(3) The cabinet is made of galvanized steel, single wall with thermal insulation.
(4)The door stopper can limit the opening angle larger than 110°.
(5) Anti-theft measures: Internal hinge and anti-theft three point lock(supports padlock)
Cabinet Mounting Type of IP55 Waterproof Outdoor Telecom Cabinet
Floor standing by base
Cabinet Drawing

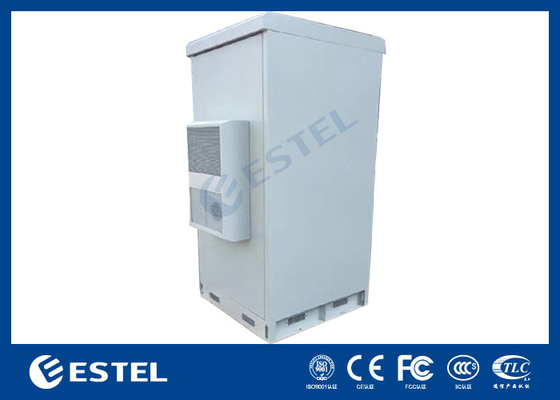

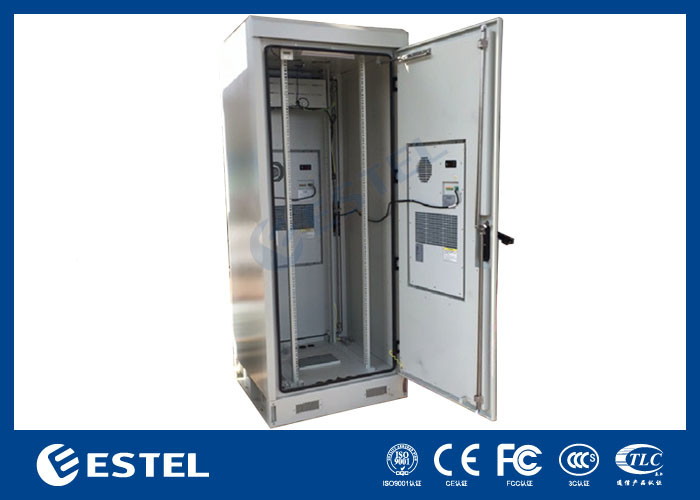

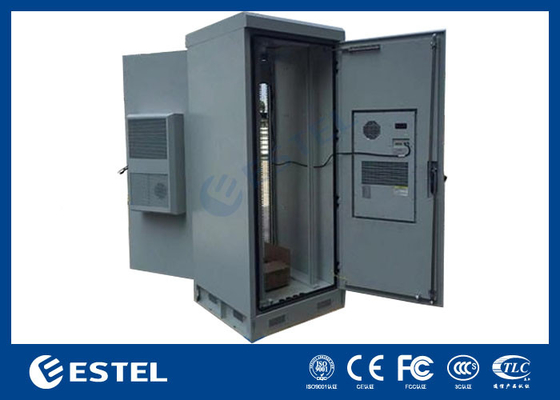

IP55 Waterproof Outdoor Telecom Cabinet Pictures
Wooden Case Package
Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 10 Years
