Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET7272130-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: wooden case
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Get Best Price Contact Now

Detail Information

Material: 1.5mm Thick Electro-galvanized Steel Paint: Outdoor Polyester Powder Coat
Rail: 19" Mount Door: One Front Door
Cable Entry: Bottom Cable Access Light: 48VDC LED Lamp
Highlight:

720mm width Weatherproof Network Enclosure

,

23U Weatherproof Network Enclosure

,

23U weatherproof electrical enclosures

Product Description





IP55 Outdoor Cabinet For Solar Power System 19" 23U With Fan, Smoke Detector And Door Switch





1.  Application Scope



The Outdoor Telecom Cabinet is used for solar power system. Solar chargers, converters and inverters, rectifiers, DC load distributions, AC load distributions, battery distributions etc. can be installed inside the cabinet.





2.  Cabinet Introduction



The cabinet is a single skinned outdoor enclosure for mounting on base assembly. It is designed with adapters to fit 19” equipment. The cabinet accommodates a dust and water protection rating of IP55. The cabinet cable entry is located at the bottom left of the cabinet by means of cable gland plates.





3. Cabinet Dimension

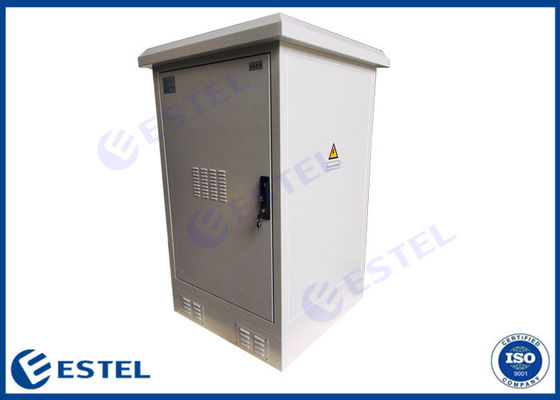

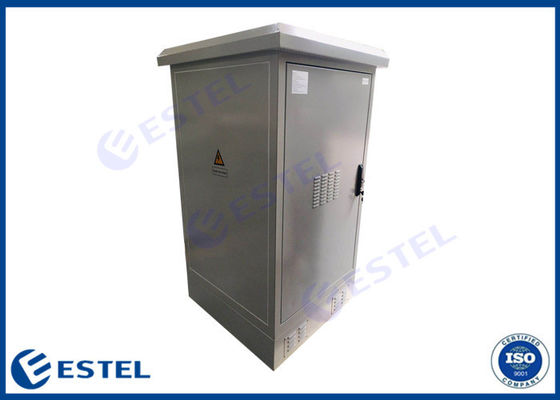

Cabinet External Dimension (W×D×H): 720×720×1300mm.



720mm Width Weatherproof Network Enclosure 0



4. Specifications



4.1 Cabinet Construction



Skin Material: 1.5mm thick electro-galvanized steel (corrosion-resistant)

Frame Material: galvanized steel

Powder-Coat Paint: outdoor polyester light gray RAL7035 coating

The cabinet top is removable. The purpose of this is for solar protection, hiding lifting ears and additional water protection.



4.2 Thermal Specification



Fan and filter



Fan with below fan specs:

1) Fan voltage 48VDC

2) Fan temperature controller

3) Fan can be mounted on the door or at cabinet top



4.3 Rail Specification



Construction: galvanized steel

Mounting: 19” mount – from top to bottom of the cabinet



4.4 Door Specification



The cabinet have one front door.



4.5 Other Specifications and Options



1)Cable Entry: bottom cable access

2)Ground Bar

3)Plinth Foot Print (154mm)

4)Lifting Ears: 4 lifting ears located under top cover





5. Electrical Devices



5.1 Service Light

Service light is used to get additional light inside the cabinet. Service light is 48VDC, installed at the top of the cabinet.



5.2 Smoke Detector

Smoke detector can detect smoke and issues an alarm to alert that there is a potential fire in the cabinet. Smoke detector is installed at the top of the cabinet.



5.3 Door Switch

Door switch can trigger alarm when the door is opened. Door switch is installed at door and door frame.



5.4 Fan

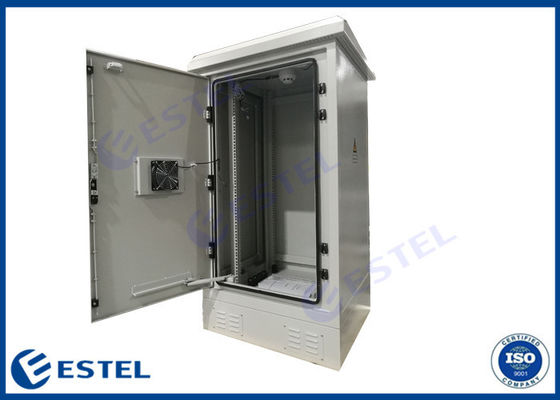

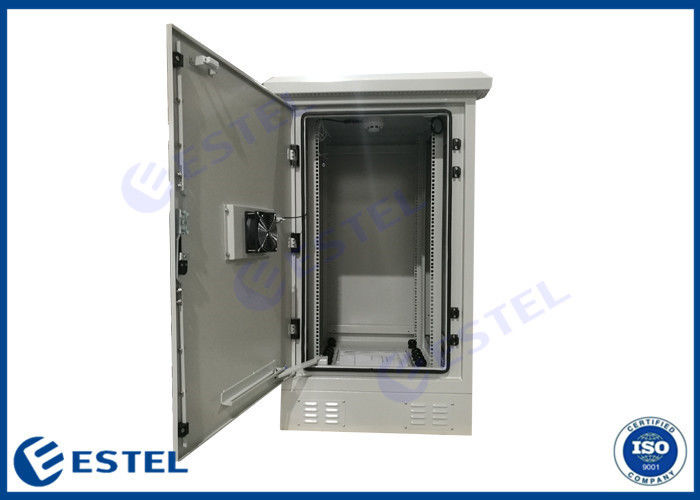

The cabinet includes one DC48V fan, installed at cabinet door.





720mm Width Weatherproof Network Enclosure 1



720mm Width Weatherproof Network Enclosure 2
