19inch 27U Outdoor Electronics Enclosure With Monitoring

19inch 27U Outdoor Electronics Enclosure With Monitoring

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET7575150-EQ-2D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Depends on order quantity
Packaging Details: Wooden Case
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 2000 sets per month
Get Best Price Contact Now

Detail Information

Internal Space: 19" 27U Size: 1500×750×750mm(H×W×D)
Material: Galvanized Steel Construction: Single Wall With Thermal Insulation
Coating: Anti-corrosion Coating Cooling: Air Conditioner
Monitoring: SNMP PDU: AC And DC Power Distribution
High Light:

27U Outdoor Electronics Enclosure

,

19inch Outdoor Electronics Enclosure

,

27U outdoor telecom cabinet

Product Description

19inch 27U Outdoor Electronics Enclosure With Monitoring





19" 27U Outdoor Telecom Base Station Enclosure Front And Back Access With Monitoring And Sensors







Introduction



● The outdoor telecom cabinet is designed for a variety of applications and can be tailored to fit your specific needs. The Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.





Application



The outdoor cabinet can provide a secure, climate controlled environment for any electronic equipment, such as:



Telecommunications

Wireless/Broadband

Fiber Optics

Base Station

Small Cell/DAS

Utility

Military

Trailer-based Communications

Wi-Fi





Features



● IP55, dust proof and water proof.

●Short construction period, less land occupation, broader application and lower construction cost

● Anti-theft three point lock

● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor, and shock sensor

● Professional outdoor anti- corrosion powder coating, strong weather resistance

● Independent environmental monitoring system can realize remote real-time monitoring and human intervention on the equipment in the cabinet. And can be designed to achieve remote maintenance and detection capabilities, thus greatly reducing the operation and maintenance costs of the later period.





Specification



Configuration Item Technical Parameter
Cabinet Body Model ET7575150-EQ-2D
Size

External Size: 1500mm×750mm×750mm(H×W×D)

Internal Size: 19”, 27U.

Component The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation mode is floor self-standing.
Material Galvanized steel, single wall with thermal insulation
Structure

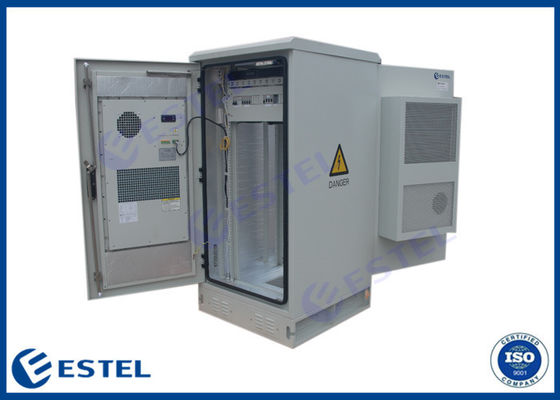

  • One front door and one rear door, with three point lock
  • Door stopper is installed on the inside of the cabinet door
  • Good seal, waterproof and dustproof
  • The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.

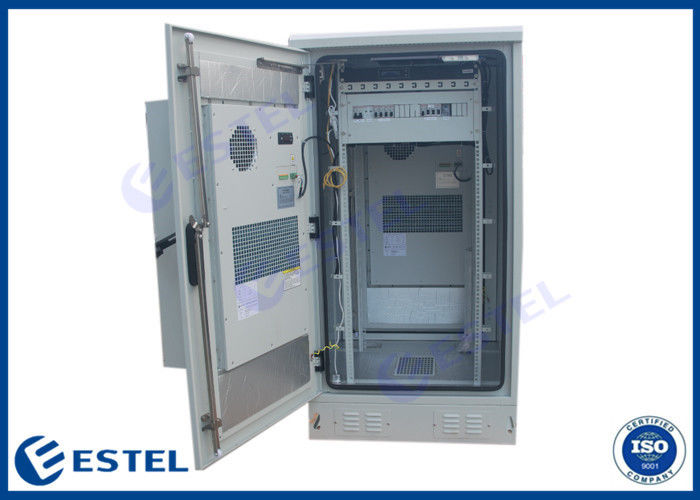

  • Include standard 19“ rack inside the cabinet, high universality.
  • Equipped with cable manager
  • Cable inlets at the bottom of cabinet
Surface Treatment Polyester powder paint, anti-corrosion
Color RAL7035
Ingress Protection IP55 (EN60529)
Working Temperature -40°C~+60°C
Cooling Method Air Conditioner

Voltage Input: 220VAC 50Hz

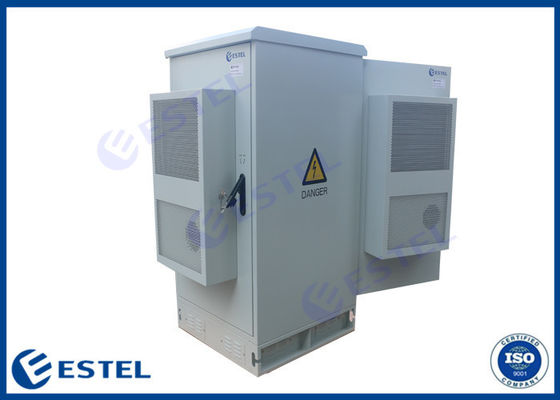

Cooling Capacity: 1500W One air conditioner on front door and the other air conditioner on back door

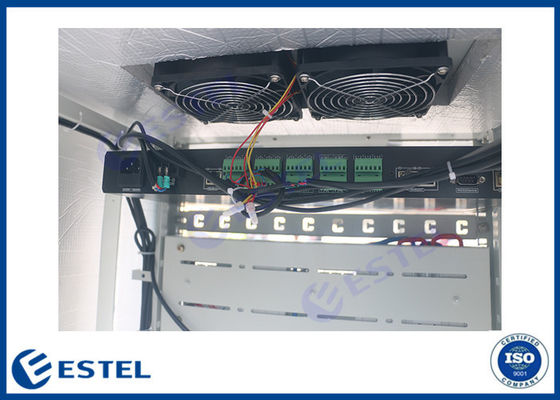

Fan 2 fans 48VDC on cabinet top
Monitoring Monitoring Unit Provide environment/device control and remote monitoring for outdoor cabinet, SNMP communication
Smoke Detector Monitor smoke status inside the cabinet and provide real time alarm.
Vibration Sensor Monitor the vibration status of the cabinet and provide real time alarm.
Water Sensor Monitor water status inside the cabinet and provide real time alarm.
Door Switch When unauthorized opened, provide real-time alarm.
Temperature & Humidity Sensor Monitor temperature and humidity status inside the cabinet and provide real time alarm.
Power Distribution PDU

Grade B lightning proof AC Input: 63A/2P *1; AC Output: 16A/1P*4;

DC Output: 16A/1P*4

Input Voltage: 220VAC/50 Hz

Other Illumination LED light, 48VDC





Dimension



19inch 27U Outdoor Electronics Enclosure With Monitoring 0
