Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET6565100-EQ-524-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 3-4 weeks
Payment Terms: L/C, Western Union, T/T
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Dimension: W×D×H 650×650×1000mm Cooling System: Air Conditioner 500W
19” Space: 16U Color: RAL7035 Grey
Lock: Anti-theft Three Point Lock Installation Method: Floor Mount
High Light:

16U Outdoor Telecom Enclosure

,

1000mm Outdoor Telecom Enclosure

,

16U weatherproof electronics box

Product Description

1000mm 16U Outdoor Telecom Enclosure Weatherproof Electronics Box



1000mm 16U Outdoor Telecom Enclosure Weatherproof Electronics Box



1. Weatherproof Outdoor Telecom Cabinet



- Cooling System: Air conditioner(Fans,or Heat exchange)

- Protection Level: IP55 ,Waterproof,dust proof.

-The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

- The cabinet cooling uses air conditioner and fans.

- Including -48VDC illumination lamp.

- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance     holes individually for power cable, signal cable and optical cable.

- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.

- The cabinet includes 19” standard installation rack.



2. Weatherproof Outdoor Telecom Cabinet Application Area



· Satellite Communication

· Wireless Backhaul

· Cable Television

· Navigation & Positioning

· Military Installation

· Port Security



3. Technical Data Sheet



Model
Dimension W×D×H 650×650×1000mm
19” space 16U
Door One front door
Lock Anti-theft three point lock for outdoor cabinet(support padlock)
Material Galvanized steel; single wall with thermal insulation
Color RAL7035 grey
Installation method Floor mount



Cooling

Air conditioner

Power supply: AC220V 50Hz;

Cooling Capacity: 500W

Ventilation system Two AC220V fans with one temperature controller
Illumination AC220V LED lamp
LED Lamp Switch Used for controlling led lamp on/ off
Working temperature -40°C~+75°C
Ingress Protection IP55


4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Dimension:H× W× D 1000× 650× 650mm

(2)One compartment: including 19” rack.

(3)With one front door , with three point lock for outdoor cabinet.

(4) Material: galvanized steel, single wall with thermal insulation.

2 Air Conditioner 1 Set

Cooling Capacity: 500W

Power Supply: 220VAC, 50Hz

3 Fan 2 Set 220VAC
4 LED Lamp Switch 1 PC For controlling LED lamp on/off
5 LED Lamp 1 PC 220VAC
6 Package 1 Set Wooden Case

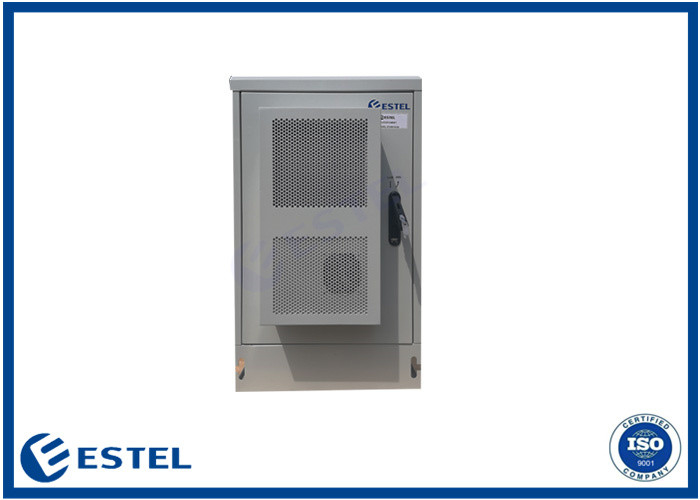

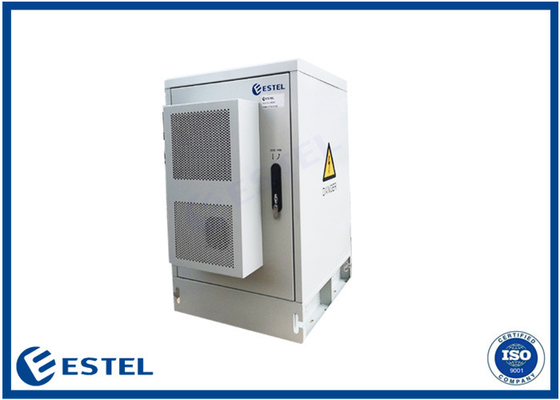

5. Cabinet Picture



1000mm 16U Outdoor Telecom Enclosure Weatherproof Electronics Box 0



1000mm 16U Outdoor Telecom Enclosure Weatherproof Electronics Box 1



6. Cabinet Description

6.1 Cabinet Material

The cabinet is made of galvanized steel, with double wall and the cabinet is assembled type.

6.2 Cabinet Door and Lock

The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is theftproof three point lock, supporting padlock.



7. Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.

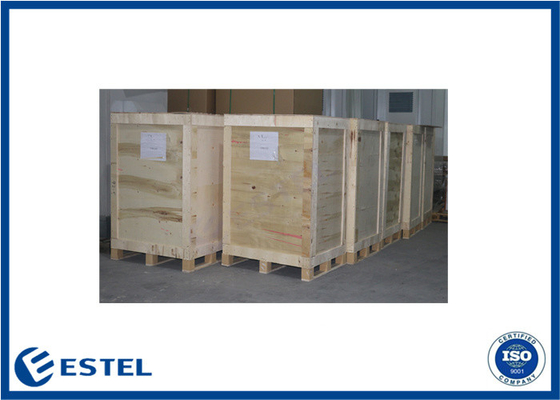

8. Packing



1000mm 16U Outdoor Telecom Enclosure Weatherproof Electronics Box 2



9. Power system connections



Communication cable making

a. Direction

Definition: Put the side with plastic shell of registered jack down, and the side with PIN up; put the end with PIN away from you, and the end with square hole near you (the end for pushing the network cable in when making network cable). Then define the far left one as PIN1, and the far right one as PIN8.

b. For RS232communication, PIN1 is 232TX (send), PIN4 is 232RX(receive), PIN5 is communication grounding.

c. For RS485 communication, PIN2 is RS485+, PIN3 is RS485-, other PINs are suspended.

d. Ethernet communication cable adopts T568A standard and T568B standard.

e. T568A standard cable connection method is from left to right: green and white--green--orange and white- -blue--blue and white--orange--brown and white--brown.

f. T568B standard cable connection method is from left to right: orange and white--orange--green and white- -blue--blue and white--green--brown and white--brown.

g. When two ends of the Ethernet cable both adopt T568A standard or T568B standard, it is Ethernet direct cable; When one end adopts T568A standard while the other end adopts T568B, it is Ethernet cro
