IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner

IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET77100168-921-9

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 3-4 weeks
Payment Terms: L/C, Western Union, T/T
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: High Quality Galvanized Steel Dimension: 700×1000×1700mm
Layout: 1 Compartment Door: With One Front Door And One Rear Door
Structure: Welded Ingress Protection: IP55
High Light:

IP55 Outdoor Electrical Enclosure

,

1500W Outdoor Electrical Enclosure

,

1500W weatherproof electrical cabinet

Product Description

IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner



IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner



1. Description Of Outdoor Electrical Enclosure



The ET70100170-EQ used in outdoor environment.We carry IP55 enclosures that demonstrate almost complete protection from particles and a good level of protection against water,They are specifically designed for mounting onto a column. Double-walled case design safeguards the installed components from all-weather as well as from vandalism thanks to the cabinet's compact structure which prevents removal of individual components from the outside.



2. Selling points and Feature Of Outdoor Electrical Enclosure



- 19 inch device installation;

- Cable splicing and protection function;

- Welded forming with galvanized steel sheet, outdoor powder spouted at the inside and outside

surface;

- Heat-isolation material filled in the interior.

- The cabinet with IP55 protection level is dustproof, sunproof, and rainproof, especially suitable for the outdoor environment.

- The cabinet uses air conditioners as a cooling system, which can effectively reduce the temperature in the cabinet.



3. Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension (W×D×H): 700×1000×1700mm
Layout 1 compartment
Equipment Installation Method 19″ Data Rack Rails
Door With one front door and one rear door, and special lock for outdoor cabinet (support padlock)
Material High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF
Structure Welded
Ingress Protection IP55
Temperature Control Cooling Air Conditioner and Heat Exchanger Integrated Unit
Temperature Temperature Working Temperature: 40°C ~ +70°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity ≤95% (at + 40°C)
Pressure Air Pressure 62kPa ~ 102kPa

Radiation

Intensity

Solar Radiation

Intensity

1120 × (1±5%)W/m2



4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension (W×D×H): 700×1000×1700mm

(2) 1 compartment

(3) With one front door and one rear door , and special lock for

outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

2 Air Conditioner and Heat Exchanger Integrated Unit 1 Set

Cooling capacity: 1500W

Heat Exchanger 80W/K

3 Environment Monitoring System 1 Set LED 1pcs, Door detector 1pcs, Water Sensor 1pcs
4 Packing 1 Set Wooden case



5. Enclosure Cooling



1500W/Heat Air Conditioner and 80W/K Heat Exchanger Integrated Unit



6. Cabinet Structure



(1) External Dimension: 700×1000×1700mm

(2) 1 compartment

(3) With one front door and one rear door , and special lock for outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

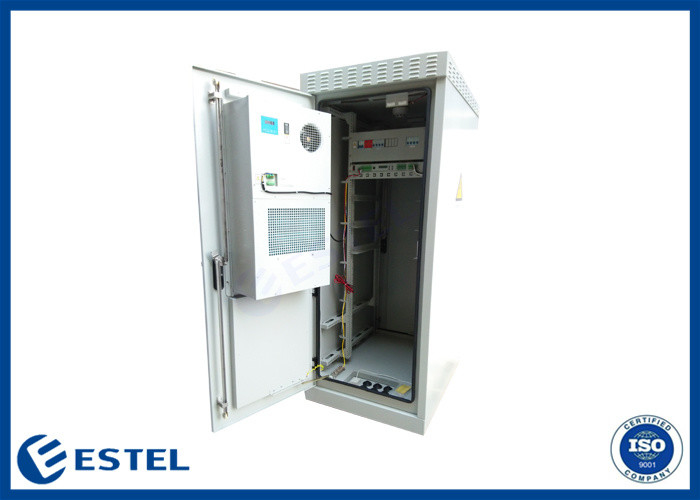

7. Cabinet Picture:



IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner 0



IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner 1

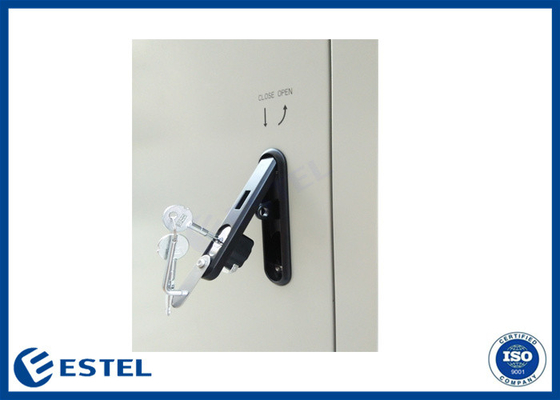

8. Cabinet Iock



Three point lock and key



IP55 Outdoor Electrical Enclosure weatherproof 1500W Air Conditioner 2



9. Production



With the original design concept, a team of experienced designers has been built. After the introduction of PM product

creativity, industrial design, institutional design, electronic research and development, mold development, production and

assembly, the product to achieve the whole process from the wonderful creativity to the perfect realization.



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
