DC Type  Enclosure Heat Exchanger

DC Type Enclosure Heat Exchanger

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: HE06-200REH/01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton + foam + wooden case
Delivery Time: 7-15 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 12,000 sets per month
Get Best Price Contact Now

Detail Information

Rated Input Voltage: DC48V Installation Mode: Door Mounted
Protection Level: IP55 Noise: ≤65dB
Rated Input Power: 168W Rated Input Current: 3.5A
High Light:

DC Type Enclosure Heat Exchanger


200W/K Enclosure Heat Exchanger


200W/K electric heat exchanger

Product Description


200W/K DC Type Enclosure Heat Exchanger Industrial HEX For Telecom Outdoor Cabinet Door Mounted

1. Technical Parameters

Model No.HE06-200REH/01
Environmental Performanceworking environmental temperature-20°C ~ 55°C
storage working temperature-40°C ~ 70°C
working humidity≤95%
Thermal Performancerated heat exchange capacity200W/K
rated heating capacity300/500W (optional)
Electrical Performancerated input current3.5A
rated input power168W
rated input voltageDC48V

2. Dimension: 455×200×820 mm (W×D×H)

DC Type  Enclosure Heat Exchanger 0
3. Introduction and Application Scope
The HE06-200REH/01 Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.

4. Features

  • Strong adaptability
  • High intelligence
  • High precision
  • High reliability
  • The heat exchange capacity can be set according to need
  • Low noise
  • Low energy consumption
  • With 4 way switching value detection
  • With 1 way room air conditioner control
  • Wide input voltage range: DC36 - 65V
  • With dry contact alarm output
  • Dust proof and water proof

5. System Principle Diagram


DC Type  Enclosure Heat Exchanger 1

6. Electrical Wiring Diagram


DC Type  Enclosure Heat Exchanger 2

Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC36V-65V)

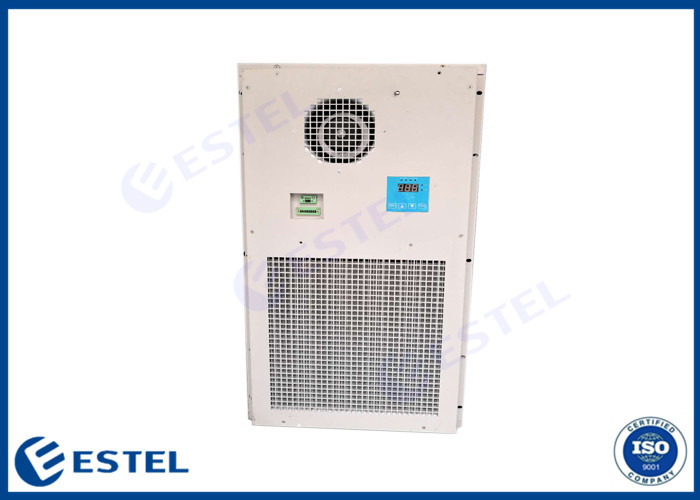

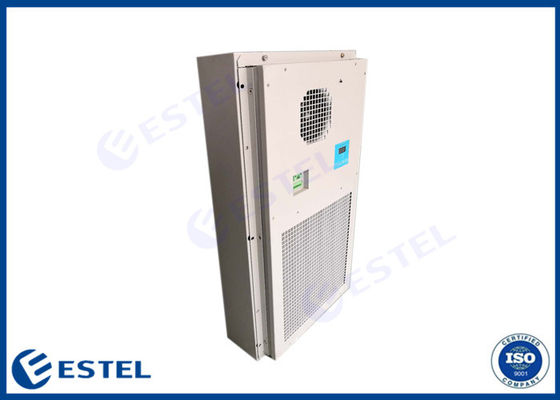

7. Product Picture
DC Type  Enclosure Heat Exchanger 3 DC Type  Enclosure Heat Exchanger 4
8. Packing
DC Type  Enclosure Heat Exchanger 5
