45U Outdoor Electrical Cabinet
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | ET8585235-UP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T, L/C,D/A, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 850×850×2350mm | Compartments: | 2 Compartments |
|---|---|---|---|
| Door: | Two Front Doors | Protection Level: | IP55 |
| Cooling System: | 2 Air Conditioners | Package: | Wooden Case |
| Highlight: | 45U Outdoor Electrical Cabinet,TLC Outdoor Electrical Cabinet,TLC outdoor network rack |
||
Product Description

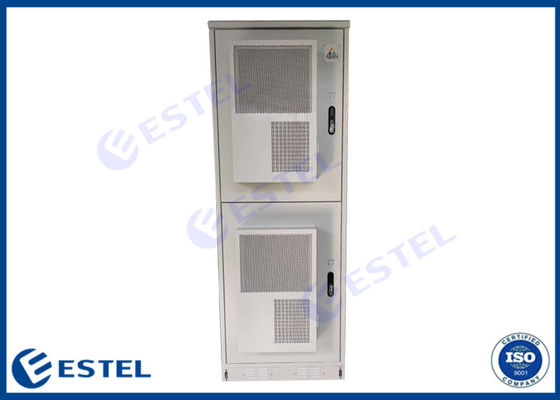

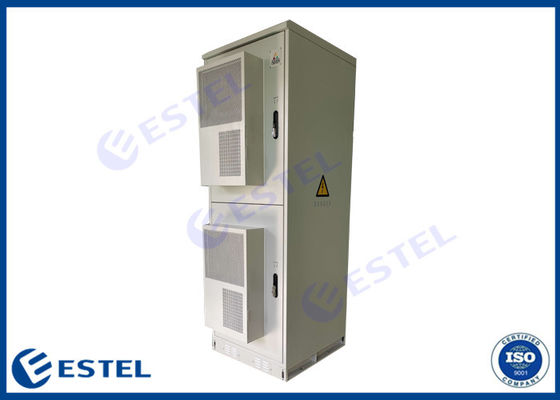

45U Outdoor UPS Battery Cabinet Two Air Conditioners Two Front Doors
1. Cabinet Instruction

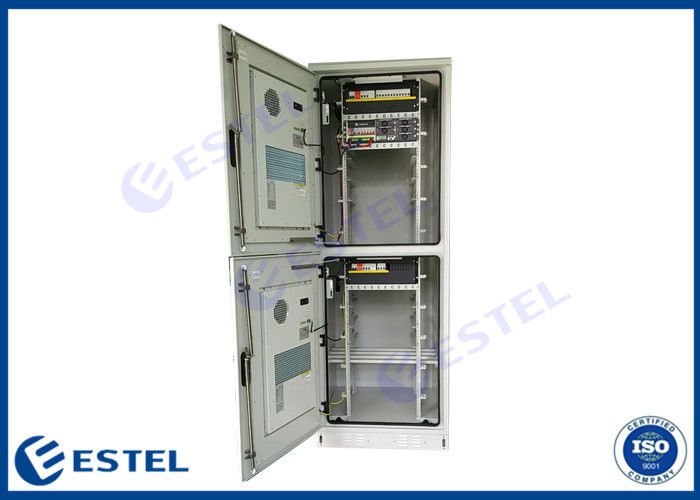

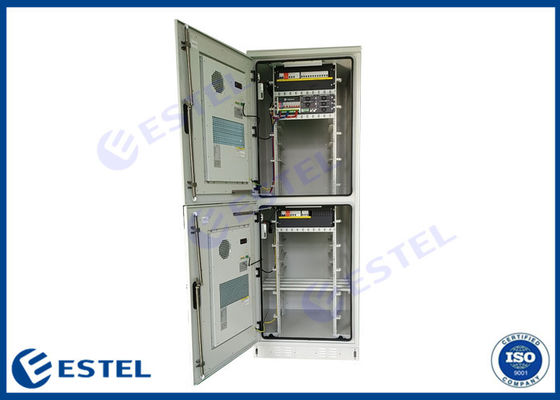

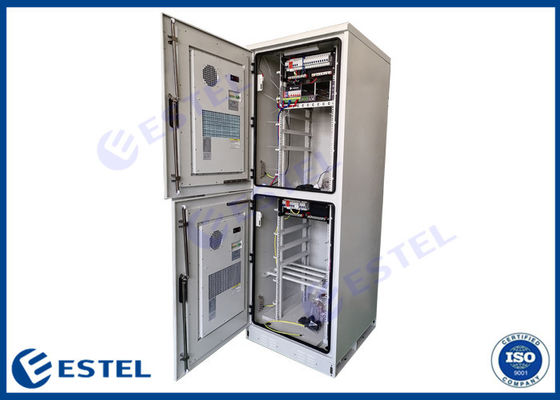

This series UPS battery cabinet has 2 compartments,upper part is for telecom equipment with 19" rack,and lower part is for power system equipment. It has two front doors, with anti-theft three point lock,supporting padlock.The material of the cabinet is double wall galvanized steel with heat insulation.
2. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 850×850×2350mm |
| Layout |
Two compartment. Upper part is for telecom equipment with 19" rack; Lower part is for power system equipment. |
|
| Door | With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; double walls, with 30mm PEF heat insulation between two walls. Outer plate thick is 2.0mm; Inner plate thick is 1.5mm | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioners |
| Lighting | LED Lamp | AC220V 60Hz ,6W |
| Power Distribution Unit | Power Distribution Unit A | For upper part |
| Power Distribution Unit B | For lower part | |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3. Cabinet Cooling System
There are 2 sets of 800W cooling capacity air conditioners installed on the front doors.
4. Embedded Power Supply
6. Cabinet Inlets
There are 6 cable inlets at the bottom of the cabinet.
7. Cabinet Pacakge And Shipment
