19inch Rack Outdoor Electrical Enclosures Cabinets
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET7575175-UP-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Type: | Battery UPS Cabinet | External Size(H×W×D): | 1750mm×750mm×750mm |
|---|---|---|---|
| Material: | Galvnaized Steel | Color: | Grey RAL7035 Powder Coating |
| Application: | Outdoor Base Station | Working Temperature: | -40℃～+75℃ |
| Structure: | Single Wall | Cooling: | Two DC48V Fans With One Temperature Contoller |
| Highlight: | 19inch Rack Outdoor Electrical Enclosures Cabinets,ESTEL Outdoor Electrical Enclosures Cabinets,19inch Rack telecom outdoor cabinet |
||
Product Description

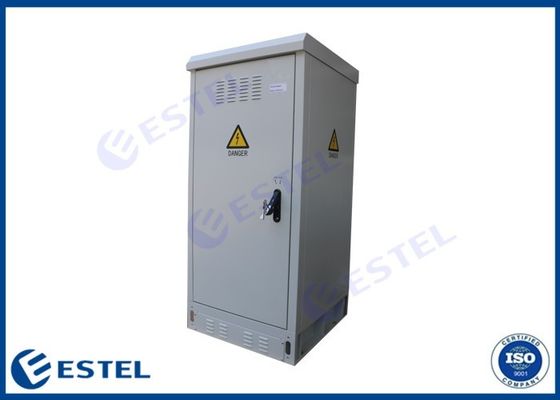

Single Wall Waterproof Enclosure Outdoor Electrical Cabinet Outdoor Power Enclosure Fan Cooling
1. Applications
The ET7575175-UP-S Outdoor Telecom Cabinet is mainly used in wireless communication base station:
(1) Access/transmission switching station
(2) Emergency communication/transmission
(3) 4G,5G system
(4) Communication/network integrated service
(5) The cabinet is suitable for outdoor environment, such as road side, park, building roof, mountain area, flat ground, etc. The cabinet can be installed with base station equipments, power supply equipments, batteries, temperature control equipments, transmission equipments and other equipments, or the cabinet can reserve installation space and heat exchange capacity for the above equipments, providing reliable mechanical and environmental protection for normal operation of the internal equipments.
2. Advantages
(1) High integrated
High compatibility, high integration
Supporting multiple equipments, good appearance
(2) Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
Two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof
3. Specifications
(1) Technical Parameters
|
Item |
Type |
Technical Parameter |
|
Structure |
Dimension |
External Dimension: W×D×H 750×750×1750mm Internal Dimension: W×D×H 650×650×1450mm |
|
Layout |
One compartment,the upper part for installing 19” equipment, the lower part for installing battery |
|
|
Equipment Installation Method |
19” rack, battery tray |
|
|
Door |
With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
|
|
Material |
Galvanized steel, single wall (fan type) |
|
|
Ingress Protection |
IP55 |
|
|
Temperature Control |
Cooling |
Fan |
|
Temperature |
Temperature |
Working Temperature: -40°C ~ +55°C |
|
|
|
Storage Temperature: -50°C ~ + 70°C |
|
|
|
Transport Temperature: -50°C ~ +70°C |
|
Humidity |
Relative Humidity |
5% ~ 100% |
|
Pressure |
Air Pressure |
62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 ×(1±5%)W/m2 |
(2) Accessories List
|
No. |
Item |
Quantity |
Unit |
Specs |
|
1 |
Outdoor Telecom Cabinet |
1 |
Set |
(1) External Dimension: W×D×H 750×750×1750mm Internal Dimension: W×D×H 650×650×1450mm (2)One compartment,the upper part for installing 19” equipment, the lower part for installing battery (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, single wall, 1.5mm thickness (5) IP grade: IP55 |
|
2 |
Fan |
1 |
Set |
Two DC48V fans with one temperature contoller |
|
3 |
Package |
1 |
Set |
Wooden Case |
Cabinet Dimension Diagram
4. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: fans. MTBF≥50000h
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
(4) All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
(5) The cabinet includes 19” standard installation rack and battery shelf.
(6) Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
(7) Flame retardance: comply with GB5169.7 test A
(8) Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
(9)Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
(10) Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
5. Details Diagram
6. Cabinet Pictures
