800mm Depth Outdoor Battery Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001 |
| Model Number: | ET8080150AL-BA-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Depend on order quantity |
| Packaging Details: | Wooden case with pallet |
| Delivery Time: | 20 to 25 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Protection: | IP55, For Outdoor Application | Cabinet Material: | Aluminum |
|---|---|---|---|
| Size: | H×W×D 1500×800×800mm | Space: | Four Battery Shelves |
| Door: | One Front Door | Coat: | Corrosion Resistant Coating |
| Hydrogen Release: | Including Hydrogen Release System | Cooling: | 220VAC 1500W Air Conditioner |
| Highlight: | 800mm depth Outdoor Battery Cabinet,IP55 Outdoor Battery Cabinet,800mm depth battery storage cabinet |
||
Product Description
Aluminum IP55 Outdoor Battery Cabinet for 4 Battery Strings With Hydrogen Release System
ET8080150AL-BA-1
1. Application
ESTEL is one of the best supplier of outdoor battery cabinet in China. The aluminum outdoor battery cabinet is developed for harsh outdoor environment. The protection grade of the outdoor battery cabinet is IP55 or IP65, waterproof, and weatherproof. The outdoor cabinet include anti-vandal system to protect the batteries for thieves.
The interior of the outdoor battery cabinet is kept cool and dry by passive air cooling, DC fans, or air conditioning.
The outdoor battery cabinet is usually used for backup power for outdoor telecom station. The installation of the cabinet is to be bolted down to concrete or trailer.
2. Features
(1) The cabinet body is made from aluminum, with light weight.
(2) The cabinet include hydrogen sensor and hydrogen release system to keep the cabinet inside safe.

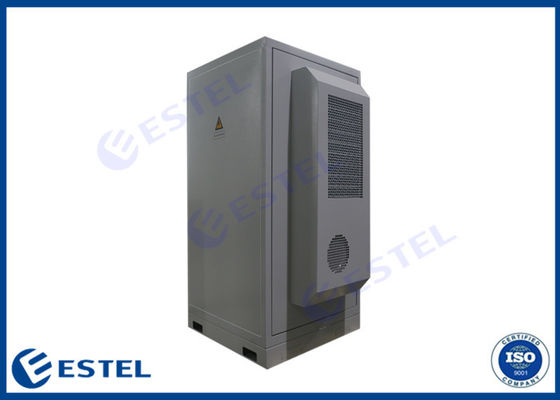

(3) Cabinet cooling: air conditioner, 220VAC or 48VDC options.
(4) Include smoke sensor and door switch, for detecting fire and door open inside the outdoor battery cabinet.
(5) LED lamp for illumination: 220VAC or 48VDC options.

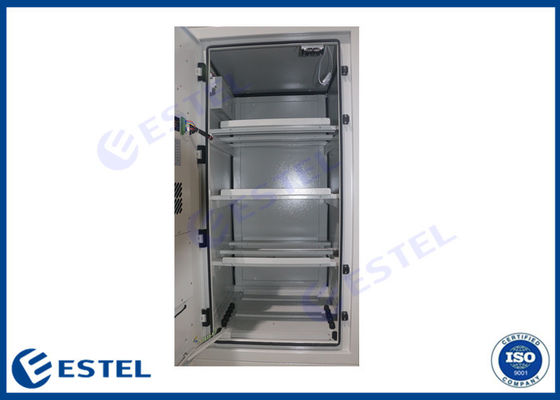

(6) Four battery shelves for installing 4 strings of batteries.
(7) Weatherproof outdoor cabinet, IP55.
(8) Vandalism resistant four point locking system.
(9) 8 cable glands at bottom left and another 8 cable glands at bottom right.
3. Technical Specifications
| Item | Type | Technical Parameter |
| Cabinet | Dimension | External Dimension: H×W×D 1500×800×800mm |
| Cabinet Base | Height: 100mm | |
| Material |
Double walls Outer wall: aluminum Inner wall: steel Inner frame: galvanized steel |
|
| Thermal Insulation | 20mm PEF | |
| Finish | Outdoor powder coating, light grey | |

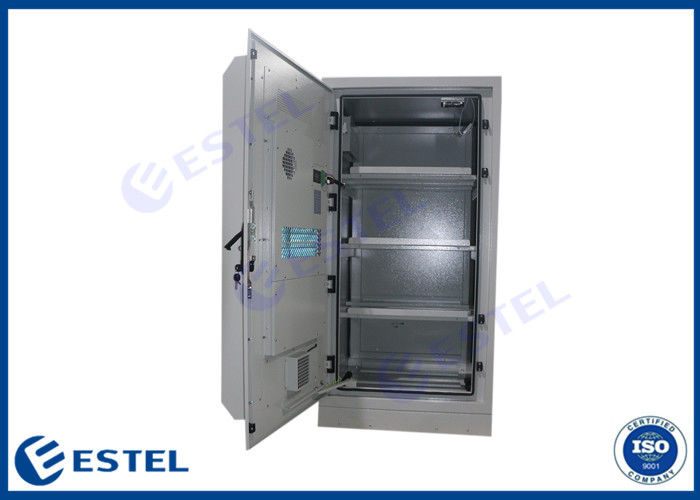

| Layout | 1 compartment, 4 battery shelves | |

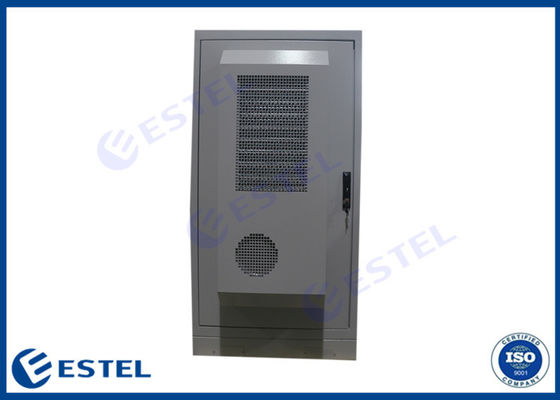

| Door | One front door | |
| Lock | Anti-theft four point lock, pad-lockable | |
| Ingress Protection | IP55 | |
| Installation | Bolted down to concrete or trailer | |
| Door Gasket | Include door gasket on door frame for waterproof | |
| Earthing | Cooper grounding bar | |
| Cable Gland | 8 cable glands at left of cabinet bottom and 8 cable glands at right of cabinet bottom, totally 16 cable glands PG21. | |
| Hydrogen Release | Hydrogen Release System | Include hydrogen release system and hydrogen sensor, for discharging hydrogen inside the cabinet generated by batteries. |
| Sensors | Smoke Detector | Detect fire and smoke inside cabinet |
| Door Switch | Open door alarm | |
| Thermal Management | Cooling | Air conditioner 220VAC 50Hz, or -48VDC |
| Lighting | LED lamp | -48VDC |
4. Cabinet Dimension
