R134A 2500W Electrical Cabinet Air Conditioning Units
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO, ROHS，CE |
| Model Number: | E542612500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Depending on order quantity |
| Packaging Details: | Wooden case |
| Delivery Time: | 15- 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Application: | Cooling For Outdoor Kiosk | Input Power Supply: | 220±15%VAC~50Hz |
|---|---|---|---|
| Cooling Capacity(L35/L35): | 2500W | Rated Input Power(L35/L35): | 1280W |
| Rated Current (L35/L35): | 5.8A | Heat Capacity(optional): | 1000W |
| Dimension (W × H × D): | 784× 619× 245 | Refrigerant: | R134a |
| High Light: | 2500W electrical cabinet air conditioning units,R134A electrical cabinet air conditioning units,R134A small cabinet air conditioner |
||
Product Description

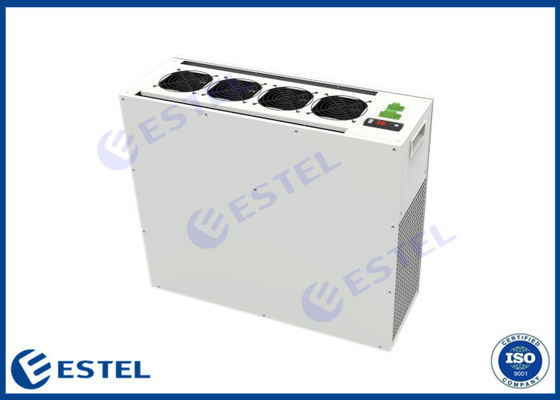

Waterproof Dustproof 2500W Air Conditioner
For Outdoor Kiosk Cooling Embedded Installed
Model: E542612500
Introduction
Offering the convenience and speed of self-service, kiosks are gaining more popularity worldwide, and it is difficult to imagine life without them. From ticketing and banking, to ordering food and printing pictures, kiosks are used for many different types of services; and with advances in technology, applications are always increasing. Kiosks typically contain sensitive electronics that include CPUs, printers and LCD touch-screens.
In most applications, when a kiosk is located indoors, auxiliary cooling is not required. However, Outdoor kiosks require additional consideration compared to their indoor counterparts. The reason for this is due to the potential for exposure to extreme weather conditions and harsh environments. The enclosure itself should be upgraded to protect against such adverse conditions, and a solution to counter high temperatures and humidity would also be required. Solar load is a major factor contributing to the cooling capacity necessary for trouble-free operation. Since the ambient air typically cannot be used to cool, active rather than passive methods are necessary. In most situations, an air conditioner mounted inside the kiosk, which can seal out the outside air and keep internal temperatures down to acceptable levels should be used. It is important to make sure the airflow throughout the kiosk is optimized by component placement to help avoid “hot spots” where the cool air may be blocked or restricted.
Technical Specs
| Application | Cooling for outdoor kiosk |
| Input power supply | 220±15%VAC~50Hz |
| Cooling capacity(L35/L35) | 2500W |
| Rated input power(L35/L35) | 1280W |
| Rated current (L35/L35) | 5.8A |
| Max working current | 8.5A |
| Heat capacity(optional) | 1000W |
| Dimension (W × H × D) | 784× 619× 245 |

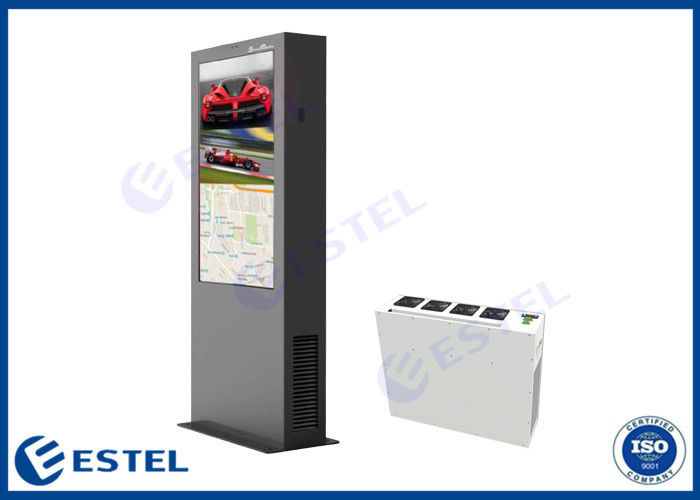

| Installation | Outdoor kiosk with double screens |
| Working environment temperature | -40 to +55⁰C |
| Lifetime | >10 years |
| IP grade | IP55 |
| Refrigerant | R134a |
| Noise | 65dB(A) |
| Weight | 45 Kg |
| Air Volume of Inner Circulation | 800m3/h |
Features
• The air conditioner is mounted inside kiosk, seal out the outside air and keep internal temperatures down to acceptable levels.
• Good air flow design make sure the cool air is not blocked or restricted.
• The outdoor kiosk air conditioner is applicable for environment with harsh climate.
• Input power supply: 220VAC 50Hz.
• The location of the air conditioner is in a concealed area, that will not alter the good appearance of the kiosk.
• The kiosk air conditioner offered a reduction in kiosk equipment failure and repair by preventing them from overheating.
• High reliability and stability.
• Long service life.

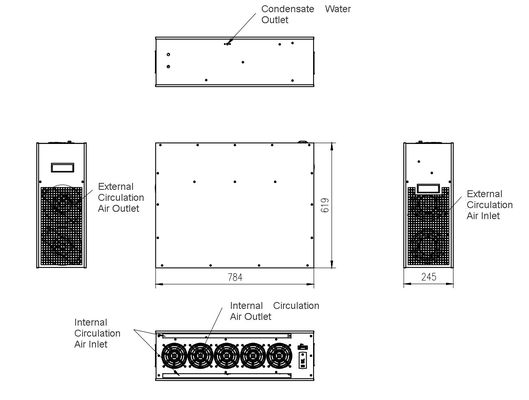

Drawing
Application of Our Air Conditioners
