Anti Theft IP55 32u Rack Cabinet With Three Point Locking System
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET7575175-EQ-521-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Dimension: | W×D×H 750×750×1750mm | Door: | One Front Door |
|---|---|---|---|
| Lock: | Anti-theft Three Point Lock For Outdoor Cabinet(support Padlock) | Air Conditioner: | AC220V 50Hz |
| Illumination: | AC220V LED Lamp | Ingress Protection: | IP55 |
| Highlight: | Anti Theft 32u Rack Cabinet,Anti Theft 32u server rack,IP55 32u Rack Cabinet |
||
Product Description
Anti Theft IP55 32u Rack Cabinet With Three Point Locking System
1. Weatherproof Outdoor Telecom Cabinet Overview
· Outdoor cabinet suitable for a variety of outdoor environments.
· IP degree:IP55
· Variety material:Galvanized steel,single wall
· Variety cooling options to choose,Fans,Air condition,Heat exchange
· Floor mounting,wall mounting,pole mounting optional
· Accept customized product.
2. Weatherproof Outdoor Telecom Cabinet Features
(1) Heavy duty outdoor construction
(2) Standard 19” rack rail
(3) Front access
(4) Anti-theft three-point locking system, support padlock
(5) Outdoor powder coating, anti-corrosion
3. Technical Data Sheet
| Model | ET7575175-EQ |
| Dimension | W×D×H 750×750×1750mm |
| 19” space | 32U |
| Door | One front door |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
| Material | Galvanized steel; single wall with thermal insulation |
| Color | RAL7035 grey |
| Installation method | Floor mount |
|
Cooling |
Air conditioner Power supply: AC220V 50Hz; Cooling Capacity: 1500W |
| Ventilation system | Two AC220V fans with one temperature controller |
| Illumination | AC220V LED lamp |
| LED Lamp Switch | Used for controlling led lamp on/ off |
| Working temperature | -40°C～+75°C |
| Ingress Protection | IP55 |
4. Application Area
Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable
5. Size Drawing

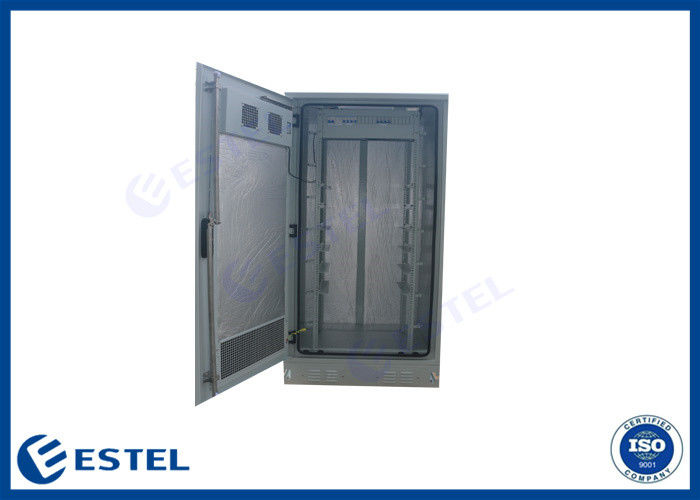

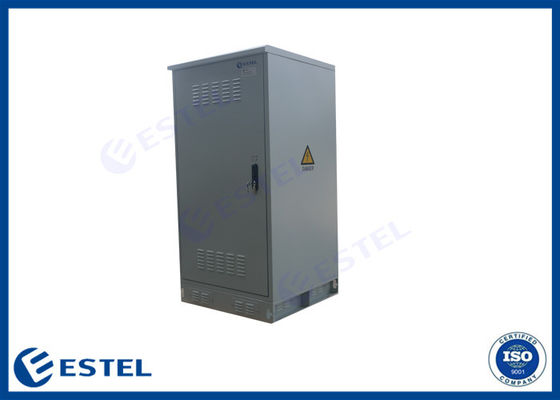

6. Cabinet Picture

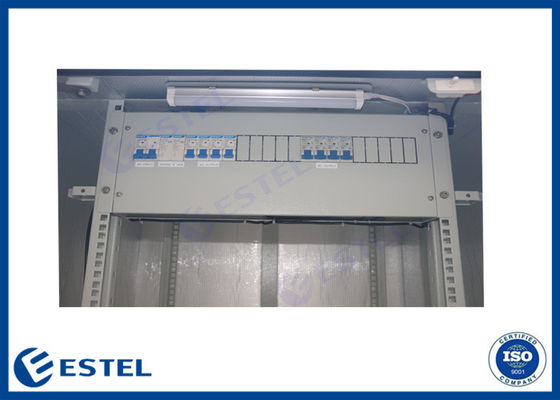

7. Cabinet inside Picture
8. Production Pictures
9. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
