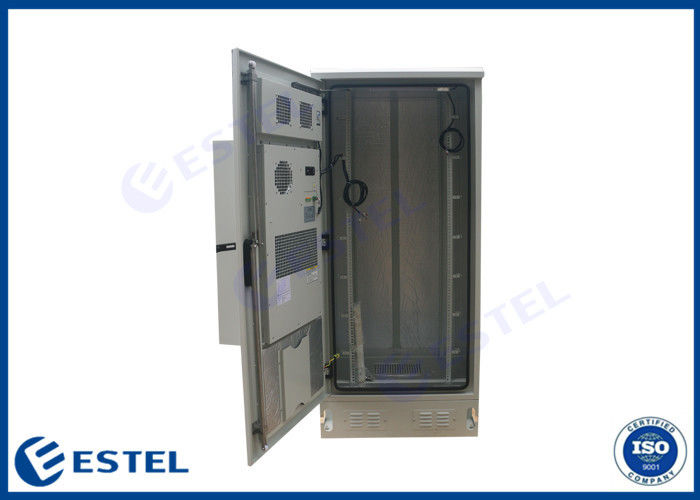

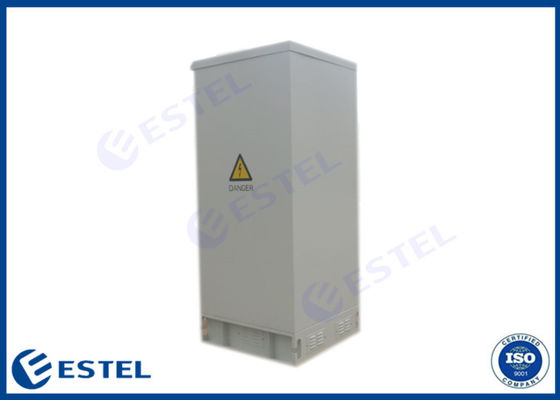

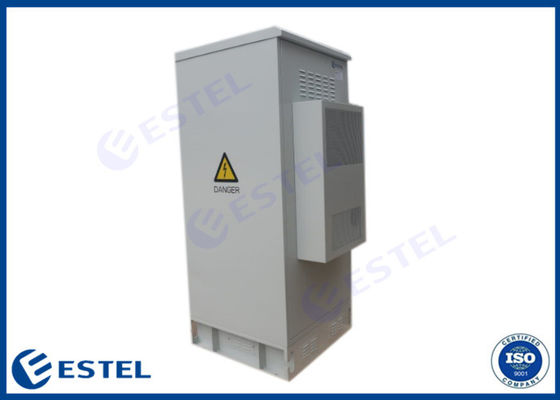

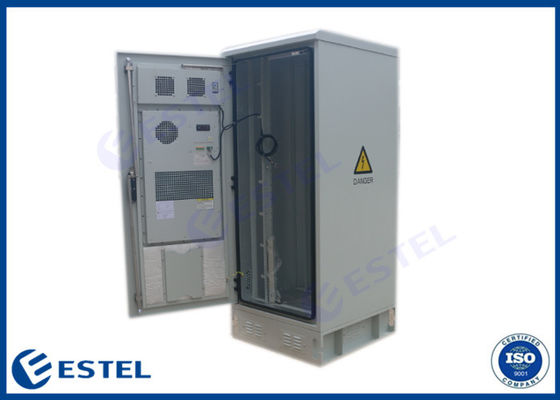

900mm Width IP55 Waterproof Electrical Enclosure Boxes
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, |
| Model Number: | ET9090210-EQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 2000 pcs/month |
|
Detail Information |
|||
| Size W×D×H: | 900×900×2100mm | 19” Space: | 40U |
|---|---|---|---|
| Material: | Galvanized Steel | Color: | RAL7035 Grey |
| Cooling: | Air Conditioner | Working Temperature: | -40°C～+75°C |
| Coating: | Outdoor Anti-corrosion Powder Coating | Structure: | Single Wall With Thermal Insulation |
| High Light: | IP55 Waterproof Electrical Enclosure Boxes,900mm width Waterproof Electrical Enclosure Boxes,900mm width weatherproof rack enclosure |
||
Product Description
IP55 Front Access Steel Wetherproof Outdoor Enclosure Active Cooling Sinle Wall Insulated Communication Cabinet
1. Applications
The Outdoor Telecom Cabinet, made from metallic material, can be used under various weathers and climates, providing outdoor physical work environment and safety system for wireless telecom station or wired network station. Operators without permission are not allowed to get access to the cabinet.
The ET9090210-EQ Outdoor Telecom Cabinet is mainly used in wireless communication base station:
(1) 4G system
(2) Communication/network integrated service
(3) Access/transmission switching station
(4) Emergency communication/transmission
(5) The cabinet is suitable for outdoor environment, such as road side, park, building roof, mountain area, flat ground, etc. The cabinet can be installed with base station equipments, power supply equipments, batteries, temperature control equipments, transmission equipments and other equipments, or the cabinet can reserve installation space and heat exchange capacity for the above equipments, providing reliable mechanical and environmental protection for normal operation of the internal equipments.
2. Features
ESTEL’s Energy Saving Integrated Cabinet provides complete solutions for outdoor working environment and safety management of telecom base station. As a base station, it can integrate the main equipments, system power supply, AC and DC power distribution, environment monitoring, batteries, lightning protection and grounding devices. As functional cabinet (battery cabinet, power supply cabinet, transmission cabinet etc.), it can help telecom carriers to realize easy station obtaining, energy saving, fast deployment.
-
The cabinet is weatherproof, such as sun-proof, dust-proof and rainproof, which is used in outdoor environment.
-
Cabinet cooling: air conditioner and auxiliary direct ventilation fans. MTBF≥50000h.
-
Ingress protection: IP55
-
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
-
All the cables used in the cabinet are made from flame retardant materials.
-
The cabinet includes grounding bar.
-
Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
-
Flame retardance: comply with GB5169.7 test A
-
Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
-
Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
-
Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
3. Advantages
(1) High integrated
High compatibility, high integration
Supporting multiple equipments, good appearance
(2) Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
Single compartment / Two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof
4. Specifications
(1) Technical Parameters
|
Item |
Type |
Technical Parameter |
|
Structure |
Dimension |
External Dimension: W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm (19”,40U) |
|
Layout |
1 compartment |
|
|
Equipment Installation Method |
19” rack |
|
|
Door |
With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
|
|
Material |
Galvanized steel, single wall with heat insulation |
|
|
Ingress Protection |
IP55 |
|
|
Temperature Control |
Cooling |
Air conditioner and fans |
|
Lightning Proof |
Grade B lightning proof |
Nominal: 60KA, Max.: 100KA |
|
Lighting |
LED lamp |
AC110V LED lamp |
|
Temperature |
Temperature |
Working Temperature: -40°C ~ +55°C |
|
|
|
Storage Temperature: -50°C ~ + 70°C |
|
|
|
Transport Temperature: -50°C ~ +70°C |
|
Humidity |
Relative Humidity |
5% ~ 100% |
|
Pressure |
Air Pressure |
62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 ×(1±5%)W/m2 |
(2) Configuration List
|
No. |
Item |
Quantity |
Unit |
Specs |
|
1 |
Outdoor Telecom Cabinet |
1 |
Set |
(1) External Dimension:W×D×H 900×900×2100mm Internal Dimension: W×D×H800×800×1800mm (19”,40U) (2) One compartment: equipment compartment (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, single wall with heat insulation |
|
2 |
Air Conditioner |
1 |
Set |
Cooling capacity: 1500W, Power supply: AC110V, 60HZ, Heating function is optional |
|
3 |
Fans |
1 |
PC |
2 AC110V fans with one temperature controller |
|
4 |
Environment Monitoring System(Optional) |
1 |
Set |
Environment Monitoring Unit *1 ,DC48V,19", 1U; SNMP communication Water Sensor *1 Smoke Sensor *1 Temperature and Humidity Sensor *1 Door Sensor *1 Tilt & Shock Sensor *1 |
|
5 |
LED Lamp Switch |
1 |
PC |
Used for controlling LED lamp on/off |
|
6 |
LED Lamp |
1 |
PC |
AC110V |
|
7 |
Power Distribution Unit(Optional) |
1 |
Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 |
|
8 |
Package |
1 |
Set |
Wooden Case |
Drawing:
External Dimension:W×D×H 900×900×2100mm
Internal Dimension: W×D×H 800×800×1800mm
5. Details Diagram
