42U IP65 Telecom Cabinets With Air Conditioner

42U IP65 Telecom Cabinets With Air Conditioner

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET60100210-EQ-2D

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel, Single Wall With Thermal Insulation External SizeW×D×H: 600×1000×2100mm
Color: RAL7035 GREY Cooling System: Air Conditioner, Drawer Type Filter, Drainage Pipe
Surface Finish: Outdoor Powder Polyester Coating Protection Level: IP65
Type: Outdoor Cabinet For Transimision Warranty: 1 Year
High Light:

IP65 Telecom Cabinets

,

42U Telecom Cabinets

,

42U telecommunication enclosure

Product Description

42U IP65 Telecom Cabinets With Air Conditioner

42U IP65 Outdoor Telecom Cabinet Side Mount Air Conditioner Cooling Weatherproof Communication Enclosure Base Station





Brief



The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments. The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.



Features



● Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device, each lock has unique key

● Professional outdoor anti- corrosion powder coating, strong weather resistance

● Environmental friendly refrigerant of R134a for A/C cooling unit

● Single skin construction with foam insulation against hot outdoor condition for A/C cooling unit



Technical Parameters

Configuration Item Technical Parameter
Cabinet Body Model Outdoor cabinet
External Size

W×D×H: 600mm×1000mm×2100mm

W×D×H: 600mm×1000mm×1300mm

W×D×H: 900mm×900mm×2100mm

W×D×H: 800mm×800mm×1800mm

W×D×H: 750mm×750mm×1750mm

W×D×H: 650mm×650mm×900mm

Various size for option, based on client’s actual requirement.

Component The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount
Material

Galvanized steel, single wall with heat insulation

1.5mm galvanized steel+20mm PEF

Structure

l Single wall with insulation

l One front door and one rear door, hidden zinc alloy hinge

l Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device, IP65 protection grade, each lock has unique key

l Door stopper / wind lock is installed on the inside of the cabinet door

l Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof

l Include standard 19“ rack inside the cabinet, high universality

l Including 2 equipment trays

l Equipped with cable manager

l Cable inlets at the bottom of cabinet

l 150mm cabinet base

Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester anti-corrosion powder coating light grey RAL 7035
Ingress Protection IP65
Working Temperature -40°C~+75°C
Cooling Method Compressor Air Conditioner

AC220V, 50Hz, 1500W; Installed on the side wall, the filter is drawer type;

Including drainage pipe





2D Drawing



                                                       42U IP65 Telecom Cabinets With Air Conditioner 0

42U IP65 Telecom Cabinets With Air Conditioner 1

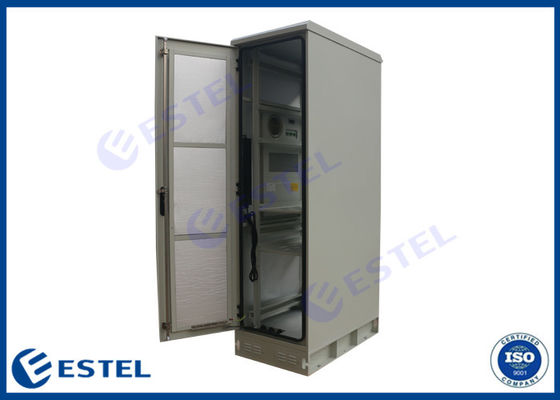

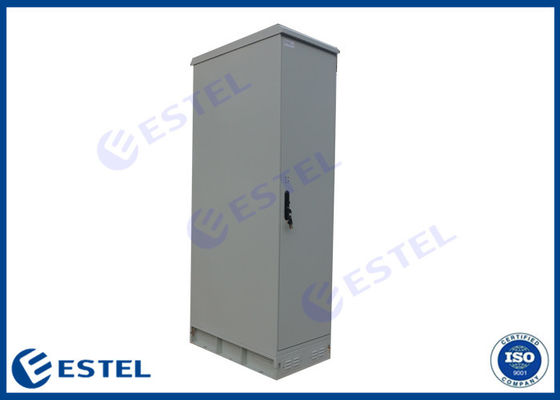

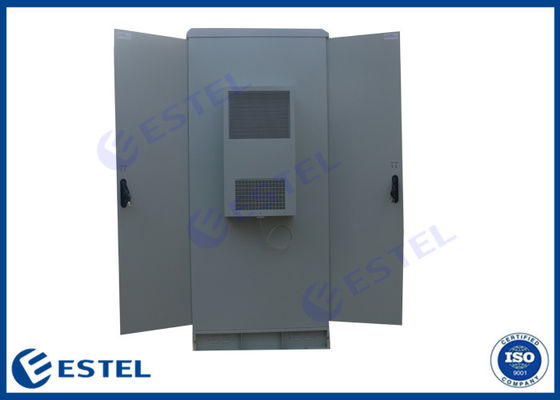

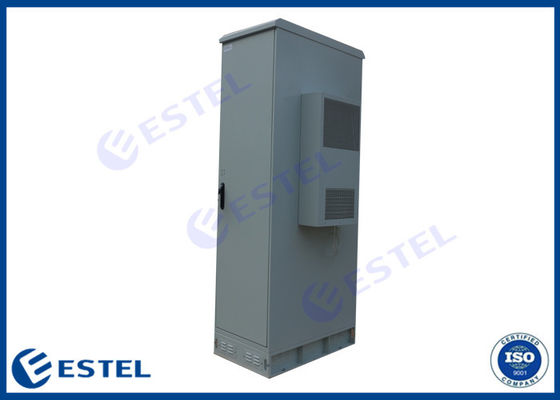

Cabinet Pictures



42U IP65 Telecom Cabinets With Air Conditioner 2 42U IP65 Telecom Cabinets With Air Conditioner 3

42U IP65 Telecom Cabinets With Air Conditioner 4





Details Design



42U IP65 Telecom Cabinets With Air Conditioner 5





Certificate

42U IP65 Telecom Cabinets With Air Conditioner 6





Patent



42U IP65 Telecom Cabinets With Air Conditioner 7
