Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure

Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET7585105-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

External Size: W750mm×D850mm×H1050mm Color: Black
Cooling System: 8 Fans With 2 Temperature Controller Surface Finish: Outdoor Powder Polyester Coating
Protection Level: IP55 Warranty: 1 Year
Material: Galvanized Steel Structure: Front Door, Single Wall
High Light:

19Inch Rack Outdoor Telecom Enclosure

,

16U Outdoor Telecom Enclosure

,

16U outdoor electronics enclosure

Product Description

Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure

IP55 16U 19 Inch Rack Waterproof Floor Standing Outdoor Telecom Enclosure Fan Cooling Metal Street Cabinet





Overview



ESTEL is a high-tech enterprise with R&D, manufacturing and sales department, ESTEL cabinet widely used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.



Provides integrated outdoor cabinet solutions for

- Telecommunication

- Data Center

- Base station

- Solar based installations

- Wireless cell sides & switches

- Industry Automation

- Energy Storage





Advantage



v ESTEL outdoor cabinet suitable for a variety of outdoor environments.

v Waterproof , Anti-corrosion ,Durable

v IP degree :IP55, IP65 ,IP66

v Variety material optional : Galvanized sheet ,Stainless Steel , Aluminum

v Variety cooling options to choose , Fans , Air condition ,Heat exchanger

v Floor mounting , wall mounting , pole mounting.

v Accept customized products.

v Provide inner equipment , include various sensors , power distribution box , monitor , battery , etc





Technical Parameter



Configuration Item Technical Parameter
Cabinet Body Model ET7585105-EQ
Size External Size: 750mm×850mm×1050mm(W×D×H)
Component The whole cabinet is composed of three parts: top cover, cabinet body and cabinet base. The installation method is floor mounted.
Material Galvanized steel, single wall, 1.5mm thick
Structure

l Single wall

l One front door, hidden zinc alloy hinge

l Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device

l Door stopper / wind lock is installed on the inside of the cabinet door

l Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof

l The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.

l Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made.

l Equipped with cable manager

l Cable inlets at the bottom of cabinet

Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester black powder coating or custom made
Ingress Protection IP55 or custom made
Working Temperature -40°C~+75°C
Cooling Method Compressor Air Conditioner /
Heat Exchanger /
TEC Air Conditioner /
Fan AC110V 60Hz, 8pcs. Including temperature adjustable controller.





Dimension Diagram



Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure 0






Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure 1



Ventilation fan working principle

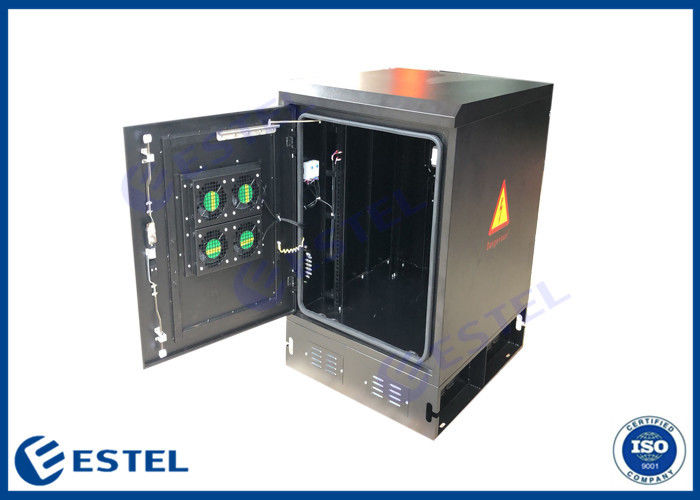

Totally 8 pcs fans, 4 pcs is on the front door, 4 pcs on the back wall.

Divided to 2 groups: front 2 pcs (air inlet) and back 2 pcs(air outlet) is a group.

front the other 2 pcs (air inlet) and back the other 2 pcs(air outlet) is another group.

For each fan group, we will include one temperature controller used for setting the fan starting temperature.



Situation1: When inside cabinet temperature is low(lower than a certain temperature), fan group 1 work; when inside cabinet temperature is high(higher than a certain temperature), fan group 2 start to work together.



Situation2: under normal situation, fan group 1 work ; when fan group 1 fails, temperature becomes high, fan group 2 will work as backup.



Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure 2







Fan inlcude outer cover for waterproof and dustproof.


Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure 3



Each group of fan includes one temperature sdjustable controller, totally 2.



Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure 4







Packing and Shipping



One 40 feet container loading .


Waterproof 16U 19Inch Rack Outdoor Telecom Enclosure 5
