Galvanized Steel ISO9001 15U Outdoor Telecom Enclosure

Galvanized Steel ISO9001 15U Outdoor Telecom Enclosure

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET6060100-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel External SizeW×D×H: 600×600×1000mm
Surface Finish: Outdoor Powder Polyester Coating Protection Level: IP55
Type: Outdoor Cabinet 19 Inch Space: 15U
High Light:

15U Outdoor Telecom Enclosure

,

ISO9001 Outdoor Telecom Enclosure

,

15U outdoor telecom cabinet

Product Description

Galvanized Steel ISO9001 15U Outdoor Telecom Enclosure



15U Galvanized Steel Single Wall Outdoor Telecom Enclosure Weatherproof Outdoor Communication Cabinet



Introduction



ESTEL is an OEM outdoor enclosure manufacturer. We provide a large variety of standard sizes from 6U to 42U high, and from 600mm to 1200mm deep, with adjustable 19”/23” racking rails, front and rear doors and 3 point locking system with pad locking handles. Designed for telecommunication industry, our enclosures can be deployed in harsh outdoor environments both rural or residential.



Application



Provides a secure, climate controlled environment for any electronic equipment. Telecommunications

Wireless/Broadband Fiber Optics Backhaul

Base Station Small Cell/DAS Utility

Military

Trailer-based Communications Wi-Fi

Flexible and Scalable



Features



● Heavy duty outdoor construction

● 15 rack units (RU), standard 19” rail

● Front access (rear access optional)

● Anti-theft three-point locking system, support padlock

● Outdoor powder coating, anti-corrosion

● Standard Color: light grey, RAL7035. Custom color available

● Cable inlet at cabinet bottom

● Include grounding bar

● Include door stopper

● Optional cooling solutions: fan ventilation, air conditioner, heat exchanger



Dimension

Galvanized Steel ISO9001 15U Outdoor Telecom Enclosure 0

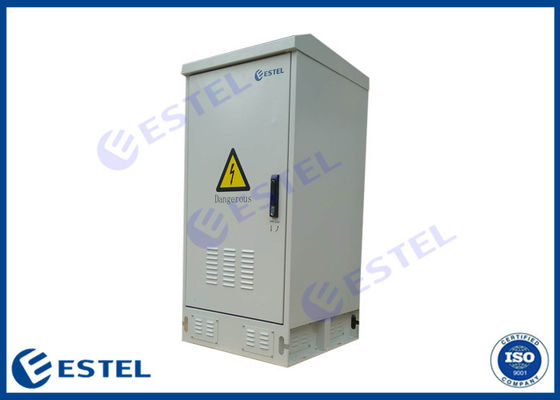

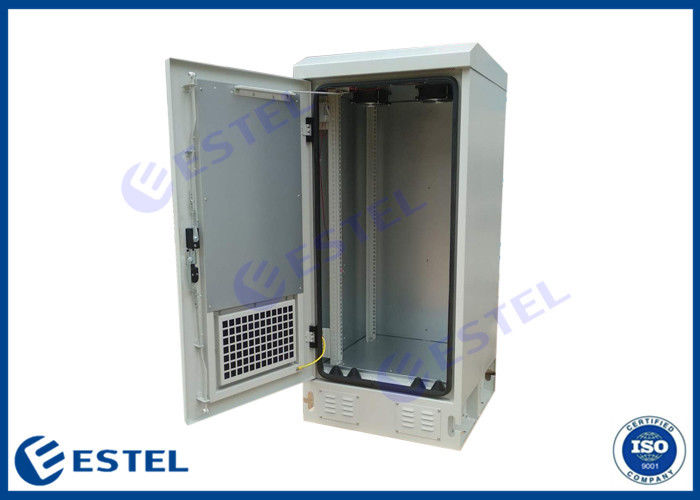

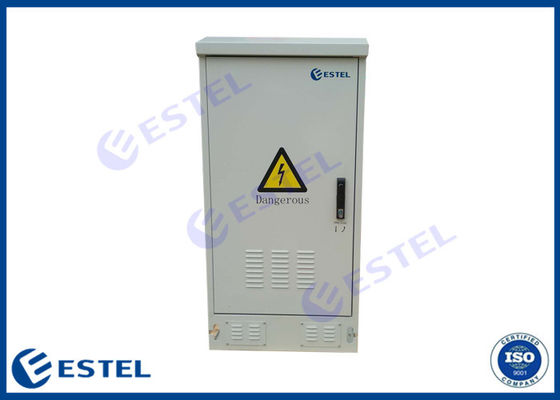

Product Picture



Galvanized Steel ISO9001 15U Outdoor Telecom Enclosure 1 Galvanized Steel ISO9001 15U Outdoor Telecom Enclosure 2





Specification



Configuration Item Technical Parameter





















Cabinet Body

Model ET6060100-EQ

External Dimension

(include plinth)



600mm(W)×600mm(D)×1000mm(H)

Internal Space 15U
Cooling Mode Fan
Maintenance Front operation&maintenance



Material

Galvanized steel
single wall, without thermal insulation
Security Lock 3 point locking system
Protection Level IP55
Installation Floor mounted
Surface Treatment Outdoor polyester powder coating
Color Light grey RAL7035 coating or custom made







Cooling Method

Compressor Air

Conditioner

Optional

Heat Exchanger Optional
TEC Air Conditioner Optional
Fan Two AC220V fans with one temperature controller







Environment

Operating

Temperature



-40°C~+75°C

Storage & Transport

Temperature



-40°C~+70°C

Operating Humidity 5%~100%



Others

Lighting AC220V LED lamp
Sensors Optional
