Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE,
Model Number: ET8080200-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with pallet
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 2000 pcs/month
Get Best Price Contact Now

Detail Information

Size W×D×H: 800×800×2000mm Material: Galvanized Steel
Color: RAL7035 Grey Cooling: Air Conditioner And Fans
IP Grade: IP55 Coating: Outdoor Anti-corrosion Powder Coating
Structure: Single Wall With Thermal Insulation Useage: Outdoor
High Light:

ISO9001 Weatherproof Telecom Enclosure

,

IP55 Weatherproof Telecom Enclosure

,

IP55 outdoor weatherproof cabinets for electronics

Product Description

Galvanized Steel IP55 ISO9001 Weatherproof Telecom Enclosure





IP55 Single Wall Insulated Weatherproof Outdoor Enclosure Galvanized Steel Anti-Corrosion Outdoor Telecom Enclosure





1. Specifications:



(1) Technical Parameters





Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 800×800×2000mm
Layout 1 compartment
Equipment Installation Method Upper part: 19” rack; lower part: two battery shelves.
Door With one front door, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall with heat insulation
Ingress Protection IP55
Temperature Control Cooling AC220V 50Hz air conditioner and AC220V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp AC220V LED lamp and LED lamp switch
Temperature Temperature Working Temperature: -40°C ~ +75°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2




(2)Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W×D×H 800×800×2000mm

(2) Layout: the upper part is 19” installation rack, the lower part is two battery shelves.

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock).

(4) Material: galvanized steel, single wall with heat insulation.

2 Air Conditioner 1 Set

Cooling Capacity: 1500W;

Power Supply: AC220V 50HZ

3 Fan 1 Set Two AC220V fans with one temperature controller
5 LED Lamp Switch 1 PC Used for controlling LED lamp on/off
6 LED Lamp 1 PC AC220V
7 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4

8 Package 1 Set Wooden Case with pallet




2. Applications



The ET8080200-UP outdoor telecom cabinet is for holding telecom equipment, power system and batteries, mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Advantages



(1) High compatibility, high integration, good appearance

(2) Energy saving and high efficiency cooling system

(3) Flexible structure

(4) Fast deployed

(5) Theft - proof, inside installation, inside fixing, no outer screws; anti-theft three point lock; Inside door hinges, multiple protection; embedded cabinet door



4. Details Pictures



Galvanized Steel IP55 ISO9001 Weatherproof Telecom Enclosure 0

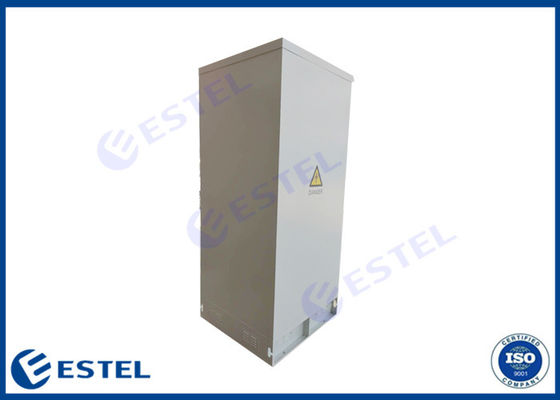

5. Cabinet picture



Galvanized Steel IP55 ISO9001 Weatherproof Telecom Enclosure 1



6. Wooden case package



Galvanized Steel IP55 ISO9001 Weatherproof Telecom Enclosure 2
