Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET24080200-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with pallet
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel, Single Wall With Heat Insulation Color: RAL7035 Grey
Surface Finish: Outdoor Powder Polyester Coating Protection Level: IP55
External Size: W×D×H 2400×800×2000mm Door: 3 Front Doors
Cooling System: Air Conditioner Working Temperature: -40°C ~ +75°C
High Light:

Three Compartment Telecommunication Enclosure

,

IP55 Telecommunication Enclosure

,

IP55 outdoor electronics enclosure

Product Description

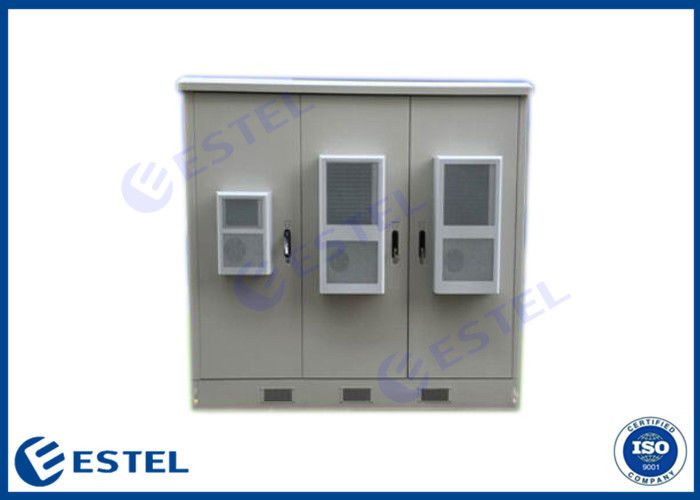

3 Front Door IP55 Three Compartment Telecommunication Enclosure



Three Compartment Outdoor Telecom Enclosure Customized Equipment Battery Temperature Control Cabinet



Overview



ESTEL is a high-tech enterprise with R&D, manufacturing and sales department, ESTEL cabinet widely used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.

Provides integrated outdoor cabinet solutions for

- Telecommunication

- Data Center

- Base station

- Solar based installations

- Wireless cell sides & switches

- Industry Automation

- Energy Storage



Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 2400×800×2000mm
Layout 3 compartments
Equipment Installation Method 19” rack, battery shelves are optional
Door With 3 front doors, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall with heat insulation
Ingress Protection IP55
Temperature Control Cooling Air conditioner and DC48V fans
Lighting LED lamp DC48V LED lamp and LED lamp switch
Temperature Temperature Working Temperature: -40°C ~ +75°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2




Accessories List





No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W×D×H 2400×900×2000mm

(2) 19” installation rack, battery shelves.

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock).

(4) Material: galvanized steel, single wall with heat insulation.

2 Air Conditioner 3 Set

Cooling Capacity: 1500W; Power Supply: AC220V 50HZ

Cooling for equipment compartment



Cooling Capacity: 500W; Power Supply: AC220V 50HZ

Cooling for battery compartment

3 Fan 3 Set Two DC48V fans with one temperature controller
4 LED Lamp Switch 3 PC Used for controlling LED lamp on/off
5 LED Lamp 3 PC DC48V
6 Package 1 Set Wooden Case







Advantages





v Direct sales from manufacturers to increase your profit margin

v Strict quality inspection and stable quality

v Provide various customized products

v Fast delivery, no worry about delivery time

v Perfect after-sales system

v ESTEL outdoor cabinet suitable for a variety of outdoor environments.

v Waterproof , Anti-corrosion ,Durable

v IP degree :IP55, IP65 ,IP66

v Variety material optional : Galvanized sheet ,Stainless Steel , Aluminum

v Variety cooling options to choose , Fans , Air condition ,Heat exchanger

v Floor mounting , wall mounting , pole mounting.

v Accept customized products.

v Provide inner equipment , include various sensors , power distribution box , monitor , battery , etc

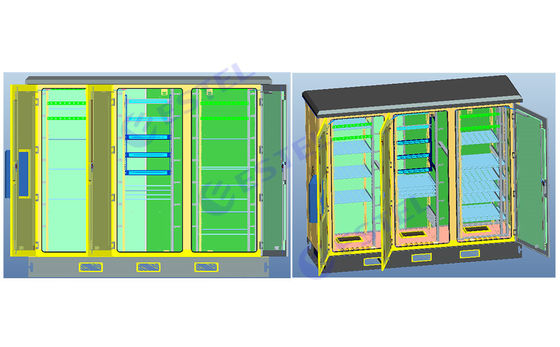

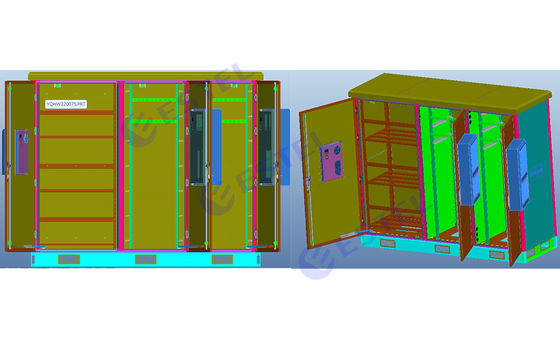

Product Diagram(four options)



3 Front Door IP55 Three Compartment Telecommunication Enclosure 0

3 Front Door IP55 Three Compartment Telecommunication Enclosure 1

3 Front Door IP55 Three Compartment Telecommunication Enclosure 2

3 Front Door IP55 Three Compartment Telecommunication Enclosure 3
