Grey IP55 20U Outdoor Weatherproof Electrical Enclosures

Grey IP55 20U Outdoor Weatherproof Electrical Enclosures

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET6060120-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel, Double Wall With Heat Insulation External Size: W×D×H 600×600×1200mm
Ingress Protection: IP55 Cooling: Air Conditioner
Coating: Outdoor Anti-corrosion Powder Coating Color: RAL7035 Grey
Working Temperature: - 40 ℃~ + 55 ℃ Door: One Front Door
19” Space: 20U Illumination: DC48V LED Lamp
High Light:

20U Outdoor Weatherproof Electrical Enclosures

,

IP55 Outdoor Weatherproof Electrical Enclosures

,

IP55 weatherproof electrical cabinet

Product Description

Grey IP55 20U Outdoor Weatherproof Electrical Enclosures



Double Skin Thermal Insulation 20U Weatherproof Outdoor Enclosure IP55 Steel Outdoor Telecom Cabinet



Summary



The outdoor telecom cabinet ET6060120-EQ has been designed to house sensitive electronic equipments for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, networking etc.



The cabinet is configured with fully locking door to front face allowing for access from front side of the electrical equipment being integrated. The construction of the cabinet consists of a dual skinned, thermally insulated chamber for maximum protection against solar gain and ambient temperature.





Feature

  • Front door to access the inside equipment
  • Anti corrosion powder coating
  • Standard 19“ rack for installation
  • IP55
  • Cooling by air conditioner and emergency fan
  • High integration, compact structure, easy installation and migration on later stage
  • Anti-theft lock, excellent keyhole protection device
  • -48VDC LED light is switched on during the door being opened

Technical Parameters

Configuration Item Technical Parameter
Cabinet Body Model ET6060120-EQ
Size

External Size: 1200mm×600mm×600mm(H×W×D)

Internal Space: 19” 20U.

Component The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted.
Material Galvanized steel, double wall, with insulation
Structure
  • One front door
  • Anti-theft lock device
  • Door stopper / wind lock is installed on the inside of the cabinet door
  • Door with good sealing, waterproof and dustproof
  • Include standard 19“ rack inside the cabinet, high compatibility.
  • Equipped with cable manager
  • Cable inlets at the bottom of cabinet
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Light grey
Ingress Protection IP55
Working Temperature -40°C~+75°C
Cooling Method Air Conditioner

Cooling Capacity: 500W

Power Supply: 220VAC, 50Hz

Fan -48VDC, temperature adjustable
Other Illumination LED light, -48VDC

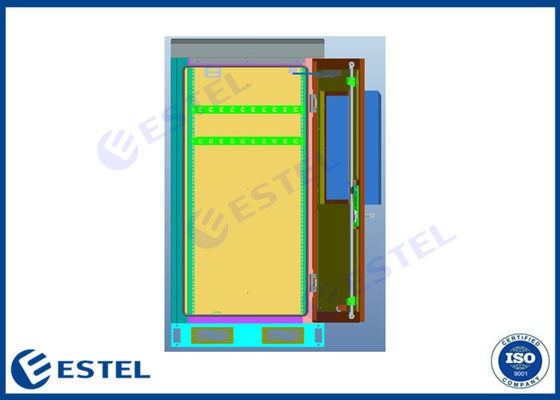

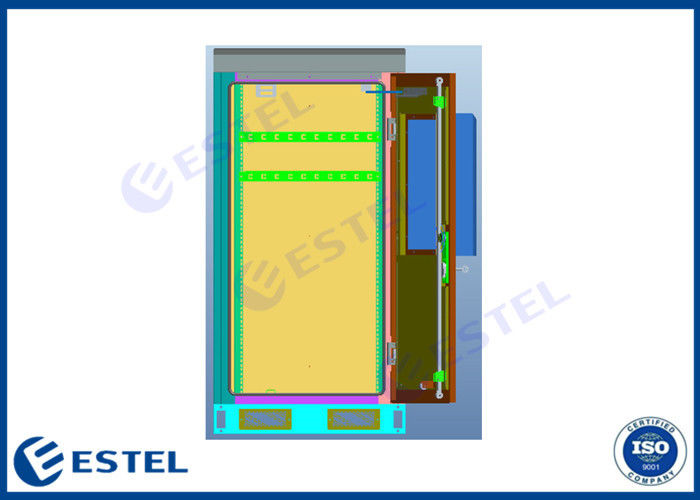

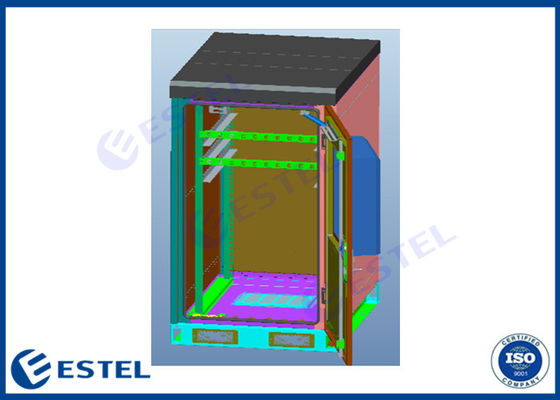

Cabinet Diagram



Grey IP55 20U Outdoor Weatherproof Electrical Enclosures 0





Shiping and Loading Container



 Grey IP55 20U Outdoor Weatherproof Electrical Enclosures 1
