Dustproof 34U IP65 Weatherproof Telecom Enclosure

Dustproof 34U IP65 Weatherproof Telecom Enclosure

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET8080180-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Depends on order quantity
Packaging Details: Wooden case + Pallet
Delivery Time: 20 -30 days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 1500 sets per month
Get Best Price Contact Now

Detail Information

Height: 34U Protection: Waterproof, Dustproof, Sunproof
Cable Entry: Bottom Size: W*D*H 800*800*1800
Material: Galvanized Steel, Double Wall With Heat Insulation IP Level: IP65
Color : RAL7035 Cooling: AC220V 50Hz 1500W Air Conditioner
High Light:

IP65 Weatherproof Telecom Enclosure

,

34U Weatherproof Telecom Enclosure

,

34U weatherproof electrical cabinet

Product Description

Dustproof 34U IP65 Weatherproof Telecom Enclosure



34U 19 Inch Rack IP65 Waterproof Outdoor Enclosure Air Conditioner Cooling Sunproof Rainproof Dustproof Cabinet





Overview



ESTEL is at the forefront in the development of secure, high dependability and innovative designs of outdoor cabinets & enclosures. Our close collaboration with major communication providers has resulted in products providing security and environmental protection for sensitive electronics.



These cabinets can vary in size, from relatively small street-side cabinets to large walk-in cabins located trackside, on train platforms, green field sites, street-side etc.



The ESTEL outdoor cabinet range provides single or multi-chamber, temperature controlled secure environment for valuable sensitive communications, electronic & electrical equipment, in a cost effective and space saving manner.





Feature


● Front door to access the inside equipment
● Anti corrosion outdoor powder coating
● Standard 19“ rack for installation
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft lock, excellent keyhole protection device
● Have good anti-seismic, up to grade 8
● Embedded door, enhance anti-theft
● Cabinets are sealed up-to IP65 and are tailor made to suit customers' specific equipment, including material, size, cooling, internal structure.
● Additional essential features protect against the dangers of dust, humidity, rain, moisture and physical attack.
● Ultra-quiet radial fans combined with air reservoirs contained in large cabinets produce low noise and high volume air flow providing maximum cooling without the need or expense of air conditioning or refrigeration techniques.
● Protection is provided from the suns heat using double wall technology, thermal chamber and high performance insulation minimise the effects of solar heat gain and the transference of heat/cold. Reducing these threats can eliminate hot spots and condensation decreasing the failure of sensitive communications or other electronic equipment.


Technical Parameters



Type Outdoor Cabinet
Model ET8080180-EQ
External size W800*D800*H1800mm
Material Galvanized steel, double wall with heat insulation
Internal capacity 34U, 19” inch rack
Door With one front door.
Color RAL7035
Protection Grade IP65
LED light With LED light and was controlled by the door opened/closed.
Mount Method Floor mount
Cooling AC220V 50Hz 1500W air conditioner
Package Wooden case with pallet
Working Temperature -40°C~+75°C

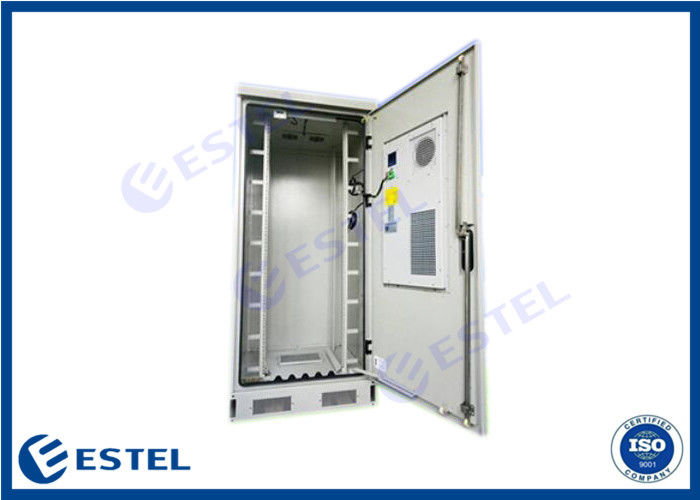

Cabinet Picture



Dustproof 34U IP65 Weatherproof Telecom Enclosure 0

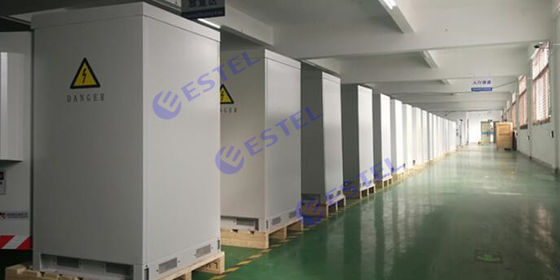

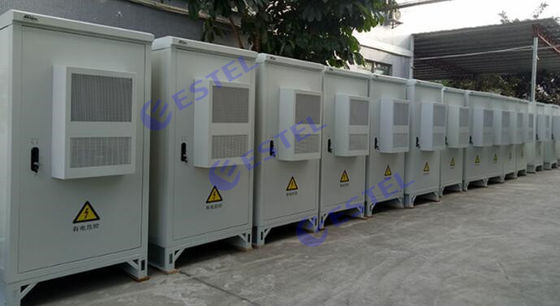

Our Factory and Product



Dustproof 34U IP65 Weatherproof Telecom Enclosure 1

Dustproof 34U IP65 Weatherproof Telecom Enclosure 2

Dustproof 34U IP65 Weatherproof Telecom Enclosure 3
