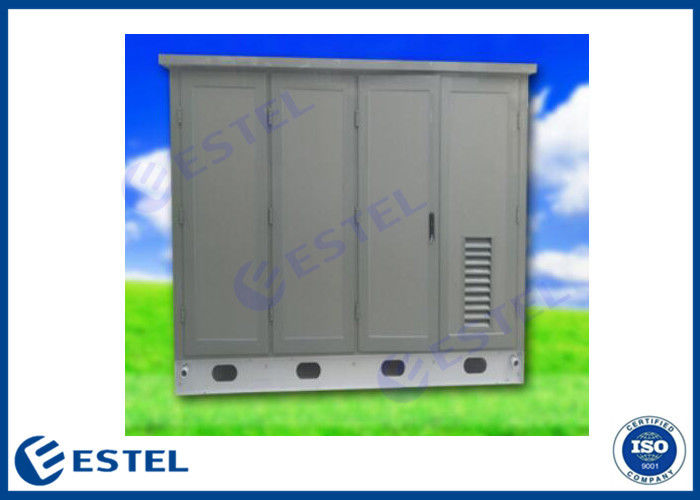

42U 4 Compartment Weatherproof Telecom Enclosure With Fans
Product Details:
Place of Origin: | China |
Brand Name: | ESTEL |
Certification: | ISO9001 |
Model Number: | ET285100210 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Depends on order quantity |
Packaging Details: | Wooden case + Pallet |
Delivery Time: | 20 -30 days |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 1500 sets per month |
Detail Information |
|||
Height: | 42U | Protection: | Waterproof, Dustproof, Sunproof |
---|---|---|---|
Layout: | 4 Compartments | Size: | W×D×H 2850×1000×2100mm |
Material: | Galvanized Steel, Single Wall | IP Level: | IP55 |
Color : | Outdoor Anti-corrosion Powder Coating RAL7035 | Cooling: | Fans With Temperature Controller |
Highlight: | 4 Compartment Weatherproof Telecom Enclosure,42U Weatherproof Telecom Enclosure,42U telecom equipment cabinet |
Product Description
Multiple Compartment Big Weatherproof Outdoor Enclosure IP55 Telecom Base Station Cabinet Theftproof
1. Specifications:
(1) Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension: W×D×H 2850×1000×2100mm |
Layout | 4 compartment | |
Equipment Installation Method | 19” rack and tray | |
Door | With four front doors, and special lock for outdoor cabinet (support padlock) | |
Material | Galvanized steel, single wall | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | AC220V fan |
Lighting | LED lamp | AC220V LED lamp and LED lamp switch |
Temperature | Temperature | Working Temperature: -40°C ~ +75°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2)Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W×D×H 2850×1000×2100mm (2) Layout: 4 compartments (3) With four front doors, and anti-theft three point lock for outdoor cabinet (support padlock). (4) Material: galvanized steel, single wall (5) IP55 |
3 | Fan | 3 | Set | Two AC220V fans with one temperature controller |
4 | LED Lamp Switch | 4 | PC | Used for controlling LED lamp on/off |
5 | LED Lamp | 4 | PC | AC220V |
6 | Package | 1 | Set | Wooden Case with pallet |
2. Applications
Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable
3. Feature
(1) High compatibility, high integration, good appearance
(2) Energy saving and high efficiency cooling system
(3) Flexible structure
(4) Fast deployed
(5) Theft - proof, inside installation, inside fixing, no outer screws; anti-theft three point lock; Inside door hinges, multiple protection; embedded cabinet door

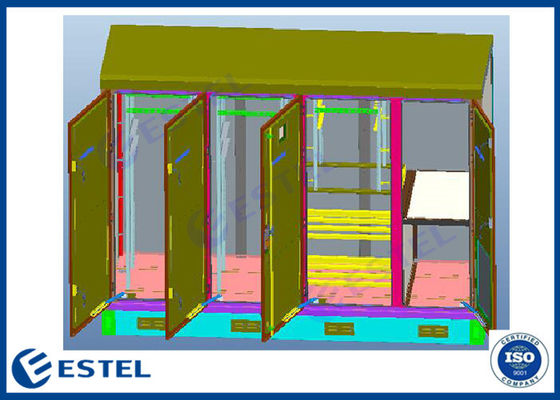

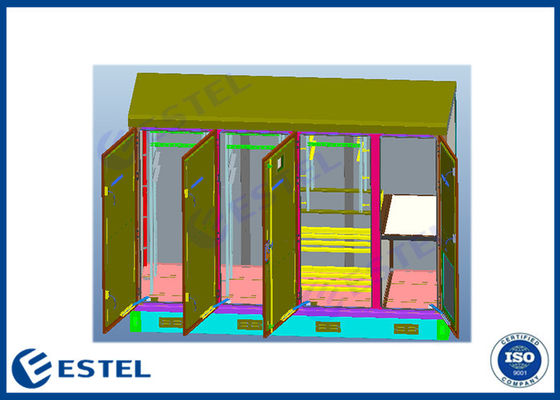

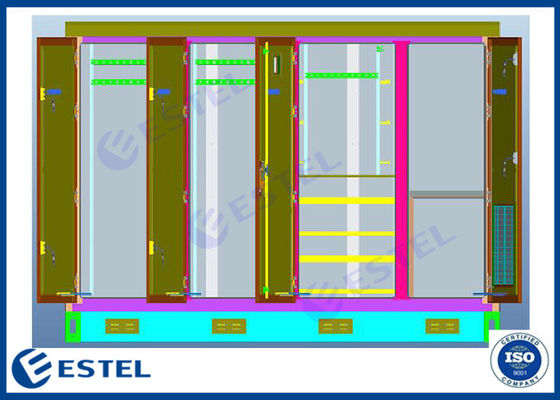

4. Cabinet Diagram
