19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box

19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET156100195

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Depends on order quantity
Packaging Details: Wooden case + Pallet
Delivery Time: 20 -30 days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 1500 sets per month
Get Best Price Contact Now

Detail Information

Protection: Waterproof, Dustproof, Sunproof Layout: 2 Compartments
Size: W×D×H 1560×1000×1950mm Material: Galvanized Steel, Double Wall With Heat Insulation
IP Level: IP55 Color : Outdoor Anti-corrosion Powder Coating RAL7035
Cooling: Air Conditioner Door: 2 Front Doors And 2 Back Doors
High Light:

1000mm depth Outdoor Electrical Enclosure Box

,

ESTEL Outdoor Electrical Enclosure Box

,

ESTEL waterproof electrical enclosure boxes

Product Description

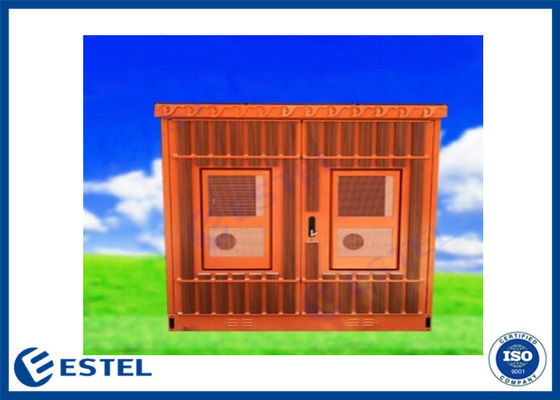

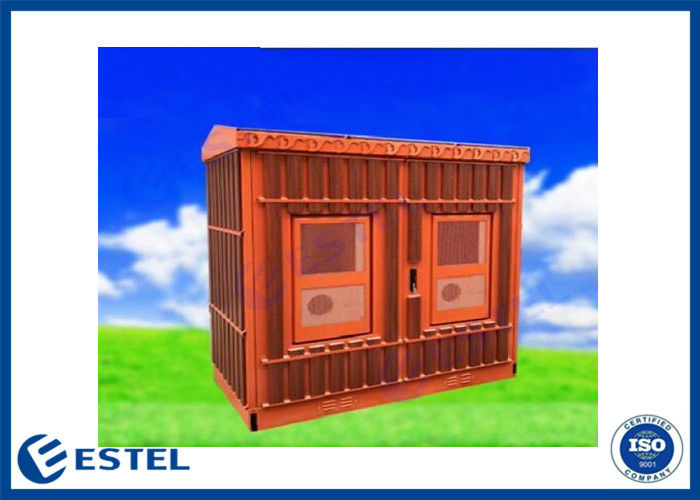

19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box



Two Compartment Weatherproof Outdoor Enclosure Outdoor Beautification Cabinet IP55 With Air Conditioner



1. Specifications:

(1)Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 1560×1000×1950mm
Layout 2 compartment
Equipment Installation Method 19” rack, tray, battery shelf
Door With two front doors and two rear doors, and anti-theft for outdoor cabinet (support padlock)
Material Galvanized steel, double wall with heat insulation
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner
Lighting LED lamp AC220V LED lamp and LED lamp switch
Temperature Temperature Working Temperature: -40°C ~ +75°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2




(2)Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W×D×H 1560×1000×1950mm

(2) Layout: 2 compartments

(3) With two front doors and two back door, and anti-theft three point lock for outdoor cabinet (support padlock).

(4) Material: galvanized steel, double wall with heat insulation

(5) IP55

3 Air Conditioner 2 Set AC220V 50Hz 1500W air conditioner
4 LED Lamp Switch 4 PC Used for controlling LED lamp on/off
5 LED Lamp 4 PC AC220V
6 Package 1 Set Wooden Case with pallet







2. Applications



Provides a secure, climate controlled environment for any electronic equipment.

Telecommunications

Wireless/Broadband

Fiber Optics

Backhaul

Base Station

Small Cell/DAS

Utility

Military

Trailer-based Communications

Wi-Fi

Flexible and Scalable





3. Feature



(1) High compatibility, high integration, good appearance

(2) Energy saving and high efficiency cooling system

(3) Flexible structure

(4) Fast deployed

(5) Theft - proof, inside installation, inside fixing, no outer screws; anti-theft three point lock; Inside door hinges, multiple protection; embedded cabinet door

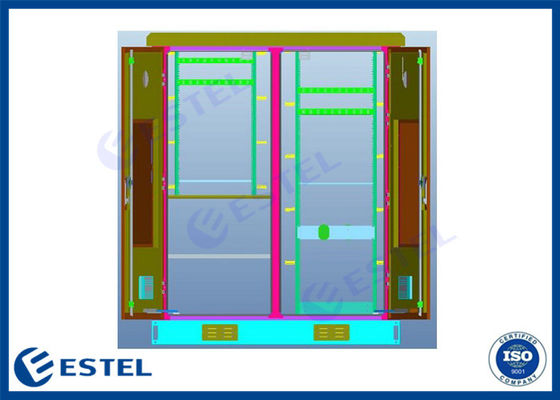

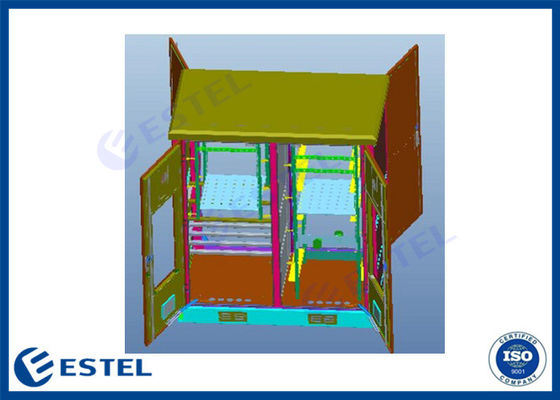

4. Cabinet Diagram



19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box 019” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box 1





5. Factory



19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box 2



6. Qualification



19” Rack ESTEL 1000mm Depth Outdoor Electrical Enclosure Box 3
