Customized ISO9001 1850mm Height Weatherproof Electronics Box

Customized ISO9001 1850mm Height Weatherproof Electronics Box

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET12080185

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Depends on order quantity
Packaging Details: Wooden case + Pallet
Delivery Time: 20 -30 days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 1500 sets per month
Get Best Price Contact Now

Detail Information

Protection: Waterproof, Dustproof, Sunproof Layout: 1 Equipment Bay And 1 Battery Bay(side)
Size: W×D×H 1200×800×1850mm Material: Galvanized Steel, Single Wall With Heat Insulation
IP Level: IP55 Color : Outdoor Anti-corrosion Powder Coating RAL7035
Door: 1 Front Door, 1 Back Door And 1 Side Door Cooling: Air Conditioner
High Light:

1850mm height Weatherproof Electronics Box

,

ISO9001 Weatherproof Electronics Box

,

ISO9001 outdoor weatherproof electrical enclosures

Product Description

Customized ISO9001 1850mm Height Weatherproof Electronics Box



Customized Weatherproof Outdoor Enclosure One Front Access Equipment Compartment One Side Access Battery Compartment





Overview



ESTEL is a high-tech enterprise with R&D, manufacturing and sales department, ESTEL cabinet widely used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.

Provides integrated outdoor cabinet solutions for

- Telecommunication

- Data Center

- Base station

- Solar based installations

- Industry Automation

- Energy Storage

- Wireless cell sides & switches





Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension: W×D×H 1200×800×1850mm
Layout 2 compartments
Equipment Installation Method 19” rack, battery shelves
Door With 1 front door, 1 back door, 1 side door. and special lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall with heat insulation
Ingress Protection IP55
Temperature Control Cooling Air conditioner
Lighting LED lamp DC48V LED lamp and LED lamp switch
Temperature Temperature Working Temperature: -40°C ~ +75°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2




Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W×D×H 1200×800×1850mm

(2) 19” installation rack, battery shelves.

(3) With one front door, one back, one side door, and anti-theft three point lock for outdoor cabinet (support padlock).

(4) Material: galvanized steel, single wall with heat insulation.

2 Air Conditioner 1 Set

Cooling Capacity: 1500W; Power Supply: AC220V 50HZ

Cooling for equipment compartment

3 LED Lamp Switch 3 PC Used for controlling LED lamp on/off
4 LED Lamp 3 PC DC48V
5 Package 1 Set Wooden Case with pallet





Advantages



v Direct sales from manufacturers to increase your profit margin

v Strict quality inspection and stable quality

v Provide various customized products

v Fast delivery, no worry about delivery time

v Perfect after-sales system

v ESTEL outdoor cabinet suitable for a variety of outdoor environments.

v Waterproof , Anti-corrosion ,Durable

v IP degree :IP55, IP65 ,IP66

v Variety material optional : Galvanized sheet ,Stainless Steel , Aluminum

v Variety cooling options to choose , Fans , Air condition ,Heat exchanger

v Floor mounting , wall mounting , pole mounting.

v Accept customized products.

v Provide inner equipment , include various sensors , power distribution box , monitor , battery , etc





Strict quality, stable quality



In order to ensure the high quality of products, we have more than 30 kinds of professional testing equipment, 1000 square meters testing laboratory.



ISO quality management system and 7S management, strict factory testing to ensure the stability of each product.





Professional to provide a variety of customized



With more than 5000 customers' customization experience, customized services can be customized according to drawings and prices.



The R & D department, design department and technology department are composed of senior industry professionals.

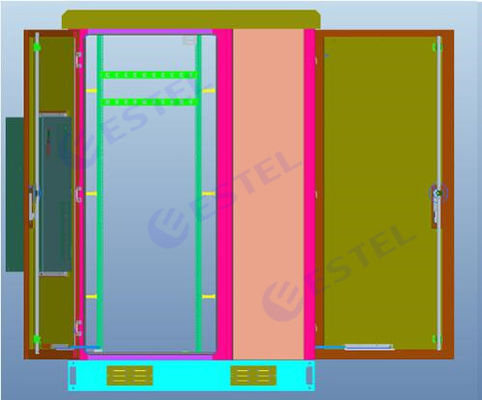

Product Diagram

Customized ISO9001 1850mm Height Weatherproof Electronics Box 0

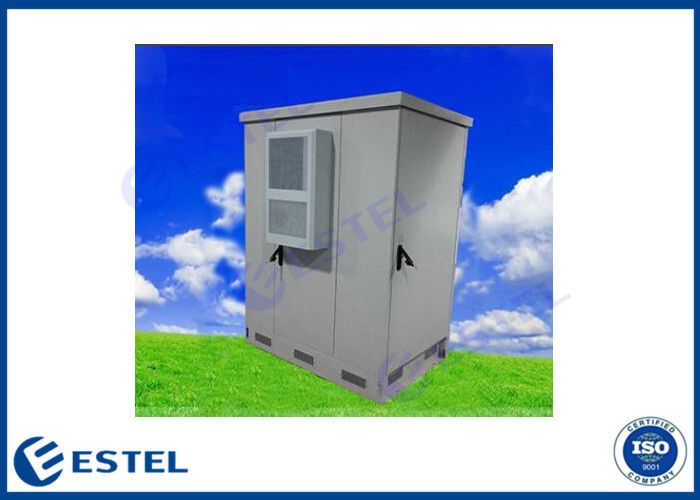

Similar Cabinet Picture



Customized ISO9001 1850mm Height Weatherproof Electronics Box 1





Factory Picture



Customized ISO9001 1850mm Height Weatherproof Electronics Box 2
