Three Battery Layers DC48V Fans FCC Outdoor Electronics Cabinet

Three Battery Layers DC48V Fans FCC Outdoor Electronics Cabinet

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 231090821050007-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

External Size: W*D*H 900*800*2100mm Cabinet Lock: Anti-theft Three Point Lock(support Padlock)
Cable Inlets: From Cabinet Bottom Mounting Type: Floor Mount
Cooling System: Air Conditioner And Fan Protection Level: IP55
High Light:

FCC Outdoor Electronics Cabinet

,

DC48V Fans Outdoor Electronics Cabinet

,

DC48V Fans weatherproof network enclosure

Product Description

Three Battery Layers DC48V Fans FCC Outdoor Electronics Cabinet



Air Conditioner Integrated Galvanized Steel Outdoor Battery Cabinet With Three Battery Layers





1. Cabinet Application





We offer an extensive range of products including telecom outdoor cabinet, telecom indoor cabinet, residential and commercial enclosure, electronic enclosures, electrical enclosure, industrial automation enclosure, and hybrid battery enclosures.



The outdoor battery cabinet can be customized according to customer's battery size. The cabinets can be equipped with DC Air-conditioners, DC Heat Exchangers, DC fans and much more that is suitable for its environment.  The surface treatment of the outdoor battery cabinet is standard special anti-corrosion treatment. Standard cabinet color is RAL7035, cabinet color can be custom made.







2. Cabinet Features





2.1 Dimensions: W*D*H 900*800*2100mm,

2.2 Dustproof, Sunproof and Rainproof.

2.3 Inner Structure: three or four battery trays
2.4 Layout : one compartment

2.5 DC air conditioner for cooling

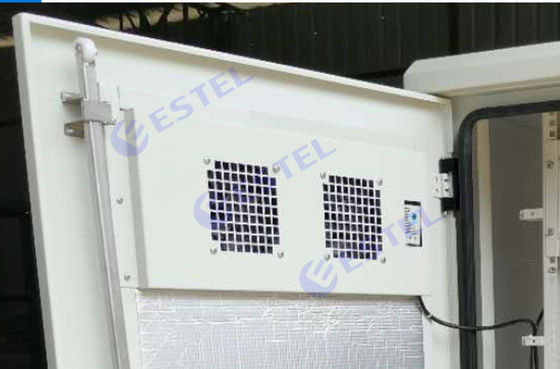

2.6 DC fan and timer for hydrogen discharge

2.7 Installation mode: installed on a concrete floor.

2.8 Protection level:IP55.

2.9 Cabinet material: galvanized steel, double wall with thermal insualtion.

2.10 Thermal Insulation: 20mm PEF

2.11 Door: 1 front door, three point lock, anti-vandal lock

2.12  Cabling mode: routed in and out from the cabinet bottom.

2.13  Copper grounding bar for cabinet grounding

2.14 Including -48VDC illumination lamp.

2.15 Options: door sensor, smoke sensor, water sensor, temperature and humidity sensor







3. Cabinet Instructions



For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.



This battery cabinet is 2100mm High and 900mm Wide and 800mm Deep. It comes with 3 battery layers battery layers. This cabinet is the ultimate choice for outdoor racking requirements.

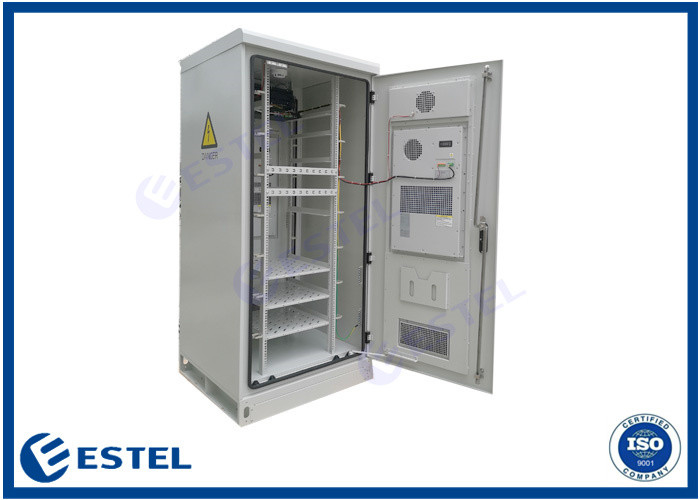

4. Internal Components



  • There are three layers for battery installation inside the cabinet
  • There is one air conditioner installed on the front door to cool the systemt
  • There are cable holes at the bottom of the cabinet
  • There is one ground bar at the bottom of the cabinet



5. Cabinet Door Lock



Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



Three Battery Layers DC48V Fans FCC Outdoor Electronics Cabinet 0

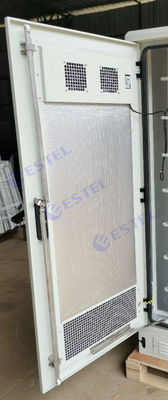

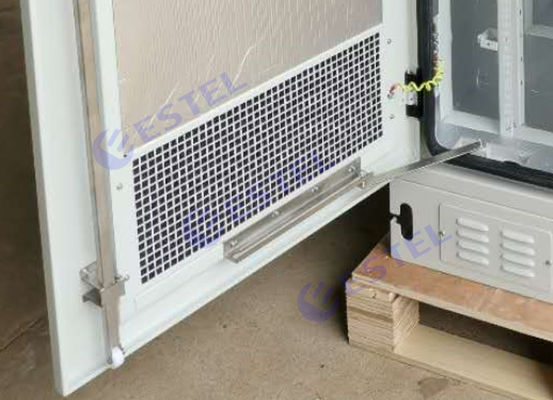

Three point lock



Three Battery Layers DC48V Fans FCC Outdoor Electronics Cabinet 1



6. Factory Introduction



Factory Size: 3000 Square Meters

No. of Main Production Lines: 5

Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered

Production Experience: 13 Year



Three Battery Layers DC48V Fans FCC Outdoor Electronics Cabinet 2
