Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: HE06-100SEH/01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton + foam + wooden case
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 16,000 sets per month
Get Best Price Contact Now

Detail Information

Rated Input Power: 100W Rated Input Current: 2.1A
Installation Mode: Door Mounted Protection Level: IP55
Dimension: W×D×H: 430×176×700 Mm Cover Material: Galvanized Steel
Weight: 18kg Heating Capacity: 300/500W (optional)
High Light:

ISO9001 Enclosure Heat Exchanger

,

100W/K Enclosure Heat Exchanger

,

100W/K electric heat exchanger

Product Description



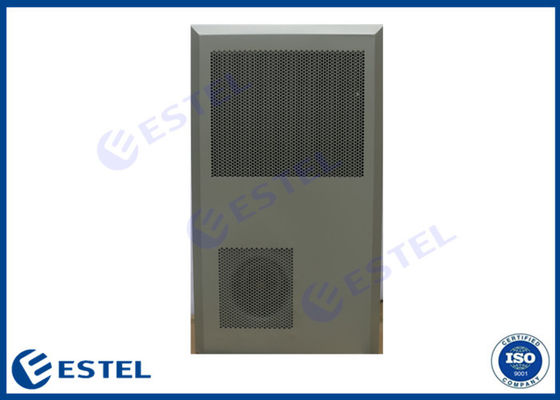

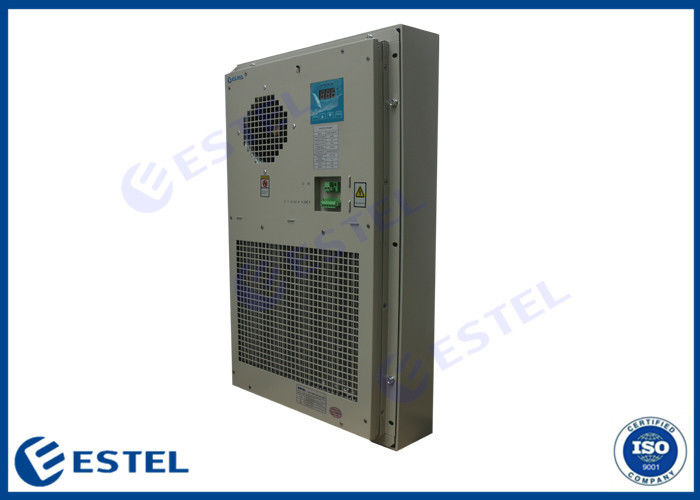

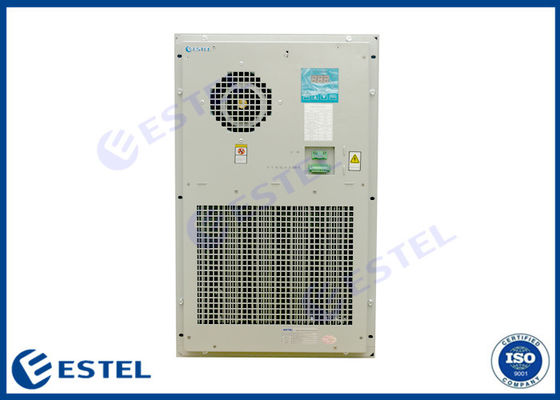

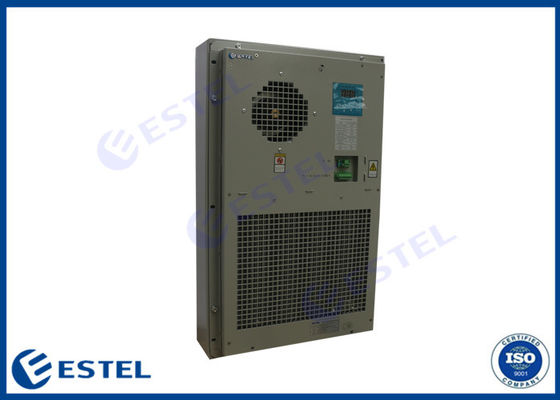

Door Mounted Embedded Cabinet Industrial Air To Air Heat Exchanger High Pressure Compact DC Series 100W/K HEX





1. Specifications

Technical Parameters





Model No. HE06-100SEH/01
Environmental Performance working environmental temperature -20°C ~ 55°C
storage working temperature -40°C ~ 70°C
working humidity ≤95%
Thermal Performance rated heat exchange capacity 100W/K
rated heating capacity 300/500W (optional)
Electrical Performance rated input current 2.1A
rated input power 100W
rated input voltage DC48V
Noise 62dB
IP Grade IP55
Weight 18kg





Dimension Diagram: 430×176×700 mm (W×D×H)



Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger 0

Size

Specs

Model A B C D E F G H I J K
100W/K HE06-100SEH/01  300 401 450 600 672 700 133 176 649 379 430



2. Application



The product is widely applied in outdoor telecom cabinet, outdoor base station cabinet, telecom transmission cabinet, outdoor battery cabinet, 4G network cabinet, etc



3. Description



The HE06-100SEH/01 Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.



4. Features



  • High intelligence
  • High precision
  • The heat exchange capacity can be set according to need
  • Reliable: 48V DC power supply, works well even when AC power fails
  • Anti Corrosion protection: Powder coated sheet metal endures harsh environment
  • Easy maintenance
  • Low noise
  • Low energy consumption
  • Wide input voltage range: DC36 - 65V
  • With dry contact alarm output
  • Dust proof and water proof



5. System Principle Diagram



Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger 1



6. Electrical Wiring Diagram



Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger 2

Wiring Ports:

0V -48V: power supply input (voltage input: DC36 - 65V)

A+ B- SGND: RS485 communication interface

AL1 AL2: general alarm output

F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)



7 Cabinet Picture

Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger 3







8. Packing



Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger 4
