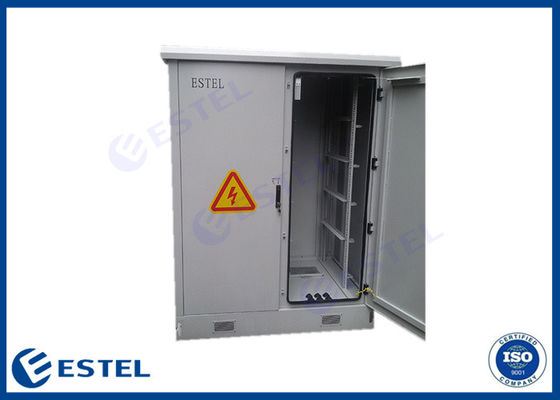

• IP45 Windproof Outdoor Telecom Enclosure with Two Compartments

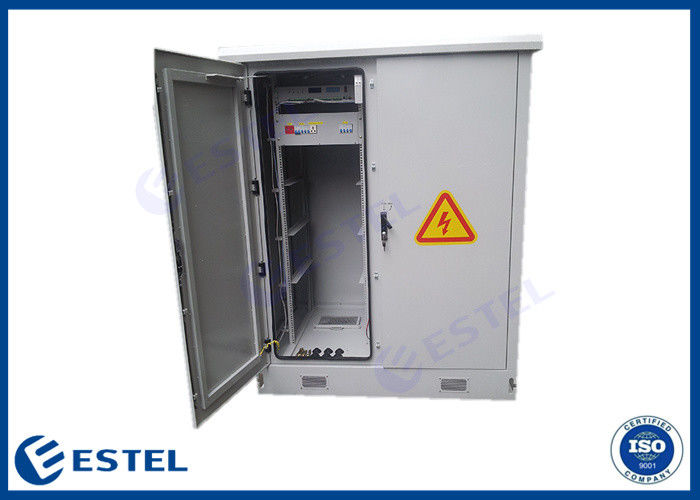

  • IP45 Windproof Outdoor Telecom Enclosure with Two Compartments

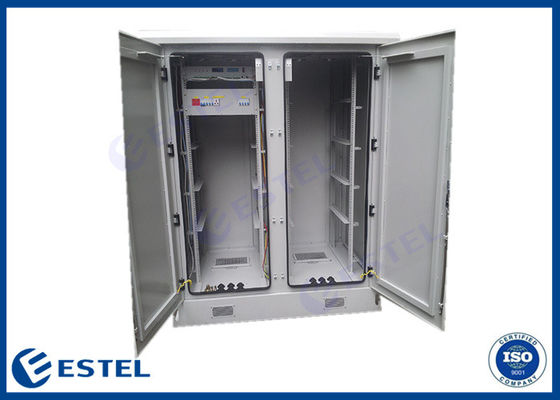

  • IP45 Windproof Outdoor Telecom Enclosure with Two Compartments

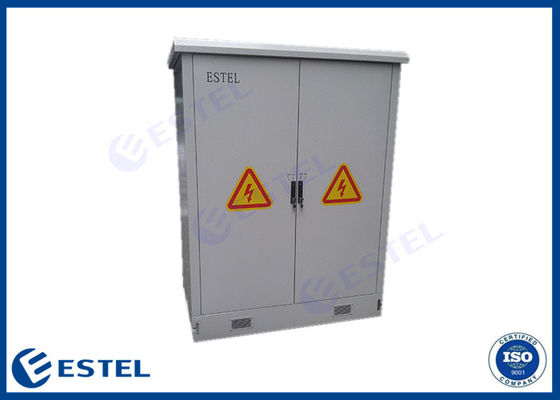

  • IP45 Windproof Outdoor Telecom Enclosure with Two Compartments
IP45 Windproof Outdoor Telecom Enclosure with Two Compartments

IP45 Windproof Outdoor Telecom Enclosure with Two Compartments

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET150100200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

DIMENSION: 1000*1500*2000mm (D*W*H) Temperature Control: Air Conditioner And Fan
PDU: 63A/2P*1, 63A/1P*2, 32A/1P*2, 16A/1P*4 Packing: Wooden Packing
Relative Humidity: 5%-- 100% IP Rate: IP45
High Light:

Windproof Outdoor Telecom Enclosure


IP45 Outdoor Telecom Enclosure


IP45 outdoor telecom cabinet

Product Description

IP45 Windproof Outdoor Telecom Enclosure with Two Compartments

Two Compartments Wind-proof, Sand-proof, Rain-proof, Sun-proof and Anti-theft outdoor Enclosure


1. Description Of Outdoor Telecom Enclosure
Our telecommunication enclosure is able to keep communicating far from exploding under sun, heat radiation, rain, provide water, humidity, dust and chemical resistance. This series ensures equipments work appropriately and offers the largest capacity for our customers. This outdoor telecom enclosure is with air conditioner cooling, made of steel. Has the advantages of high integration, small floor area, flexible expansion, simple installation, energy saving, etc.


2. Feature Of Outdoor Telecom Enclosure

  • Short construction period, less land occupation, broader application and lower construction cost
  • High integration, compact structure, easy installation and migration on later stage
  • High-performance cooling solution, options: air conditioner, heat exchanger and fan
  • Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
  • Perfect air duct design to avoid cold and hot air mixed flow effectively
  • Professional outdoor anti-corrosion powder coating, strong weather resistance
  • Universal rack design applied for types of battery
  • Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP45
  • Door stopper to hold door open at service
  • Hidden hinge, inside screws, enhance the theft-proof
  • Support custom made


3. Enclosure And Accessories List

No. Item Quantity Unit Remark
1 Outdoor Telecom Cabinet 1000*1500*2000mm (D*W*H) 1 set
2 Fans DC48V 4 set
3 Temperature Switch 2 pcs
4 Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.) 1 set 2U environment monitoring unit is optional
5 PDU (grade B lightening arrestor, 63A/2P*1, 63A/1P*2, 32A/1P*2, 16A/1P*4, repair socket *1) 1 Set
6 Packing: carton+ pallet 1 Set


4. Technical Parameters

Item Technical Parameter
Temperature Working temperature range: -40℃~ +60℃
Sorage temperature range: -50℃~ +70℃
Transport temperature range: -50℃~ +70℃
Relative Humidity 5%-- 100%
Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)
Radiation Intensity 1400* (1±5%) W/m2
Protection Grade IP45


5. Enclosure Cooling

2 DC48V fans for each compartment, totally 4 fans.


6. Application Of Outdoor Telecom Enclosure

The intelligent temperature measuring machine can be installed in the main entrances of crowded places such as enterprises,schools, hotels, shopping malls, office buildings, banks, government halls, etc., to monitor the temperature of employees, customers, and visitors in real time, effectively helping to prevent epidemics.


7. Cabinet Structure

Material: cold rolled steel, outdoor power coat

The cabinet is splicing type cabinet, with two front doors, one left compartment and one right compartment.

For each compartment, there are 19” rack and 35U space for installing equipments.


8. Drawing and Pictures

IP45 Windproof Outdoor Telecom Enclosure with Two Compartments 0

IP45 Windproof Outdoor Telecom Enclosure with Two Compartments 1


9. Ventilation and Filter

  • At the air inlet of the vent, it is welded with 1mm thick and 16 mesh stainless steel mesh, preventing insects and rodent. At the inner side of the vent, it is 10mm thick and 30ppi dust filter. The filter mesh is folded together with the fold type support mesh, and the filter is fixed inside the aluminum frame. The whole dust filter is with modular design, easy for maintenance.
  • It is anti-corrosion and water proof, and with the function of preventing rain from flowing into the structure for the second time. There are shutter which has 35° angle with the cabinet vertical surface. Rain water will flow along the shutter. In addition, the structure design at the vent can prevent rain for the second time.

IP45 Windproof Outdoor Telecom Enclosure with Two Compartments 2


10. Grounding

The cabinet include grounding copper bar, 4mm thick, with 10×M6 flare-in nuts, 2×M8 flare-in nuts, 2×M10 flare-in nuts. The grounding bar is nickel plated. The screw is made from copper bar and with passivation surface treatment.


11. Door Alarm

>>>Technical Parameters:

Contact power: ≤10W

Voltage: ≤28VDC

Current: ≤0.5A

Contact impedance: ≤300mΩ

Action distance: 35mm

Fixing mode: embedded

Safety standard(UL):94-HB


When forcible entry (forcible opening the cabinet door) happens, the door sensor will send the door alarm signal, and transmit the alarm signal to the monitoring center in switching mode.


IP45 Windproof Outdoor Telecom Enclosure with Two Compartments 3



Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
