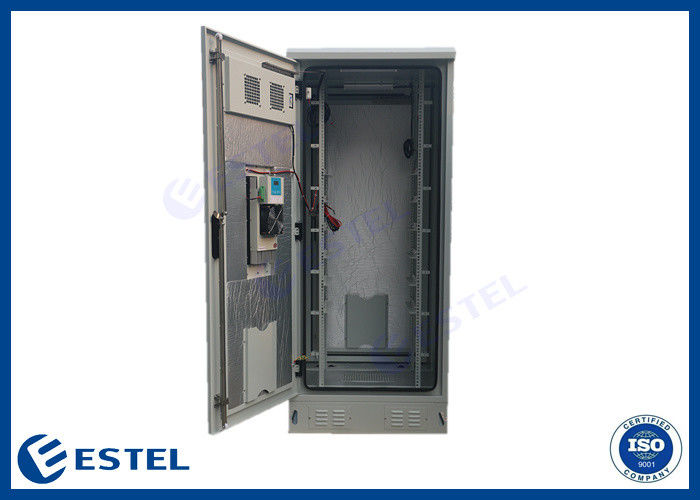

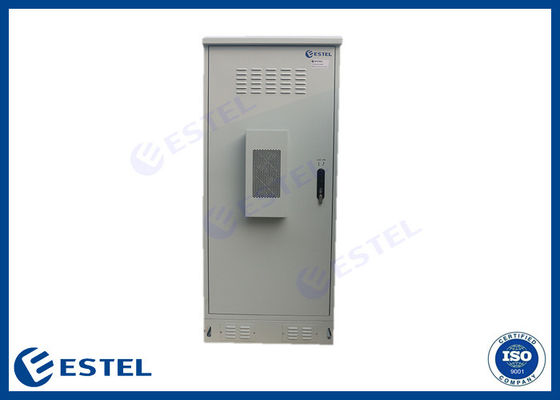

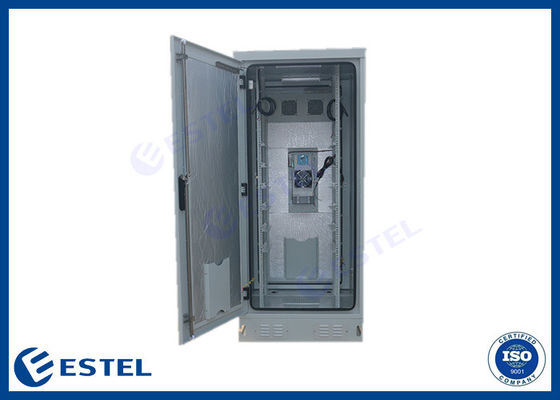

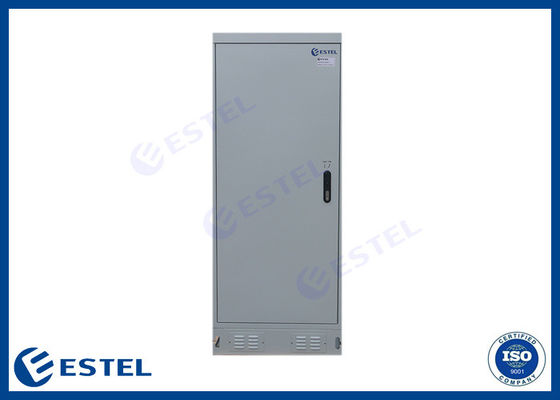

Galvanized Steel Outdoor Telecom Enclosure 19 Inch Double Door Communication Rack

Galvanized Steel Outdoor Telecom Enclosure 19 Inch Double Door Communication Rack

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, RoHs
Model Number: ET7575175-EQ-PT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 pcs/month
Get Best Price Contact Now

Detail Information

Material: Galvanized Steel, Single Wall With Heat Insulation Protection Level: IP55
External Size: 1750 (height) *750 (width) *750 (depth) Lock: Outdoor Special Anti-theft Three Point Lock
19 Inch Space: 32U Coating: Surface Spraying Special Outdoor Cabinet Powder
Maintenance Mode: Front Door And Back Door Access Cooling: Peltier Air Conditioner
Insulation Material: 20mm Steel Thickness: 1.2mm Or Upon On Customer
Highlight:

Galvanized Steel Outdoor Telecom Enclosure

,

19 Inch Outdoor Telecom Enclosure

,

Double Door Communication Rack

Product Description

Galvanized Steel Outdoor Telecom Enclosure 19 Inch Double Door Communication Rack



1750*750*750 Galvanized Steel IP55 Waterproof Outdoor Telecom Enclosure 19 Inch Double Door Communication Rack



1. Application scenarios and industries of outdoor telecom enclosure


- Wireless network base station;
- Power cabinet
- Transmission cabinet
- Data communication cabinet
- IT&Network system
- Power supply
- Telecommunication
- Solar Energy
- Energy saving
- Radio
- 3G/4G/5G network


2. Outdoor Enclosure Parameter



No. Description Specification
Specification of enclosure
1 Model ET7575175-EQ-PT
2 Dimension 1750 (height) *750 (width) *750 (depth)
3 Available User Space 32U standard 19” rack
4 Door One front door and one back door
5 Lock Outdoor special anti-theft three point locking
6 Material Galvanized steel, single wall with heat insulation
7 Thickness 1.2mm or upon on customer
8 Insulation Material 20mm PEF
9 Processing Laser cutting, CNC punching, CNC bending, welding, stamping, etc
10 Surface treatment Surface spraying special outdoor cabinet powder
11 Cabinet Installation method Floor mount
12 Cable Entry Located on the bottom
13 Lifting 4 ears on the cabinet base
14 Earthing Grounding copper bar
15 Working Temperature -40°C~+75°C
16 Protection Level IP55
17 Relative Humidity 5% ~ 100%
18 Atmospheric Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
19 Withstand Voltage >3000VDC/min and no breakdown fly arc
20 Solar Radiation Intensity 1120 ×(1±5%)W/m2
Other accessories
1 Cooling

Peltier Cooler

Cooling capacity: 200W,

Power supply: DC48V

2 LED light AC220V 50Hz, with LED lamp switch
Packing
Plywood box W×D×H 900×1050×2000mm


3. Feature


(1) The embedded structure door enhances the anti-theft effect.

(2) High quality hot dip galvanized steel.

(3) Standard 19 inch rack, 4 posts.

(4) High protection level IP55, waterproof and dustproof, effectively protect the equipment in the cabinet.

(5) Three-point theftproof lock.

(6) Hidden hinge, inside screws, enhance the theftproof.

(7) Door limit to hold door open at service.

(8) High reliability, maintenance-free, fast assembly, suitable for harsh environment

(9) High integration, small footprint, short construction period, reduce the construction cost

(10) Improved thermal design, efficient energy saving, effectively extending the battery life

(11) Support for fast assembly, ready for the summit, multi-scene roof installation



4. Our strengths



① 100% manufacturer
② Our steel comes from famous Company, with higher quality assurance
③ Various sizes and parts can be provided according to different application requirements
④ Professional container loading team, make full use of space and save your transportation cost



5. Cabinet display



Galvanized Steel Outdoor Telecom Enclosure 19 Inch Double Door Communication Rack 0



6. FAQ



Q: Are you a trading company or manufacturer?

ESTEL: We are a factory.



Q: Do you offer OEM & ODM services?

ESTEL: Yes, of course.



Q: Can support custom made?

ESTEL: Yes, we have professional technical team to design based customer’s actual demand.



Q: What' s your QC system?

ESTEL: We can provide all kinds of testing certificates, material anddimensional inspection, etc.



Q: Will our design be protected from another usage?

ESTEL: Yes, we can sign NDA with you.



Q. Can I get discounts?
A: Yes, for big order, old customer and frequent customers, we give reasonable discounts.



Q: What' s your after-sale service?

ESTEL: If there is a quality problem, please provide photos or test reports, we will replace defective goods or return funds.





7. Packing



Our cabinets are packed in wooden box which is a kind of free fumigated plywood.The advantage is rain proof, moisture-proof, mildew proof, rust proof, erosion proof, dust-proof, shock proof, local protection, etc. It can protect the goods reliably. Firm and reliable, compact packaging, reduce the loss of goods in the logistics process, ensure the safety of goods; goods can be effectively protected, which is particularly important for fragile and valuable goods.



Galvanized Steel Outdoor Telecom Enclosure 19 Inch Double Door Communication Rack 1



8. Production equipent



Galvanized Steel Outdoor Telecom Enclosure 19 Inch Double Door Communication Rack 2
