Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: EX150114-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

Design: Compact Design Anti-corrosion: Yes
Doors: Two Doors Dimension H*W*D: 1300*900*900mm
Padlock: Support Thickness Of The Plate: 1.4mm
High Light:

Two Doors Outdoor Battery Enclosure

,

Windproof Outdoor Battery Enclosure

,

Windproof outdoor battery enclosure

Product Description

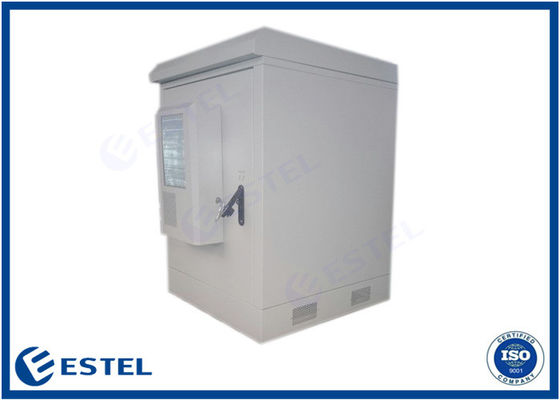

Windproof Two Doors Outdoor Battery Enclosure Heat Insulation Galvanized Steel

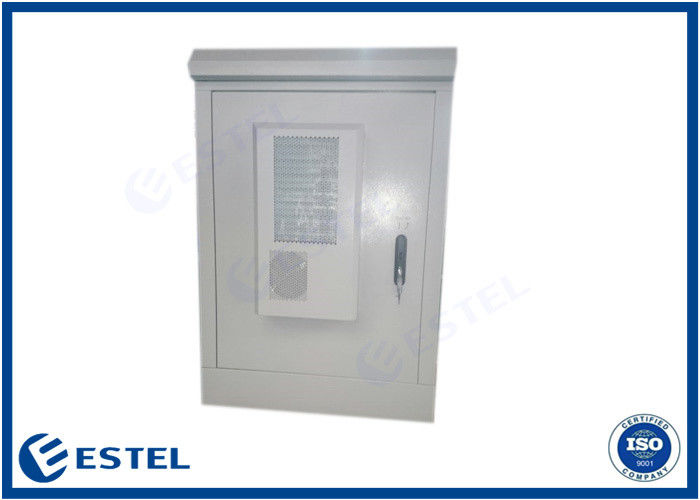

Windproof Two Doors Outdoor Battery Enclosure Heat Insulation Galvanized Steel



1, Description Of Outdoor battery Enclosure
The truth is that on many occasions, an Outdoor battery Enclosure is vital in any industrial set up or any other related application for that matter.What happens is that you always need a high standard of efficiency whenever you’re undertaking a particular operation.Ordinarily, you need a Outdoor battery Enclosure to guarantee safety both for the users and the battery.Having this equipment is a sure way of becoming safe especially from the aspect of accidents.



2, Main Advantages:

Simple, useful, functional construction

The highest protection against corrosion

Galvanized steel Polyester Powder coat

IP55 dust and water protection

Vandal-proof

Compact design

Ready for crane transport



3, Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension H*W*D 1300*900*900mm

Internal Dimension H*W*D 1000*800*800mm

Layout One compartment
Equipment Installation Method 19” standard rack
Door With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
Material Galvanized steel; thickness of the plate: 1.4mm with heat insulation
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling 800W Air Conditioner and fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2





4, Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension H*W*D 1300*900*900mm

Internal Dimension H*W*D 1000*800*800mm

(2) One compartment;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, thickness of the plate: 1.4mm, with heat insulation

2 Air Conditioner 1 Set 800W Air Conditioner, AC220V power supply
3 110V To 220V Transformer 1 Set Used for air conditioner input
4 Fans 4 PC 12038, DC48V
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

Height: 4U

6 Embedded Telecom Power System (UPS) 1 Set

DC48V, 60A, 3210W; Model:

1U-4860, Height: 1U.

7 Package 1 Set Wooden Case



5, Enclosure Cooling

One set Air conditioner 800W and 4 pcs DC48V fans.



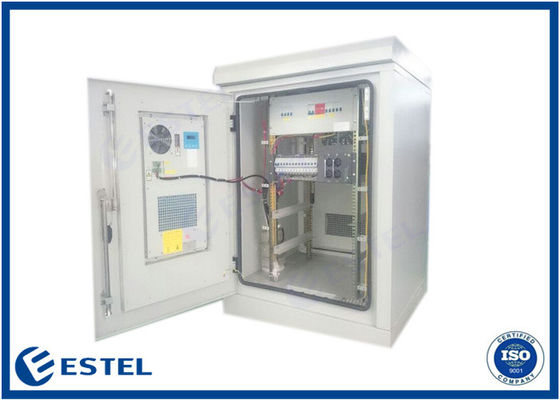

6, Cabinet Structure

(1) External Dimension H*W*D 1300*900*900mm

Internal Dimension H*W*D 1000*800*800mm

(2) One compartment;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; thickness of outer plate: 1.4mm, with heat insulation.



7, Cabinet Diagram:

Windproof Two Doors Outdoor Battery Enclosure Heat Insulation Galvanized Steel 0





8, Air conditioner

Windproof Two Doors Outdoor Battery Enclosure Heat Insulation Galvanized Steel 1

Installation and Electrical Wiring Instruction

8.1 Preparation Before Installation

(1) Prepare the tools in the following table “Installation And Maintenance Tools”.



(2) Check the air vents to ensure there’s no unnecessary items on the vents.

8.2 Installation And Maintenance Tools





Tools Name Function
Cross Screwdriver Fix air conditioner.
Small Slotted Screwdriver Wire power supply port on the panel
Wire Stripper Wire stripping
Wire Crimper Crimp power supply for equipment
Multimeter Check the wiring to ensure it’s correctly connected and without short circuit.
Clamp Meter Test operating current of the air conditioner




8.3 Installation Steps

  • Make sure the air conditioner is not connected with power.
  • Fix the air conditioner according to the Dimension Diagram.
  • Strip the insulation of the power supply wire, and crimp the terminal.
  • Connect the wires according to the Electrical Wring Diagram.
  • After finishing the wiring, use the multimeter to check if the electric circuit is normal. Then connect the air conditioner with power supply, and use clamp meter to test the operating current.
