UPS PDU 600W Outdoor Telecom Enclosure Anti Theft Lock With 1.5mm Thickness Plate
Product Details:
Place of Origin: | Shenzhen, China (Mainland) |
Brand Name: | ESTEL |
Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
Model Number: | ET9090135-5 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
Supply Ability: | 5,000 sets per month |
Detail Information |
|||
Internal Dimension H*W*D: | 1050*800*800mm | External Dimension H*W*D: | 1350*900*900mm |
---|---|---|---|
Cooling: | 600W Air Conditioner | Storage Temperature:: | -50°C ~ + 70°C |
Air Pressure: | 62kpa ~ 101kpa (similar To 0m ~ 5000m Altitude) | Fans: | DC48V |
Highlight: | 600W Outdoor Telecom Enclosure,PDU Outdoor Telecom Enclosure,outdoor ups enclosure |
Product Description
UPS PDU 600W Outdoor Telecom Enclosure Anti Theft Lock With 1.5mm Thickness Plate
1. Description Of Outdoor cabinet
this equipment safeguards all the electrical components that it houses from wear and tear, harsh surrounding and theft.You see, acquiring some of these components is often expensive.And that’s the reason protecting them from such elements becomes helpful.You also need this equipment for storing all the relevant electrical parts that you use in the industry.It follows that in many instances, you’ll need quite a number of elements which use electricity.So having all the connections, switches and controls could be somewhat challenging. And that’s why you’d need an Outdoor cabinet to enable you to store all these parts appropriately for easy and effective access.
2. Selling points and Feature Of Outdoor cabinet
● Front door to access the inside equipment
● Anti corrosion outdoor powder coating
● Standard 19“ rack for installation
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft lock, excellent keyhole protection device
● Embedded door, enhance anti-theft
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension |
External Dimension H*W*D 1350*900*900mm Internal Dimension H*W*D 1050*800*800mm |
Layout | One compartment | |
Equipment Installation Method | 19” standard rack | |
Door | With one front door | |
Material | Galvanized steel; thickness of the plate: 1.5mm, with heat insulation | |
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 600W Air Conditioner and fans |
Lighting | LED lamp | 48V LED lamp |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension H*W*D 1350*900*900mm Internal Dimension H*W*D 1050*800*800mm (2) One compartment; (3) With one front door with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; thickness of the plate: 1.5mm, with heat insulation |
2 | Air Conditioner | 1 | Set | 600W Air Conditioner, AC220V power supply |
3 | 110V To 220V Transformer | 1 | Set | Used for air conditioner input |
4 | Fans | 4 | PC | 12038, DC48V |
5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. Height: 4U |
6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 60A, 3210W; Model: 1U-4860, Height: 1U. |
7 | Package | 1 | Set | Wooden Case |
5. Enclosure Cooling
One set Air conditioner 600W and 4 pcs DC48V fans.

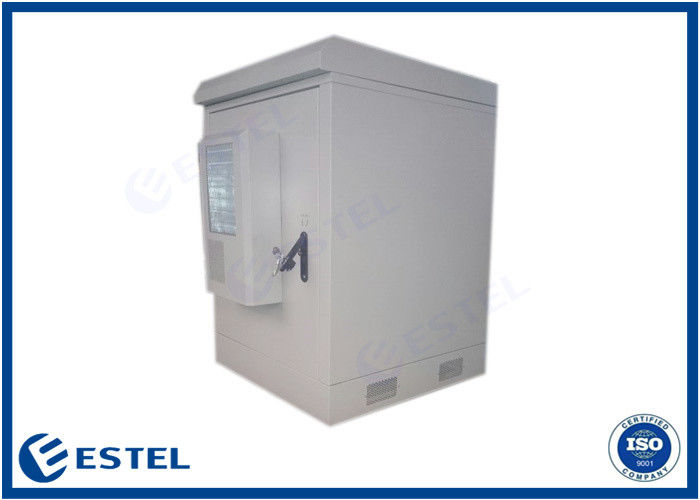

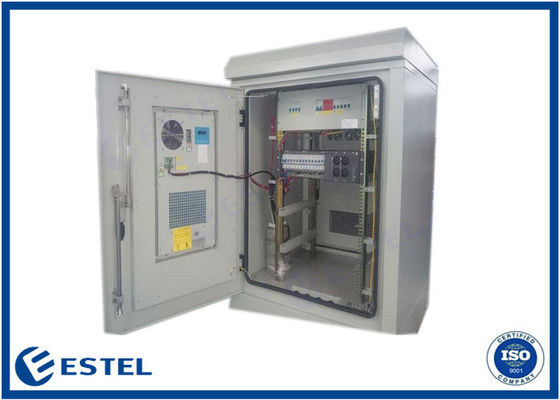

6. Cabinet Structure
(1) External Dimension H*W*D 1350*900*900mm
Internal Dimension H*W*D 1050*800*800mm
(2) One compartment;
(3) With one front door,with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; thickness of the plate: 1.5mm, with heat insulation

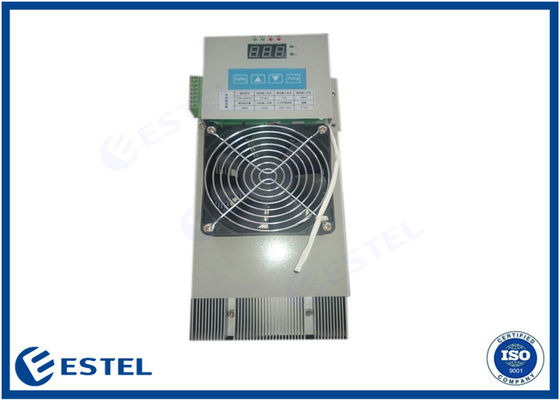

7. Air Conditioner
Maintenance Tools:
- Vacuum cleaner or compressed air cleaning agent
- Soft brush
- Cross screwdriver
- Multimeter
- Clamp meter
- Digital thermometer
In order to keep normal temperature environment inside the cabinet, please conduct maintenance according to the “Maintenance Table”.
Maintenance Steps:
- Turn off the power.
- Disconnect the power line, and disconnect the signal line.
- Conduct maintenance according to the “Maintenance Table”.
- Connect the power line and signal line.
- Operating testing program.
- Disconnect the power, restore the normal operating status.
- Connect the power.
- The equipment installation should reserve a maintenance space not less than 300mm.
