Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box

Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET434679-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

Material: Hot Dip Galvanized Steel Anti-erosion: Yes
Cooling System: Fans And TEC Cabinet External Size: 460mm×460mm×790mm (W×D×H)
Cabinet Internal Size: 6U× 400×19” (W×D×H) Structure: Double Walls Structure
Highlight:

IP55 Outdoor Telecom Enclosure

,

IP55 Weatherproof Electronics Box

,

one TEC Outdoor Telecom Enclosure

Product Description

Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box



1. Description Of Outdoor Telecom Cabinet


The cabinet can be used as a traffic signal control cabinet . they provide protection from vandalism, dust, rain, snow and dripping water. The material can be made from galvanized steel, aluminum or stainless steel according to different demand . We manufactures traffic control enclosures from small pole-mounted enclosures to large walk-in/freestanding enclosures.



2. Selling points and Feature Of Outdoor Equipment Cabinet



● High intensity and anti-erosion performance

● Able to counter abrupt climate change and extreme environment

● Capacity can be flexibly customized as required

● Installation is quick and convenient

● Material: galvanized steel or as customer's requirements

● Cooling System: Fans and TEC

● Protection Level: IP55 ,Waterproof,dust proof.



3. Technical Parameters



Item Type Technical Parameter
Structure Dimension

Cabinet External Size : 460mm×460mm×790mm (W×D×H),

Cabinet Internal Size : 6U× 400×19” (W×D×H)



Layout One compartment
Equipment Installation Method 19″ Data Rack Rails
Door

- embedded structure.

- 3 point locking system with key-lock swing handle.

Material

- hot dip galvanized steel,cabinet

- 10mm heat insulation between the two walls

Structure double walls structure
Ingress Protection IP55
Temperature Control Cooling 4 fans and one TEC
Temperature Temperature Working Temperature: -40°C ~ + 60°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity ≤95% (at + 40°C)
Pressure Air Pressure 70kPa ~ 106kPa
Cabinet load bearing

≥600kg







4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

Cabinet External Size : 460mm×460mm×790mm (W×D×H),

Cabinet Internal Size :

6U× 400×19” (W×D×H)



2 Fan 4 Set 4 set Fans

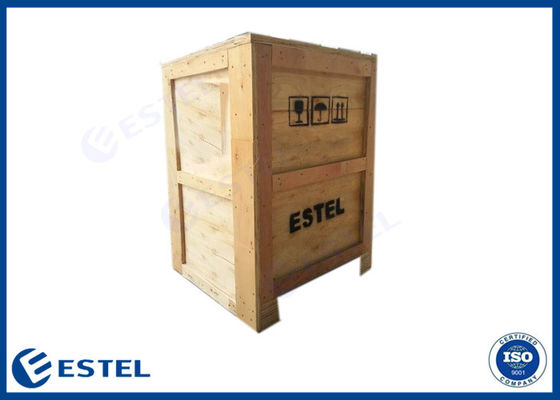

3 Package 1 Set Wooden Case
4 TEC 1 Set 100W TEC
5 Door detector 1 Set 1 set
6 LED LAMP 1 Set DC48V LED LAMP



5. Enclosure Cooling



4 Pcs DC48V Fans and 1 set TEC



6. Cabinet Structure



(1) Cabinet External Size : 460mm×460mm×790mm (W×D×H),

Cabinet Internal Size : 6U× 400×19” (W×D×H)

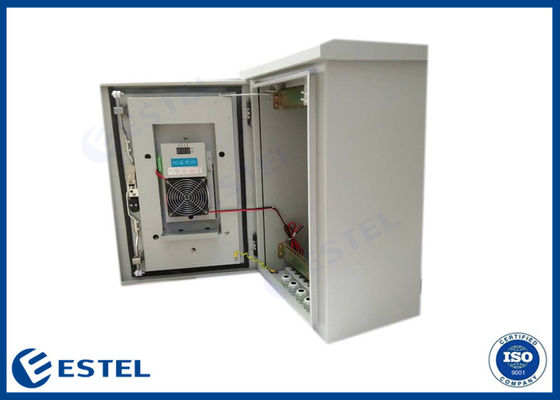

(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

(3) The cabinet is a double-wall cabinet, with 10mm heat insulation between the two walls

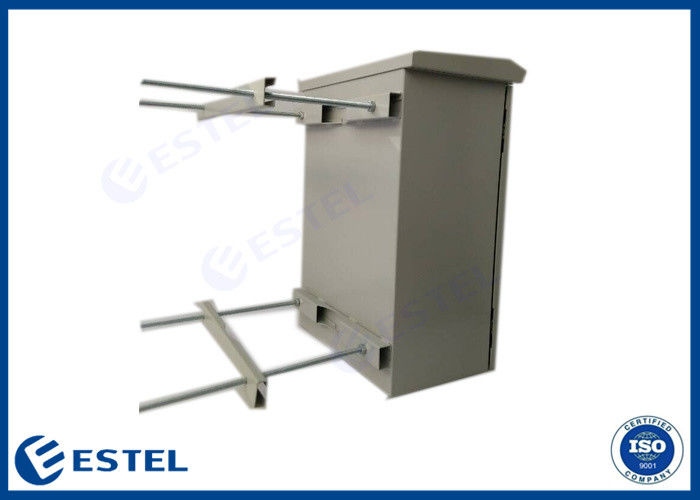

7. Installation Picture



Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box 0



8. Main equipments



Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box 1



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
