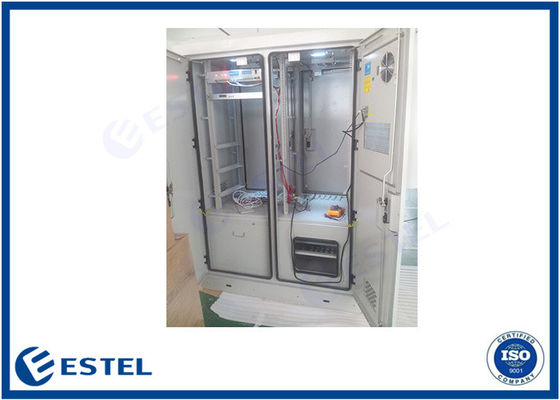

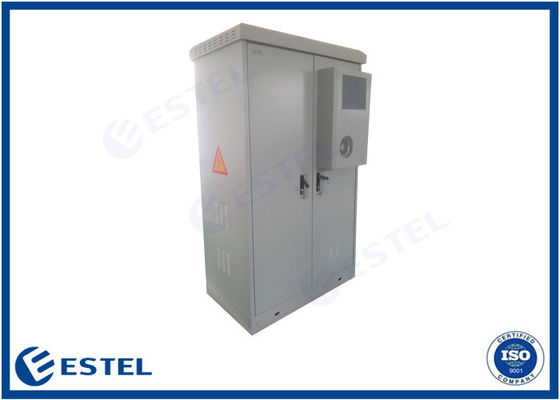

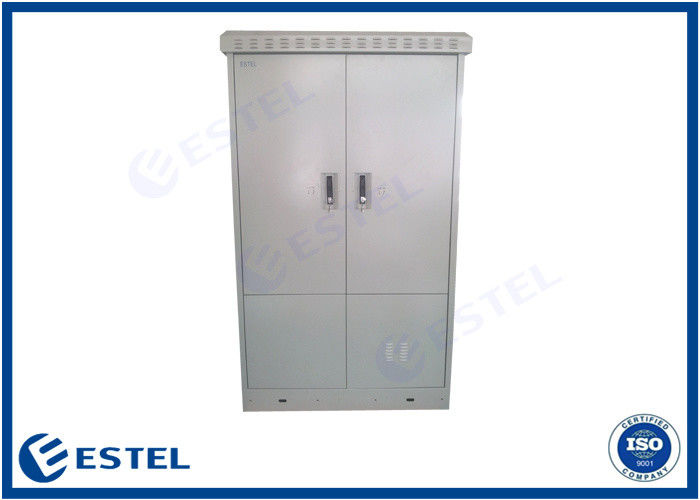

1200W 220V Telecommunication Enclosure Outdoor 19 Inch Rack Cabinet

1200W 220V Telecommunication Enclosure Outdoor 19 Inch Rack Cabinet

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET454346-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

MATERIAL: STEEL STRUCTURE: DOUBLE WALL
INSULATION: WITH HIGH-DENSITY FOAMING BOARDS BETWEEN THE TWO WALLS AIR CONDITIONER: 1200W, 220V
SMOKE SENSOR: Yes OPEN DOOR ALRAM: Yes
Highlight:

220V Telecommunication Enclosure

,

1200W Telecommunication Enclosure

,

outdoor 19 inch rack cabinet

Product Description

1200W 220V Telecommunication Enclosure Outdoor 19 Inch Rack Cabinet



1. Outdoor Equipment Enclosure

Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, 4G system, access/transmission switching station, emergency communication/transmission, etc. The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner and fans on cabinet door.



2. Selling points and Feature Of Outdoor Equipment Enclosure

  • High reliability
  • maintenance-free
  • fast assembly
  • suitable for harsh environment
  • High integration
  • small footprint
  • short construction period
  • reduce the construction cost

3. Specification Of Equipment Enclosure

Cabinet And Accessories List

No.

Item



Quantity



Unit



Remark





TELECOM CABINET



1



SET



(1)MATERIAL:STEEL

(2) STRUCTURE: DOUBLE WALL

(3) INSULATION: WITH HIGH-DENSITY

FOAMING BOARDS BETWEEN THE TWO

WALLS

(4) SIZE: ACCORDING TO YOUR

DRAWING

  AIR CONDITIONER 1 SET 1200W, 220V
  WATER SENSOR 1 PC FLOOD SENSOR


TEMPERATURE AND

HUMIDITY SENSOR

1 PC
  SMOKE SENSOR 1 PC FIRE SENSOR
  OPEN DOOR ALRAM 4 PC
  PROXIMITY SWITCH 4 PC SENSOR TO TURN THE LAMP ON
  48VDC LAMP 4 PC


ENVIRONMENT

MONITORING UNIT

1 SET
  POWER MONITORING UNIT 1

SET




  PACKING 1 SET WOODEN CASE



4. Technical Parameters

Item Technical Parameter

Working temperature range: -40℃~ +60℃

Sorage temperature range: -50℃~ +70℃

Transport temperature range: -50℃~ +70℃

Relative Humidity 5%-- 100%

Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)

Radiation Intensity 1400* (1±5%) W/m2



5. Application Of Equipment Enclosure

Wireless communication base station such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



6. Equipment Enclosure Structure

(1) MATERIAL:STEEL

(2) STRUCTURE: DOUBLE WALL

(3) INSULATION: WITH HIGH-DENSITY FOAMING BOARDS BETWEEN THE TWO WALLS

(4) SIZE: ACCORDING TO YOUR DRAWING



7. Door and Door Lock

(1) Cabinet door options: vertical hinge door, horizontal hinge door.

(2) The door limit device can limit the door position when it is open.

(3) The door limit function is automatically activated when the door is open, and should be

canceled manually when the door is closed.



8. Dimension

According to your requirements.



9. Cable Inlet

All feeder cable and other external cables all use bottom wiring method.

There are eight cable inlets at the bottom of the cabinet.

1200W 220V Telecommunication Enclosure Outdoor 19 Inch Rack Cabinet 0

10. Door lock theft proof design

Damage resistance of the theft proof lock meets GA/T 73-1994 "Mechanical Anti-theft Lock"class B requirement,supporting padlock.

Three theft lock

1200W 220V Telecommunication Enclosure Outdoor 19 Inch Rack Cabinet 1



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
