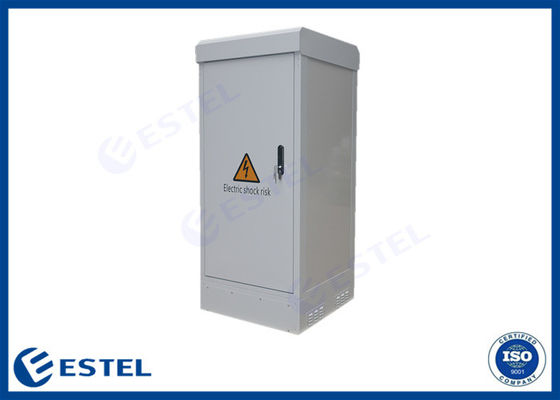

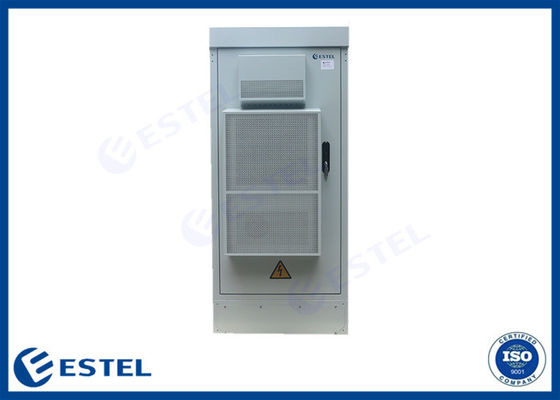

24U Galvanized Steel Outdoor Telecom Enclosure Double Doors Double Walls

24U Galvanized Steel Outdoor Telecom Enclosure Double Doors Double Walls

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7575175-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

External Dimension: 750×750×1750mm SIZE: 24U
Door: Double Doors Wall: Double Walls
Layout: One Compartment Heat Insulation: With Heat Insulation Between Two Walls
High Light:

Galvanized Steel Outdoor Telecom Enclosure

,

24U Outdoor Telecom Enclosure

,

24U outdoor weatherproof box

Product Description

24U Galvanized Steel Outdoor Telecom Enclosure Double Doors Double Walls



1. Description Of Outdoor Telecom Enclosure

This outdoor telecom enclosure is with air conditioner cooling, made of steel. Using air conditioner to ensure the equipment operate normally at stable temperature range, so as to make the service life of the equipment much longer and their performance more stable. Has the advantages of high integration, small floor area, flexible expansion, simple installation, energy saving, etc.



2. Selling points and Feature Of Outdoor Equipment Enclosure

>>> The cabinet is sunproof and waterproof, which is used in outdoor environment.

>>> The cabinet use fans for cooling.

>>> The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for      power cable, signal cable and optical cable.

>>> All the cables used in the cabinet are made from flame retardant materials

>>> Cabinet design with IP55 (according to IEC 60529) protection class

>>> All the cables used in the cabinet are made from flame-retardant materials.

>>> Access control, smoke, water immersion, temperature, humidity, and other comprehensive protection.

>>> Professional outdoor powder spraying, and strong weather resistance.

Support custom made



3. Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension H*W*D W×D×H 750×750×1750mm
Layout One compartment
Equipment Installation Method 19” standard rack, 24U
Door With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
Material Galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling 1500W Air Conditioner and 2 fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2





4. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension H*W*D 1225*900*900mm ;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

2 Air Conditioner 1 Set 1500W Air Conditioner, AC220V power supply
3 110V To 220V Transformer 1 Set Used for air conditioner input
4 Fans 2 PC  DC48V
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

2 x 63A/1P

2x32A/1P

2x16A/1P

2x10A/1P

2x5A/1P

Height: 3U

6 Embedded Telecom Power System (UPS) 1 Set

DC48V, 90A, 4800W; Model:

GPE4890J

7 Package 1 Set Wooden Case
8 Sensor     Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.)



5. Enclosure Cooling

1 Set 1500W Air Conditioner, AC220V power supply

2 pcs DC48V fans.



6. Cabinet Structure

(1) External Dimension H*W*D 1225*900*900mm ;

(2) One compartment;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

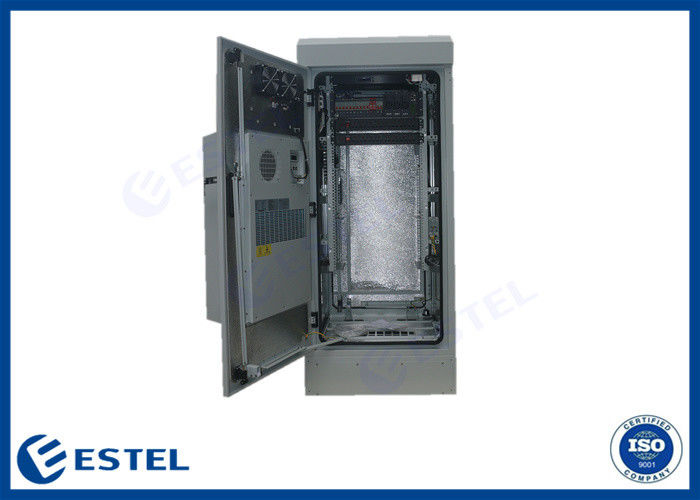

7. Cabinet Picture:

24U Galvanized Steel Outdoor Telecom Enclosure Double Doors Double Walls 0

8. Cabinet Door and Lock

The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

9. Connection and fastening

(1) Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.

(2) Door hings use inner hinge mode.
