DC48V Fans Weatherproof Electrical Enclosures 0.8mm Thick Inner Plate
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | ET6565100-A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 5,000 sets per month |
|
Detail Information |
|||
| Working Temperature: | 40°C ~ +55°C | Storage Temperature: | -40°C ~ + 70°C |
|---|---|---|---|
| Transport Temperature: | -50°C ~ +70°C | External Dimension: | H*W*D 1000*650*650mm |
| TEC Air Conditioner: | 400W | Fans: | DC48V |
| High Light: | DC48V Weatherproof Electrical Enclosures,TLC Weatherproof Electrical Enclosures,TLC weatherproof network enclosure |
||
Product Description
DC48V Fans Weatherproof Electrical Enclosures 0.8mm Thick Inner Plate
1. Description Of Outdoor Telecom Cabinet
One of the biggest challenges of terminating your telecommunications equipment outdoors is finding outdoor enclosures that will be able to properly withstand the elements. Temperature, moisture, ice, shock hazards, and UV damage are all potential dangers to consider before purchasing an outdoor enclosure or cabinet. On top of all that, network hardware generates excess heat on its own, meaning you might need to consider a temperature solution that manages airflow with cooling technology.
2. Selling points and Feature Of Outdoor Equipment Cabinet
- Cabinet design allows natural wind cooling through filtered vents on front door and venting under lip of rain hood
- All fixings are internal to the cabinet to provide a secure solution
-19" mounting rails front and rear
- Come with plinth for mounting on the floor ground
- Available in colors, Grey, customized colors
3. Technical Parameters
|
Item |
Type |
Technical Parameter |
|
Structure |
Dimension |
External Dimension: H*W*D 1000*650*650mm |
|
Layout |
1 compartment |
|
|
Equipment Installation Method |
19″ Data Rack Rails |
|
|
Door |
With one front door, and special lock for outdoor cabinet (support padlock) |
|
|
Material |
Galvanized steel; 1.2mm thick outer plate, 0.8mm thick inner plate |
|
|
Structure |
Welded |
|
|
Ingress Protection |
IP55 |
|
|
Temperature Control |
Cooling |
TEC air conditioner and DC48V fans |
|
Temperature |
Temperature |
Working Temperature: 40°C ~ +55°C |
|
Storage Temperature: -40°C ~ + 70°C |
||
|
Transport Temperature: -50°C ~ +70°C |
||
|
Humidity |
Relative Humidity |
5% ~ 100% |
|
Pressure |
Air Pressure |
62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 × (1±5%)W/m2 |
4. Accessories List
|
No. |
Item |
Quantity |
Unit |
Specs |
|
1 |
Outdoor Telecom Cabinet |
1 |
Set |
(1) External Dimension: H*W*D 1000*650*650mm (2) 1 compartment (3) With one front door , and special lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.2mm thick outer plate, 0.8mm thick inner plate; |
|
2 |
Auxiliary Direct Ventilation Fans |
4 |
Set |
DC48V Fans |
|
3 |
TEC |
1 |
Set |
400W |
|
4 |
Door detector |
1 |
Set |
One for controlling LED lamp, the other for open door alarm |
|
5 |
LED LAMP |
1 |
Set |
48V LED lamps |
5. Enclosure Cooling
TEC air conditioner Cooling capacity: 400W, DC48V; and DC48V fans
6. Cabinet Structure
(1) External Dimension: H*W*D 1000*650*650mm
(2) 1 compartment,
(3) With one front door , and special lock for outdoor cabinet (support padlock) ;
(4) Material: galvanized steel; 1.2mm thick outer plate, 0.8mm thick inner plate;

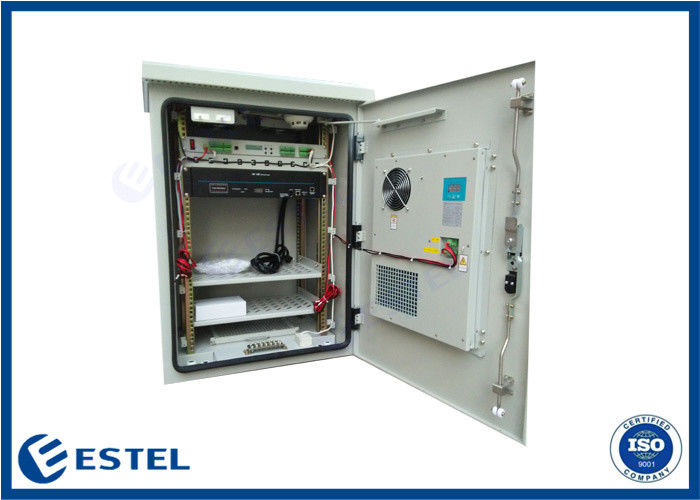

7. Installation Picture
