19 Inch Waterproof Outdoor Wall Cabinet Anti Corrosion 1200mm Height
Product Details:
Place of Origin: | Shenzhen, China (Mainland) |
Brand Name: | ESTEL |
Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
Model Number: | ET-6565120-1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
Supply Ability: | 5,000 sets per month |
Detail Information |
|||
Space: | Standard 19” Rack Rail | Access: | Front Access |
---|---|---|---|
Lock: | Anti-theft Three-point Locking System | Out Cover: | Anti-corrosion |
Standard Color: | Light Grey, RAL7035 | ||
Highlight: | 19 Inch Waterproof Outdoor Wall Cabinet,Anti Corrosion Waterproof Outdoor Wall Cabinet,19 Inch outdoor wall mounted cabinet |
Product Description
19 Inch Waterproof Outdoor Wall Cabinet Anti Corrosion 1200mm Height
1. Application
The cabinets system can support Electrical equipment,PDU,Backup batteries,monitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.
2. Features
● Heavy duty outdoor construction
● Standard 19” rack rail
● Front access
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available
3.Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Size H*W*D 1200*650*650mm |
Layout | One compartment, used for installing 19” equipment | |
Equipment Installation Method | 19” rack | |
Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
Material | Galvanized steel, single wall with thermal insulation | |
Structure | Assembled | |
Ingress Protection | IP55 | |

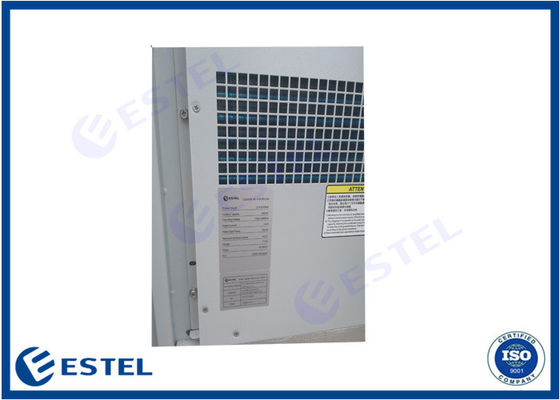

Temperature Control | Cooling | Air conditioner and fan |
Lighting | LED lamp | 220VAC |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1200× 650× 650mm. (2) One compartment: including 20U 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. (5) Floor installed. |
2 | Air Conditioner | 1 | Set |
Compressor type air conditioner Cooling Capacity: 500W Power Supply: 220VAC, 50Hz |
3 | Fan | 2 | Set | 220VAC |
4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
5 | LED Lamp | 1 | PC | 220VAC |
6 |
Environment Monitoring System |
1 | Set |
1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication 1× smoke sensor, 1× water sensor, 1× temperature & humidity sensor, 1× door sensor, |
7 | Package | 1 | Set | Wooden Case |
5. Cabinet Drawing
External Dimension H×W×D 1200×650×650mm(19”, 20U);

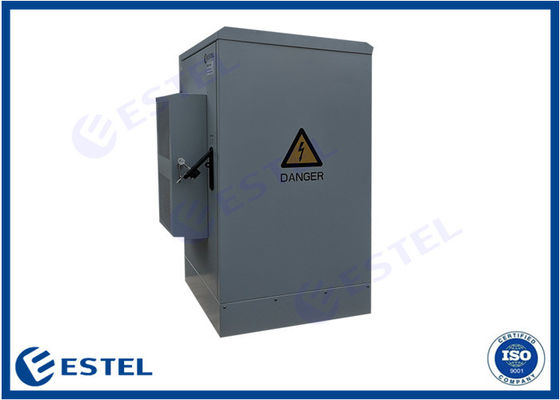

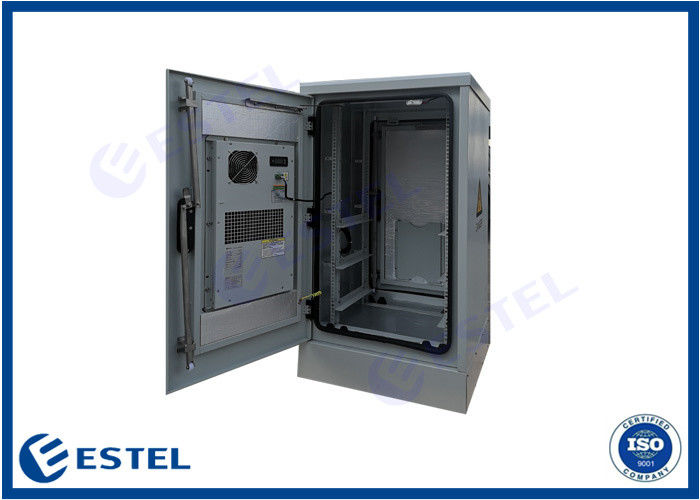

6. Cabinet Picture
7. Theft Proof Design,Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
