Anti Corrosion 16U Outdoor Rack Cabinet Powder Coating Floor Mount

Anti Corrosion 16U Outdoor Rack Cabinet Powder Coating Floor Mount

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET6565110-EQ-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Get Best Price Contact Now

Detail Information

Factory Size: 3000 Square Meters Production Lines: 5
Production Experience: 13 Years Cooling Capacity: 1000W
Cable Inlets: At The Bottom Of The Cabinet Ingress Protection: IP55
High Light:

16U Outdoor Rack Cabinet

,

Anti Corrosion Outdoor Rack Cabinet

,

16U weatherproof enclosure box

Product Description

Anti Corrosion 16U Outdoor Rack Cabinet Powder Coating Floor Mount



1. Description

The outdoor communication cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.





2. Features

Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

Professional outdoor anti-corrosion powder coating, anti-corrosion powder coating, waterproof & dustproof.

The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

There are entrance holes individually for power cable, signal cable and optical cable.

All the cables used in the cabinet are made from flame retardant materials.



3. Application Area

4G system,communication/network integrated service, access/transmission switching station, emergency communication/transmission



4. Technical Data Sheet



Model ET6565110-EQ-2
Dimension W×D×H 650×650×1100mm
19” space 16U
Door One front door
Lock Anti-theft three point lock for outdoor cabinet(support padlock)
Material Galvanized steel; single wall with thermal insulation
Color RAL7035 grey
Installation method Floor mount



Cooling

Air conditioner

Power supply: AC220V 50Hz;

Cooling Capacity: 500W

Ventilation system Two AC220V fans with one temperature controller
Illumination AC220V LED lamp
LED Lamp Switch Used for controlling led lamp on/ off
Working temperature -40°C~+75°C
Ingress Protection IP55

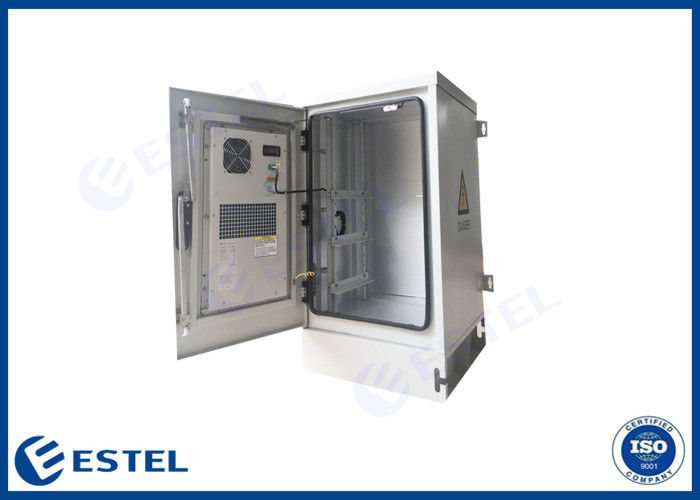

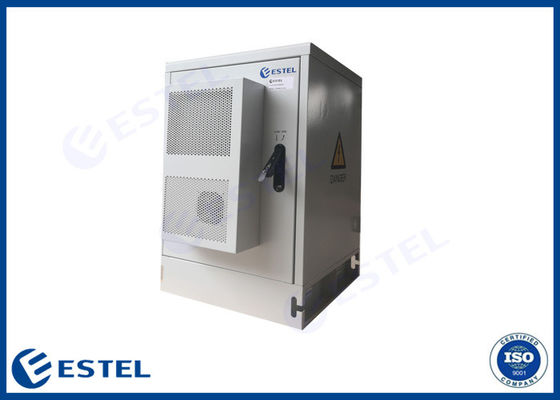

5. Cabinet Picture

Anti Corrosion 16U Outdoor Rack Cabinet Powder Coating Floor Mount 0

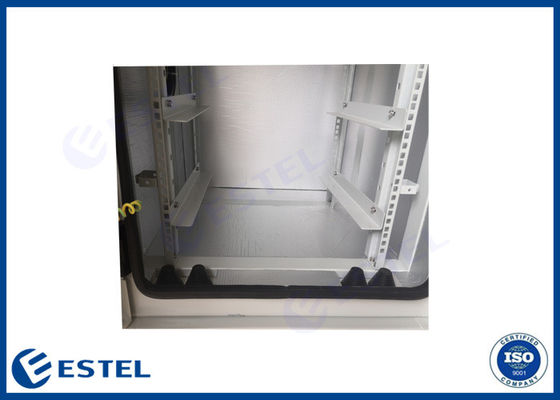

6. Cable Inlets

There are cable inlets at the bottom of the cabinet.

Anti Corrosion 16U Outdoor Rack Cabinet Powder Coating Floor Mount 1

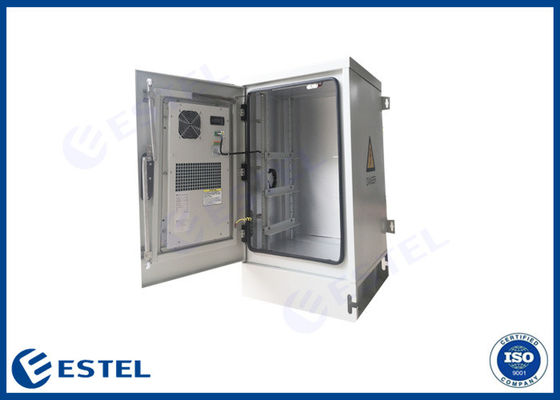

7. Cooling System Pictures

The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.

· Cooling Capacity:500W

· Power Supply: 220VAC,50Hz



Anti Corrosion 16U Outdoor Rack Cabinet Powder Coating Floor Mount 2





8. Factory Introduction

Factory Size: 3000 Square Meters

No. of Main Production Lines: 5

Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered

Production Experience: 13 Years



FAQ

Q1: Are you a manufacturer?

A: Yes, we are a experienced manufacturer with our own design and production lines.

Q2. Do you have any MOQ limit for outdoor cabinet ?

A: Low MOQ, 1pc for sample checking is available.

Q3: Can I get sample order?

A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.

Q4: Are you able to customize items with design or logo?

A: Yes, OEM & ODM is available.

Q5: How do you ship the goods and how long it will take?

A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.

Q6: How long is the product warranty ?

A: We guarantee all our products 12 months warranty.
