AC220V LED Lamp Outdoor Telecom Enclosure Floor Mount 650×650×1300 Mm
Product Details:
Place of Origin: | Shenzhen, China (Mainland) |
Brand Name: | ESTEL |
Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
Model Number: | ET6565130-EQ-3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
Supply Ability: | 5,000 sets per month |
Detail Information |
|||
Grounding Protection: | Yes | Illumination: | AC220V LED Lamp |
---|---|---|---|
Dimension: | W×D×H 650×650×1300mm | Color: | RAL7035 Grey |
Installation Method: | Floor Mount | Cooling: | Air Conditioner |
Highlight: | AC220V Outdoor Telecom Enclosure,Floor Mount Outdoor Telecom Enclosure,Floor Mount Outdoor Telecom Enclosure |
Product Description
AC220V LED Lamp Outdoor Telecom Enclosure Floor Mount 650×650×1300 Mm
1. Description
The cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
2. Features
-Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
3. Application Area
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable
4. Technical Data Sheet
Dimension | W×D×H 650×650×1300mm |
19” space | 16U |
Door | One front door |
Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
Material | Galvanized steel; single wall with thermal insulation |
Color | RAL7035 grey |
Installation method | Floor mount |
Cooling |
Air conditioner Power supply: AC220V 50Hz; Cooling Capacity: 500W |
Ventilation system | Two AC220V fans with one temperature controller |
Illumination | AC220V LED lamp |
LED Lamp Switch | Used for controlling led lamp on/ off |
Working temperature | -40°C~+75°C |
Ingress Protection | IP55 |

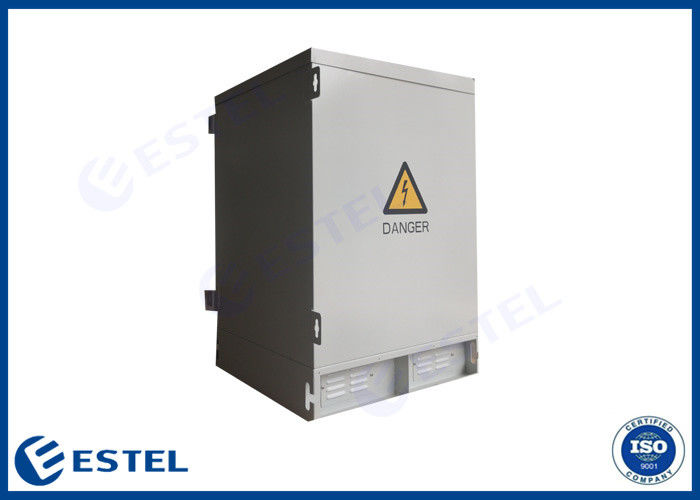

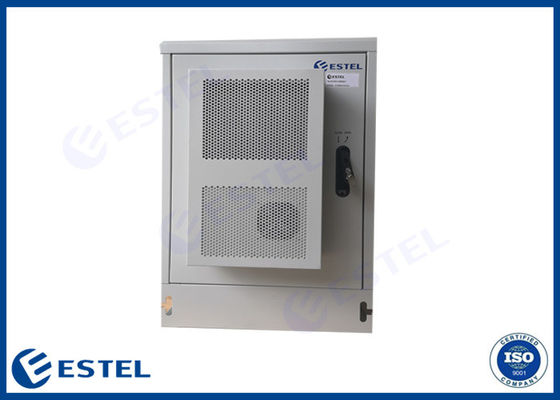

5. Cabinet Picture

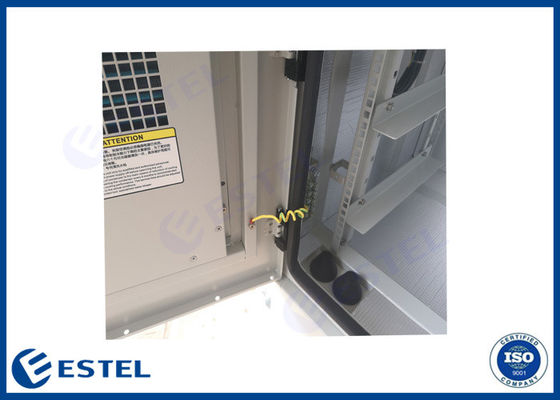

6. Grounding Protection
(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2)The metal part of the cabinet should be interconnected and be connected with grounding bar.
(3)Connection resistance between any two points is lower than 0.1Ω.
(4)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
7. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Years
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
