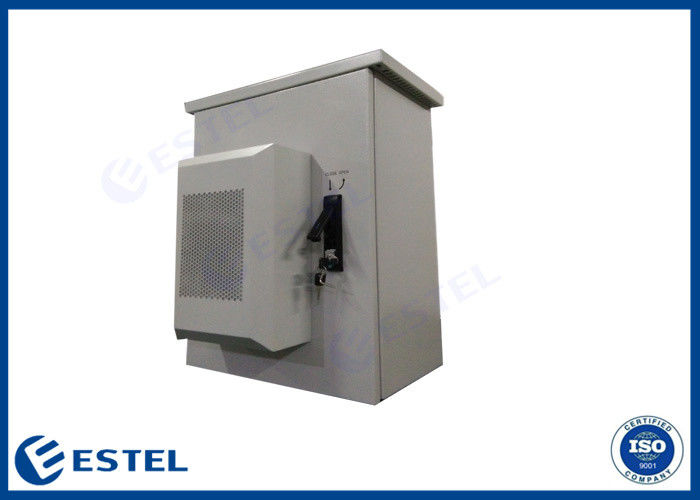

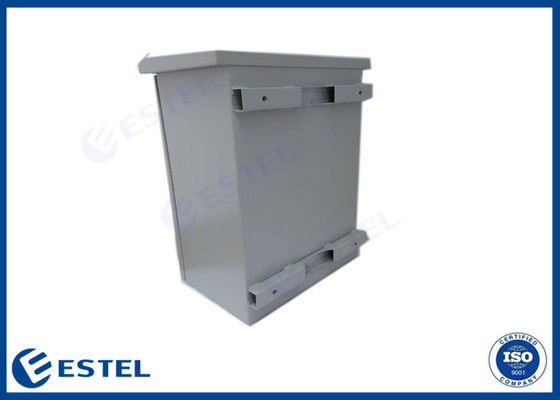

Rainproof 6U 19 Inch Outdoor Telecom Enclosure Wall / Pole Mounted
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | DDTE002B-1-O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 5,000 sets per month |
|
Detail Information |
|||
| HEIGHT: | 6U | WIDTH: | 19inch |
|---|---|---|---|
| PROOF: | Rustproof | Mounted TYPE 1: | Wall Mounted |
| Mounted TYPE 2: | Pole Mounted | IP RATE: | IP 55 |
| High Light: | 19 Inch Outdoor Telecom Enclosure,6U Outdoor Telecom Enclosure,6U waterproof network cabinet |
||
Product Description
Rainproof 6U 19 Inch Outdoor Telecom Enclosure Wall / Pole Mounted
1, Introduction
10 years of experience in the design and fabrication of electrical enclosures, Estel provide custom solutions at standard-model budgets. Our innovative electrical enclosure designs allow for efficient, cost-effective customization, ensuring that your enclosure meets your product and budget requirements. We are committed to meeting the fast turnarounds and cost-savings you need without sacrificing quality and the high performance you expect from an IP55 electrical enclosure.
2, Selling points and Feature Of Outdoor Equipment Cabinet
>>> IP55
>>> A different choice for the front door
>>> Available in different colours
>>> Available in different depths/widths as well as heights
>>> Grounding and earthing kits
>>> Includes -48VDC LED lamp for illumination.
>>> Dustproof, sunproof and rainproof, which is used in outdoor environment.
>>> Fan for cooling
>>> Anti-corrosion
3, Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
Cabinet External Size : 435mm×460mm×736mm (W×D×H), Cabinet Internal Size : 6U× 380×19” (W×D×H) |
| Layout | One compartment | |
| Equipment Installation Method | 19″ Data Rack Rails | |
| Door |
Door with Embedded structure. 3 point locking system with key-lock swing handle. |
|
| Material |
Hot dip galvanized steel,cabinet, with 20mm heat insulation between the two walls |
|
| Structure | Double walls structure | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 4 fans |
| Temperature | Temperature | Working Temperature: -40°C ~ + 60°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | ≤95% (at + 40°C) |
| Pressure | Air Pressure | 70kPa ~ 106kPa |
| Cabinet load bearing |
≥600kg
|
4, Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
Cabinet External Size : 435mm×460mm×736mm (W×D×H), Cabinet Internal Size : 6U× 380×19” (W×D×H) |
| 2 | Fan | 4 | Set | 4 set Fans |
| 3 | Package | 1 | Set | Wooden Case |
| 4 | TEC | 1 | Set | 100W |
| 5 | Door detector | 1 | Set | Door detector |
| 6 | LED LAMP | 1 | Set | DC48V LED LAMP |

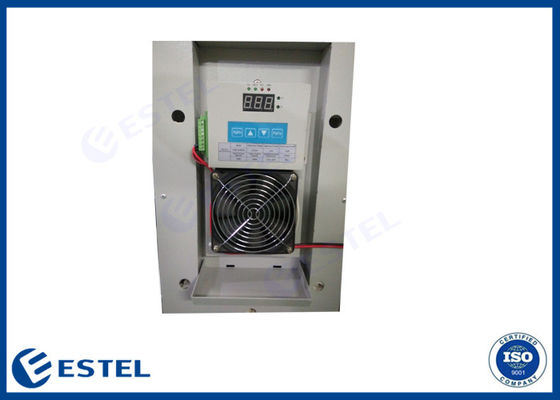

5, Enclosure Cooling
4 Pcs DC48V Fans and 1 set TEC
6, Cabinet Structure
(1) Cabinet External Size : 435mm×460mm×736mm (W×D×H),
Cabinet Internal Size : 6U× 380×19” (W×D×H)
(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.
(3) The cabinet is a double-wall cabinet, with 20mm heat insulation between the two walls
7, Installation Picture
8, Company Profile
Tianjin Estel Electronic Science and Technology Co., Ltd, located in China, is a
professional supplier of integrated outdoor telecom cabinet and temperature
control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’specific needs accurately.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
